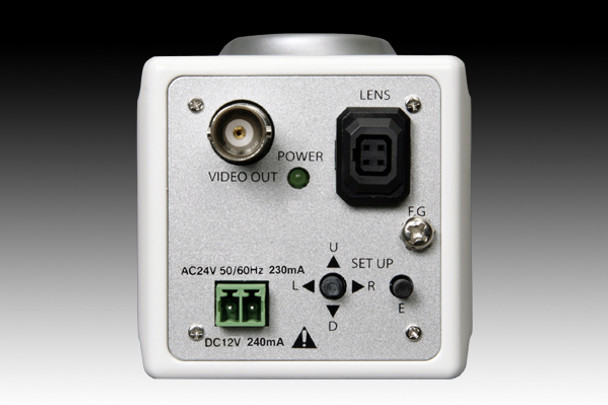

Ikegami ICD-525 700TVL Indoor Box CCTV Security Camera

Part Number: ICD-525
Write a Review
Replacement: There is no direct replacement. Ask a representative.
  • Ikegami ICD-525 700TVL Indoor Box CCTV Security Camera
  • Ikegami ICD-525 700TVL Indoor Box CCTV Security Camera

Help me pick a security camera

Technical Support Technical Support
  • Lens Size : No Lens Lens
  • Sensor Type : CCD
  • Sensor Size : 1/3" Sensor
  • Color : Gray
  • Environmental : Indoor
  • Sensor Size : 1/3"

Customers Also Viewed


Ikegami ICD-525 700TVL Indoor Box CCTV Security Camera

High Resolution Wide Dynamic Range camera designed by broadcast industry specialists to meet the stringent demands of today's CCTV Professional. This camera now comes with higher resolution- an impressive 700TVL - plus the added benefit of Wide Dynamic Range function. The result is higher sensitivity in lower light levels (when the camera will automatically switch to a Monochrome output for improved low light performance).

0.0007 lx, 700TVL High Resolution Pictures
The ICD-525 achieves a horizontal resolution of 700 TVL with 480,000 pixels, enabling reproduction of exceptionally clear and detailed images in ultra-low light conditions. The ICD-525 performs at levels aslo was 0.0007 lx minimum scene illumination performance (in monochrome mode)
52dB, High Picture Quality and Low Smear and Noise
The improved DSP circuit permits 52dB Signal-to-Noise ratio and Low Smear(-105dB). By the factor, a clear image can be captured even under strong light.
Wide Dynamic Range (WDR)
The WDR function provides clear and high quality pictures in high contrast environments by adjusting exposure- resulting in a corrected image with clear details results. The wide dynamic range is 5 levels selectable.
Auto White Balance
The ICD-525 features automatic tracking white balance control (ATW) and automatic white balance control (AWC). The result is better color tracking in difficult lighting conditions (such as sodium light).
Monitor Selection Switch
The ICD-525 features a monitor selection switch for LCD or CRT viewing.
Focus EZ Function
A button located at the back of the ICD-525 sets the auto-iris lens aperture open, even in broad daylight. This allows the installer to set an accurate focus with the best depth of field. The EZ focus button displays an adjustment bar that makes it easy to achieve perfect focus.

Key features of Ikegami ICD-525

  • 700TVL
  • No lens included, CS-Mount
  • WDR
  • 1/3" CCD
  • Motion Detection
  • Digital D/N
  • 0.0007 lx
View AllClose

Additional Information

Camera Style:
Lens Size:
No Lens
Sensor Size:
Sensor Type:
CCTV (Analog)
Vandal Proof:
