Description

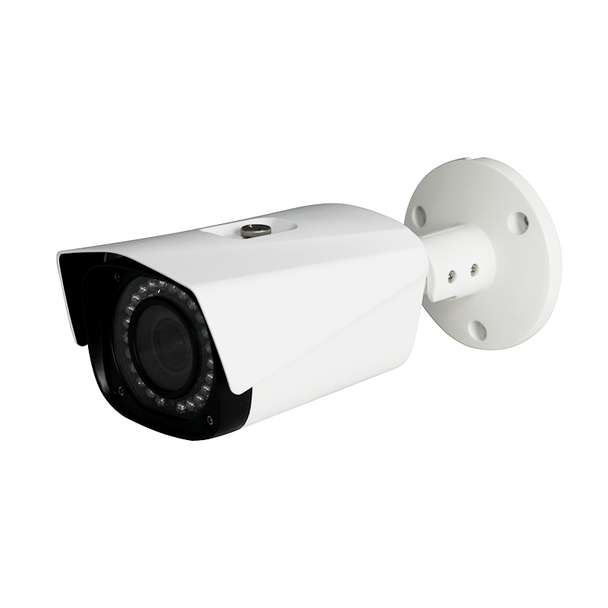

LTS LTDHCR9623 2MP IR Outdoor Bullet HD-CVI Security Camera
Key features:
- 2MP Bullet Camera
- 1920×1080P@30fps
- 2.7mm-13.5mm Vari-focal lens
- Horizontal FOV:106°-40°, Vertical FOV: 56°-26°
- CVI/Analog
- 3-Axis
- IR Range up to 197ft
- Color: 0.02 Lux@f/1.3 B/W: 0 Lux @ f/1.3
- 2D DNR, BLC
- IP67
- OSD Menu via Coxial Cable
- DC 12V
- Junction box Included
IMPORTANT
NOTE
This product is LTS Sapphire series and not compatible with some LTS products. If you have any questions, feel free to contact the customer service team at customerservice@a1securitycameras.com or call us at 214-948-1300 x 411.
Downloads
Datasheet
LTS-Security-LTDHCR9623-Datasheet-A1
Additional Information
|
Aperture:
|
F1.3
|
|
Camera Style:
|
Bullet
|
|
Certifications:
|
CE
FCC
UL Listed
|
|
Color:
|
White
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
213.0 x 90.4 x 90.4 mm (8.39 x 3.56 x 3.56 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
106
30
|
|
Focus:
|
Manual
|
|
HD CCTV Type:
|
HD-CVI
|
|
Iris:
|
Fixed Iris
|
|
Lens Mount:
|
Board Mounted
|
|
Lens Size:
|
2.7~13.5mm
|
|
Lens Type:
|
Varifocal (Manual Zoom) Lens
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
7.9 Watts
|
|
Max. FPS and Resolution:
|
30fps at 1080P
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.02 Lux
|
|
Night Vision Range (ft):
|
197
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
2D DNR
|
|
Power Supply:
|
12 VDC
|
|
Product Series:
|
LTS Lite Series
|
|
Protection Code:
|
IP67
|
|
Resolution:
|
2MP
|
|
S/N Ratio:
|
>65 dB
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/30-1/100000s
|
|
Technology:
|
HD CCTV
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
Digital WDR (D-WDR)
|
