2 Megapixel InfraRed for Night Vision Outdoor Bullet HD CCTV Security Camera, Weatherproof, 2.8mm Fixed Lens, CMHR9222WE-28F

Part Number: CMHR9222WE-28F
Write a Review
Check other similar products:
Discontinued
  • LTS CMHR9222WE-28F 2MP IR Ultra-Low Light Outdoor Bullet HD CCTV Security Camera
  • 2 Megapixel InfraRed for Night Vision Outdoor Bullet HD CCTV Security Camera, Weatherproof, 2.8mm Fixed Lens, CMHR9222WE-28F

Help me pick a security camera

Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Lens Type : Fixed Lens
  • Lens Size : 2.8mm Lens
  • Sensor Type : CMOS
  • Protection Code : IP67
  • Environmental : Outdoor

Description

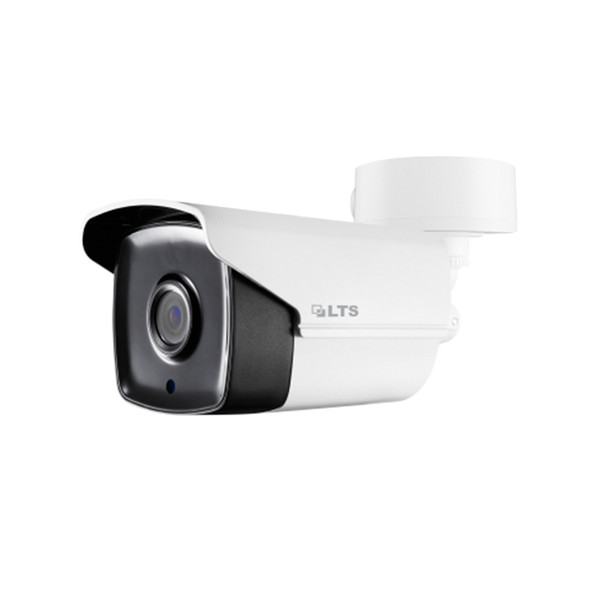

LTS CMHR9222WE-28F 2MP IR Ultra-Low Light Outdoor Bullet HD CCTV Security Camera

Key Features:

  • 2 MP high performance CMOS
  • Ultra-low light
  • 1920 × 1080 resolution
  • 2.8 mm fixed lens
  • 130 dB true WDR, 3D DNR
  • Matrix IR 2.0, smart IR, up to 197ft(60 m) IR distance
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • Weatherproof IP67
  • OSD Menu via UTC technology with Platinum DVR

Downloads

Specifications

Specifications

Camera Series Platinum Series
Camera Resolution 2MP
Camera Technology HD-TVI
Camera Housing Bullet
Featured Product No
Specifications



Camera

Image Sensor

2.0 megapixel progressive scan CMOS

Signal System

PAL/NTSC

Resolution

1920 (H) × 1080 (V)

Frame Rate

PAL: 1080p@25fps, 1080p@30fps

NTSC: 1080p@25fps, 1080p@30fps

Min. illumination

Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s

Lens

2.8 mm fixed lens

Horizontal Field of View

104° (2.8 mm)

Lens Mount

M12

Day & Night

IR cut filter

WDR (Wide Dynamic Range)

? 130 dB

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 180, Rotate: 0° to 360°

Menu

Image Mode

STD/HIGH-SAT

AGC

Support

Day/Night Mode

Auto/Color/BW (Black White)

White Balance

Auto/Manual

AE (Auto Exposure) Mode

WDR/BLC/HLC/Global

Privacy Mask

4 programmable privacy masks

Motion Detection

4 programmable motion areas

NR (Noise Reduction)

3D/2D

Language

English

Functions

Brightness, Sharpness, Mirror, Smart IR

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

General

Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)



Power Supply

12 VDC ±25%

*You are recommended to use one power adapter to supply the power for one camera.

Power Consumption

Max. 3.4 W

Ingress Protection

IP67

Material

Metal

IR Range

Up to 197ft(60 m)

Communication

Up the coax, TVI output

Dimensions

81.6 mm × 86.7 mm × 226 mm (3.2" × 3.4" × 8.9")

Weight

Approx. 560 g (1.23 lb.)



View AllClose

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Alternative SKUs:
LTCMHR9222WE-28F
Camera Style:
Bullet
Durability:
Weatherproof
Environmental:
Outdoor
Image Enhancements:
Ultra Low Light
Lens Size:
2.8mm
Lens Type:
Fixed Lens
Night Vision Range (ft):
197
Night Vision Type:
Night Vision (IR)
Noise Reduction:
3D DNR
Product Series:
LTS Platinum Series
Protection Code:
IP67
Resolution:
2MP
Sensor Type:
CMOS
Technology:
HD CCTV
Warranty:
3-year Manufacturer Warranty
Wide Dynamic Range (WDR):
WDR 130dB
