Description
LTS CMIP3322W-28M 2MP IR H.265 Outdoor Turret IP Security Camera
Key features:
- 2MP High Definition,
- Up to 1920x1080@30fps
- 2.8mm Fixed Lens
- IR Range up to 100 feet
- H.265, H.265+, H.264, H.264+ MJPEG
- True WDR 120dB
- IP67 Weatherproof
- MicroSD Slot up to 128GB
- DC 12V, PoE
- Dimensions:5.01″ x 3.78″ (Φ 127.3 x 95.9 mm)
- ONVIF
Downloads
Datasheet
lts-CMIP3322W-28M-A1.pdf
Videos
View AllClose
Specifications
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/10,000 s |
| Lens | 2.8mm |
| Lens Mount | M12 |
| Day & Night | IR cut filter with auto switch |
| DNR | 3D DNR |
| Wide Dynamic Range | True WDR 120dB |
| Angle Adjustment | Pan:0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360° |
| Compression Standard | |
| Video Compression |
Main stream: H.265/ H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps ~ 16 Mbps |
| Dual Stream | Support |
| Image | |
| Max. Resolution | 2560×1920 |
| Main Stream | 60Hz: 20fps (2560×1920), 30fps (2048x1536), 30fps(1920×1080), 30fps(1280×720) 50Hz: 20fps (2560×1920), 25fps (2048x1536), 25fps(1920×1080), 25fps(1280×720) |
| Sub Stream | 60Hz: 30fps (352×240, 640x480) 50Hz: 25fps (352×288, 640x480) |
| Others | Saturation, Brightness, Contrast adjustable by client software or web browser, Mirror, BLC, ROI, Dual Stream, Anti-Flicker, Privacy Mask |
| Network | |
| Network Storage | NAS (Support NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion Detection, Tampering Alarm, Intrusion Detection, Line Crossing Detection, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General | Password Protection, IP Address Filtering, Anonymous Access, Watermark |
| Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M Ethernet port |
| Reset | Yes |
| General | |
| Working Temperature /Humidity |
-22 °F ~ 140 °F (-30 °C ~ 60 °C) Humidity 95% or less (non-condensing) |
| Power Supply | DC 12V ± 10%, PoE (802.3af) |
| Power Consumption | Max. 5.5W (Max. 7.5W with ICR on) |
| IR Range | Up to 100ft |
| Weather Proof Ratings | IP67 |

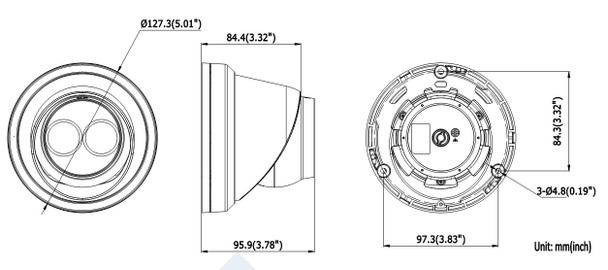

| Dimensions | 5.01″ × 3.78″ (Φ 127.3 × 95.9 mm) |
| Weight | 1.4 lb. (620 g) |
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alternative SKUs:
|
LTCMIP3322W-28M
LTCMIP33xx
|
|
Camera Style:
|
Turret
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF
|
|
Compression:
|
H.264
MJPEG
H.265
H.264 Plus
H.265 Plus
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
114
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Max. FPS and Resolution:
|
20fps at 2560 x 1920
|
|
Max. Storage Capacity:
|
128 GB
|
|
Night Vision Range (ft):
|
100
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Protection Code:
|
IP67
|
|
Resolution:
|
2MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
