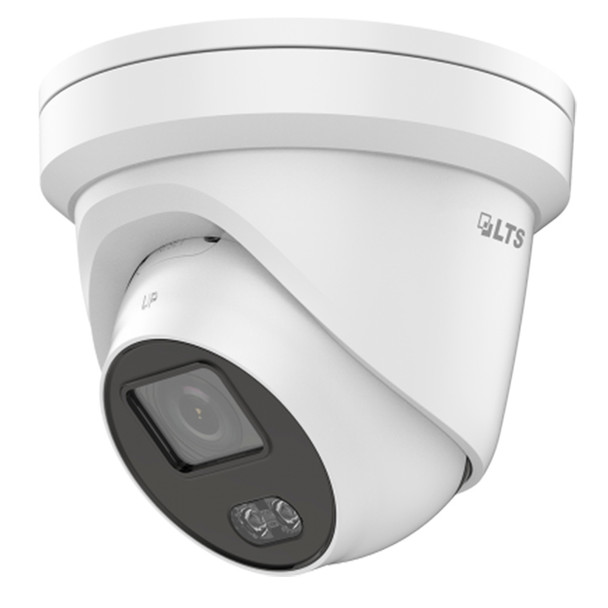

LTS CMIP3C42W-M 4MP Turret Network (IP) Security Camera Night Vision Outdoor H.265 Plus

Part Number: CMIP3C42W-M
Write a Review
  • LTS CMIP3C42W-M 4MP Turret Network (IP) Security Camera Night Vision Outdoor H.265 Plus
  • LTS CMIP3C42W-M 4MP Turret Network (IP) Security Camera Night Vision Outdoor H.265 Plus
$240.32

Help me pick a security camera

OR
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : H.265 Plus, H.264 Plus,
  • Field of View (Horizontal) : 89°Field of View
  • Max. FPS and Resolution : 24fps at 2560 x 1440
  • Lens Type : Fixed Lens
  • Lens Size : 4mm Lens
  • Protection Code : IP67
  • Environmental : Outdoor
  • Weatherproof : Yes

Description

LTS CMIP3C42W-M 4 MP Color247 Fixed Turret IP Security Camera

Key Features:

  • Max. 2560 × 1440 @24fps
  • 4 mm fixed lens, Horizontal FOV: 89°
  • H.265+, H.264+
  • 120dB WDR
  • 0.0014 @ F1.0 (1/30 s, AGC ON), 0.002 @F1.2 (1/30 s, AGC ON), 0 Lux with LED on
  • 12 VDC & PoE (802.3af, class 3)
  • Built-in micro SD/SDHC/SDXC slot, up to 128G
  • Weatherproof IP67
  • BLC/3D DNR/HLC/Defog
  • 24-hour colorful video

Downloads

View AllClose

Specifications

Camera SeriesOthers
Camera Resolution4MP
Camera TechnologyIP / Network
Camera HousingTurret
Featured ProductNo
Specifications

Camera

Image Sensor

1/1.8" Progressive Scan CMOS

Min. Illumination

0.0014 @ F1.0 (1/30 s, AGC ON), 0.002 @ F1.2 (1/30 s, AGC ON), 0 Lux with LED on

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Focal length

4 mm

Focus

Fixed

Aperture

F1.0

FOV

4 mm, horizontal FOV: 89°, vertical FOV: 46°, diagonal FOV: 107.5°

Lens Mount

M16

Auto-Iris

No

DNR

3D DNR

Wide Dynamic Range

120dB

3-Axis Adjustment

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Compression Standard



Video Compression

Main stream: H.265/H.264

Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264

H.264 Type

Baseline Profile/Main Profile/High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 8 Mbps


Max. Resolution

2560 × 1440



Main Stream

50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60Hz: 24fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)



Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)



Third stream

50Hz: 1fps (1280 × 720, 640 × 480, 640 × 360, 352 × 288, 320 × 240)

60Hz: 1fps (1280 × 720, 640 × 480, 640 × 360, 352 × 288, 320 × 240)

Image Enhancement

BLC/3D DNR/HLC/Defog

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

ROI (Region of Interest)

No

Network

Network Storage

Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR

Alarm Trigger

Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

General Function

One-key reset, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

API

ONVIF (PROFILE S, PROFILE G), ISAPI

View AllClose

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Camera Style:
Turret
Compression:
H.265 Plus H.264 Plus
Environmental:
Outdoor
Field of View (Horizontal):
89
Lens Size:
4mm
Lens Type:
Fixed Lens
Max. FPS and Resolution:
24fps at 2560 x 1440
Night Vision Range (ft):
98ft
Noise Reduction:
3D DNR
Protection Code:
IP67
Resolution:
4MP
SD Card Support:
Technology:
Network (IP)
Warranty:
3-year Manufacturer Warranty
Weatherproof:
Wide Dynamic Range (WDR):
True WDR 120dB
