LTS CMIP8342W-MDA 4MP Night Vision Outdoor Bullet IP Security Camera, 4mm Fixed Lens - LTCMIP8342W-MDA

Brand: LTS Security
Part Number: LTCMIP8342W-MDA
Write a Review
Replacement: LTS LTCMIP9342WI-28SDL 4MP Outdoor Bullet IP Security Camera with 2.8mm Lens and Built-In IR and White Light
Check other similar products:
Outdoor Security Cameras
LTS Security Cameras
LTS IP Security Cameras
LTS Platinum Series
4MP Security Cameras
IP Bullet Security Cameras
Bullet Security Cameras
LTS Bullet Security Cameras
Discontinued

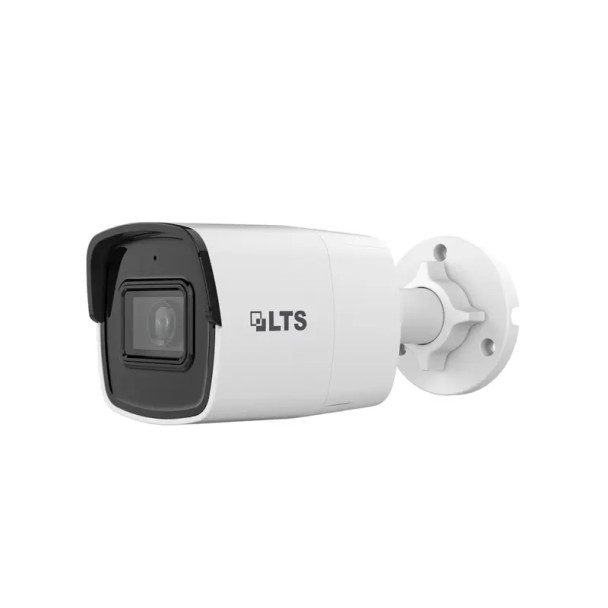

  • LTS CMIP8342W-MDA 4MP Night Vision Outdoor Bullet IP Security Camera, 4mm Fixed Lens - LTCMIP8342W-MDA - 1
  • LTS CMIP8342W-MDA 4MP Night Vision Outdoor Bullet IP Security Camera, 4mm Fixed Lens - LTCMIP8342W-MDA - 2

? Help me pick a security camera

Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : H.265, H.264, H.265 Plus, H.264 Plus,
  • Field of View (Horizontal) : 84°Field of View
  • Max. FPS and Resolution : 30fps at 2688 x 1520
  • Lens Type : Fixed Lens
  • Lens Size : 4mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/3" Sensor
  • Max. Storage Capacity : 256 GB Storage Capacity
  • Protection Code : IP67
  • Color : White
  • Environmental : Outdoor
  • Aperture : F1.6
  • Audio Support : Built-in Microphone

Related Products

LTS Security LTPTZIP772NW-X32IR

LTS PTZIP772NW-X32IR 2MP Night Vision Outdoor PTZ IP Security Camera with 32x Optical Zoom - LTPTZIP772NW-X32IR

LTPTZIP772NW-X32IR
$797.95
  • Compression : H.265, H.264, H.265 Plus, H.264 Plus, MJPEG,
  • Field of View (Horizontal) : 2.6°Field of View 50.8°Field of View
  • Max. FPS and Resolution : 30fps at 1080P
  • Lens Type : Motorized (Automatic Zoom) Lens
  • Lens Size : 4.8~153mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.8" Sensor
  • Protection Code : IP66 IK10
  • Material : ADC12
  • Environmental : Outdoor
  • Aperture : F1.6
  • Audio Support : Built-in Speaker
Free shipping over $300 Free Shipping
Network (IP) Network (IP)
2MP 2MP
656 656 Night Vision
ADC12 ADC12
LTS CMIP8042W-28MA 4MP H.265+ Bullet IP Security Camera with 2.8mm Fixed Lens, Built-in microphone - LTCMIP8042W-28MA - 1

LTS CMIP8042W-28MA 4MP H.265+ Bullet IP Security Camera with 2.8mm Fixed Lens, Built-in microphone - LTCMIP8042W-28MA

LTCMIP8042W-28MA
$131.00
  • Compression : H.265, H.265 Plus, H.264, H.264 Plus,
  • Field of View (Horizontal) : 98°Field of View
  • Lens Type : Fixed Lens
  • Lens Size : 2.8mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/3" Sensor
  • Max. Storage Capacity : 256 GB Storage Capacity
  • Protection Code : IP67
  • Color : White
  • Environmental : Outdoor
  • Aperture : F2.0
  • Audio Support : Built-in Microphone
Network (IP) Network (IP)
4MP 4MP
98 98 Night Vision
White White

Description

LTS CMIP8342W-MDA 4MP Night Vision Outdoor Bullet IP Security Camera, 4mm Fixed Lens - LTCMIP8342W-MDA

Empowered by deep learning algorithms, our technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.

Key Features:

  • High quality imaging with 4 MP resolution
  • Clear imaging against strong backlight due to 120 dB WDR technology
  • Efficient H.265+ compression technology
  • Built-in microphone for real-time audio security
  • Water and dust resistant (IP67)
  • Focus on human and vehicle targets classification based on deep learning
  • MD2.0
Replacement of: CMIP8342W-M

Downloads

Popular Search

Outdoor Security Cameras
LTS Security Cameras
LTS IP Security Cameras
LTS Platinum Series
4MP Security Cameras
IP Bullet Security Cameras
Bullet Security Cameras
LTS Bullet Security Cameras

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Alternative SKUs:
CMIP8342W-MDA
Aperture:
F1.6
Audio Compression:
G.711ulaw G.711alaw G.722.1 G.726 AAC
Audio Support:
Built-in Microphone
Built-in Features:
Built-in Analytics
Camera Style:
Bullet
Certifications:
UL Listed
Color:
White
Compatible Integration (API):
ONVIF Profile G ONVIF Profile S ISAPI SDK
Compression:
H.265 H.264 H.265 Plus H.264 Plus
Connection Type:
Wired
Day/Night:
ICR (True Day/Night) Auto Day (Color) Night (B/W)
Detect (ft):
262.46
Dimensions:
70 x 161.7 mm (2.76 x 6.37 in)
Durability:
Weatherproof
Environmental:
Outdoor
Field of View (Horizontal):
84
Identify (ft):
26.24
Iris:
Fixed Iris
LED Indicator:
Status LED
Languages:
English Spanish
Lens Mount:
M12
Lens Size:
4mm
Lens Type:
Fixed Lens
Max Power Consumption:
7 Watts
Max. FPS and Resolution:
30fps at 2688 x 1520
Max. Storage Capacity:
256 GB
Minimum Illumination (B/W):
0 lux
Minimum Illumination (Color):
0.005 Lux
Mounting:
Wall Mount
Network Interface:
1x RJ-45 10/100 Mbps
Night Vision Range (ft):
131
Night Vision Type:
Night Vision (IR)
Noise Reduction:
3D DNR
Observe (ft):
101.70
Operating Humidity:
0% to 95% (non-condensing)
Operating Temperature:
-30 °C to 60 °C (-22 °F to 140 °F)
Power Supply:
PoE (IEEE 802.3af) 12 VDC
Product Series:
LTS Platinum Series
Protection Code:
IP67
Recognize (ft):
52.49
Remote Users:
Up to 32
Reset Button:
Resolution:
4MP
SD Card Support:
SD Card Supported
Sensor Size:
1/3"
Sensor Type:
CMOS
Shutter Speed:
1/3-1/100000s
Specialized Camera Feature:
Deep-learning
Technology:
Network (IP)
Warranty:
3-year Manufacturer Warranty
Wavelength (nm):
850
Wide Dynamic Range (WDR):
True WDR 120dB
