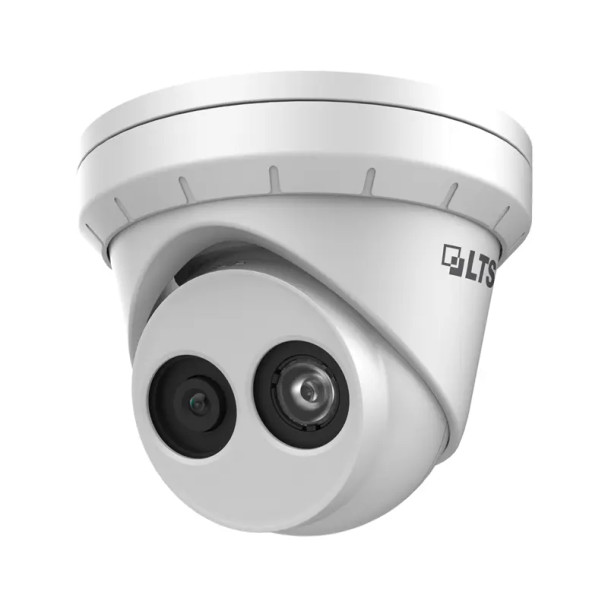

LTS LTCMIP3322W-28MDA 2MP Night Vision Outdoor Turret IP Security Camera

Brand: LTS Security
Part Number: CMIP3322W-28MDA
Write a Review
Replacement: LTS LTCMIP3342WI-28SDL 4MP Outdoor Turret IP Security Camera with 2.8mm Lens and Built-In IR and White Light
Check other similar products:
LTS Security Cameras
Outdoor Security Cameras
Turret Security Cameras
LTS IP Security Cameras
LTS Platinum Series
LTS Turret Security Cameras
2MP Security Cameras
Discontinued
  • LTS LTCMIP3322W-28MDA 2MP Night Vision Outdoor Turret IP Security Camera
  • LTS LTCMIP3322W-28MDA 2MP Night Vision Outdoor Turret IP Security Camera

? Help me pick a security camera

Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : H.265, H.264, H.265 Plus, H.264 Plus, MJPEG,
  • Field of View (Horizontal) : 107°Field of View
  • Max. FPS and Resolution : 30fps at 1080P
  • Lens Type : Fixed Lens
  • Lens Size : 2.8mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.8" Sensor
  • Protection Code : IP67
  • Color : White
  • Material : Aluminum
  • Environmental : Outdoor
  • Aperture : F1.6
  • Audio Support : Built-in Microphone

Related Products

LTS CMIP8042W-28MA 4MP H.265+ Bullet IP Security Camera with 2.8mm Fixed Lens, Built-in microphone - LTCMIP8042W-28MA - 1

LTS CMIP8042W-28MA 4MP H.265+ Bullet IP Security Camera with 2.8mm Fixed Lens, Built-in microphone - LTCMIP8042W-28MA

LTCMIP8042W-28MA
$131.00
  • Compression : H.265, H.265 Plus, H.264, H.264 Plus,
  • Field of View (Horizontal) : 98°Field of View
  • Lens Type : Fixed Lens
  • Lens Size : 2.8mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/3" Sensor
  • Max. Storage Capacity : 256 GB Storage Capacity
  • Protection Code : IP67
  • Color : White
  • Environmental : Outdoor
  • Aperture : F2.0
  • Audio Support : Built-in Microphone
Network (IP) Network (IP)
4MP 4MP
98 98 Night Vision
White White
LTS Security LTPTZIP772NW-X32IR

LTS PTZIP772NW-X32IR 2MP Night Vision Outdoor PTZ IP Security Camera with 32x Optical Zoom - LTPTZIP772NW-X32IR

LTPTZIP772NW-X32IR
$797.95
  • Compression : H.265, H.264, H.265 Plus, H.264 Plus, MJPEG,
  • Field of View (Horizontal) : 2.6°Field of View 50.8°Field of View
  • Max. FPS and Resolution : 30fps at 1080P
  • Lens Type : Motorized (Automatic Zoom) Lens
  • Lens Size : 4.8~153mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.8" Sensor
  • Protection Code : IP66 IK10
  • Material : ADC12
  • Environmental : Outdoor
  • Aperture : F1.6
  • Audio Support : Built-in Speaker
Free shipping over $300 Free Shipping
Network (IP) Network (IP)
2MP 2MP
656 656 Night Vision
ADC12 ADC12

Description

LTS LTCMIP3322W-28MDA 2MP Night Vision Outdoor Turret IP Security Camera

Empowered by deep learning algorithms, our technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.

Key Features:

  • High quality imaging with 2 MP resolution
  • Clear imaging against strong backlight due to 120 dB WDR technology
  • Efficient H.265+ compression technology
  • Built-in microphone for real-time audio security
  • Water and dust resistant (IP67)
  • Focus on human and vehicle targets classification based on deep learning

Downloads

Popular Search

LTS Security Cameras
Outdoor Security Cameras
Turret Security Cameras
LTS IP Security Cameras
LTS Platinum Series
LTS Turret Security Cameras
2MP Security Cameras

Videos

View AllClose

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Alternative SKUs:
LTCMIP33xx
Aperture:
F1.6
Audio Compression:
G.711ulaw G.711alaw G.722.1 G.726 MP2L2 MP3 AAC PCM
Audio Support:
Built-in Microphone
Built-in Features:
Built-in Analytics
Camera Style:
Turret
Color:
White
Compatible Integration (API):
ONVIF Profile S ONVIF Profile G ISAPI SDK
Compression:
H.265 H.264 H.265 Plus H.264 Plus MJPEG
Connection Type:
Wired
Day/Night:
Auto Day (Color) Night (B/W)
Dimensions:
127.3 x 95.9 mm (5.01 x 3.78 in)
Durability:
Weatherproof
Environmental:
Outdoor
Field of View (Horizontal):
107
Iris:
Fixed Iris
Lens Mount:
M12
Lens Size:
2.8mm
Lens Type:
Fixed Lens
Material:
Aluminum
Max Power Consumption:
5.5 Watts
Max. FPS and Resolution:
30fps at 1080P
Minimum Illumination (B/W):
0 lux
Minimum Illumination (Color):
0.005 Lux at F1.6 AGC On
Network Interface:
1x RJ-45 10M/100M self-adaptive Ethernet interface
Night Vision Range (ft):
98
Night Vision Type:
Night Vision (IR)
Noise Reduction:
3D DNR
Operating Humidity:
0% to 95% (non-condensing)
Operating Temperature:
-30 °C to 60 °C (-22 °F to 140 °F)
Power Supply:
PoE (IEEE 802.3af) 12 VDC
Product Series:
LTS Platinum Series
Protection Code:
IP67
Remote Users:
Up to 32
Reset Button:
Resolution:
2MP
Sensor Size:
1/2.8"
Sensor Type:
CMOS
Shutter Speed:
1/3-1/100000s
Technology:
Network (IP)
Warranty:
3-year Manufacturer Warranty
Wavelength (nm):
850
Wide Dynamic Range (WDR):
True WDR 120dB
