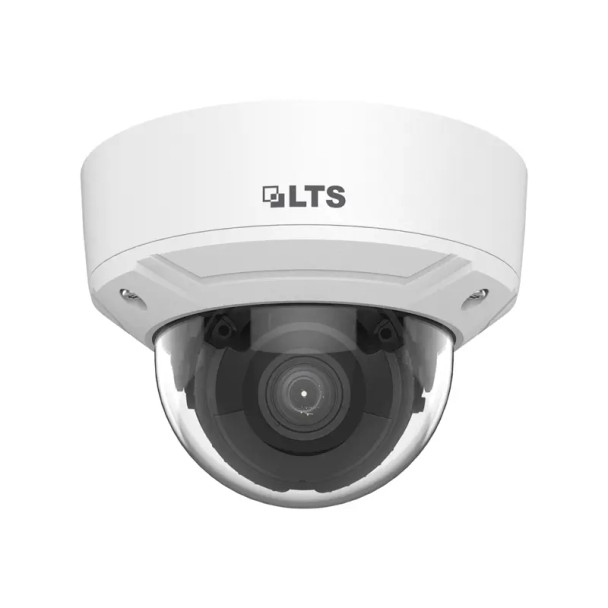

LTS LTCMIP7263W-SDZ 6MP Night Vision Outdoor Dome IP Security Camera, 4.3x Optical Zoom

Name: LTS LTCMIP7263W-SDZ 6MP Night Vision Outdoor Dome IP Security Camera, 4.3x Optical Zoom
Brand: LTS Security
SKU: LTCMIP7263W-SDZ
Price: 298.00 USD
Availability: InStock

Brand: LTS Security

Part Number: LTCMIP7263W-SDZ

Write a Review

$298.00

✅ Help me pick a security camera

Technical Support

3 Year Warranty

Key Features:

Compression : H.265, H.264, H.265 Plus, H.264 Plus, MJPEG,
Field of View (Horizontal) : 32°Field of View 106°Field of View
Max. FPS and Resolution : 20fps at 3200 x 1800
Lens Type : Motorized (Automatic Zoom) Lens
Lens Size : 2.8~12mm Lens
Sensor Type : CMOS
Sensor Size : 1/2.8" Sensor
Protection Code : IP67 IK10
Color : White
Material : Metal Plastic
Environmental : Outdoor
Sensor Size : 1/2.8"
Aperture : F1.6

Description
Compatible products
Additional Information
Q&A

Description

LTS LTCMIP7263W-SDZ 6MP Night Vision Outdoor Dome IP Security Camera, 4.3x Optical Zoom

Empowered by deep learning algorithms, our technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.

Key Features:

High quality imaging with 6 MP resolution
Motorized varifocal lens for easy installation and monitoring
Efficient H.265+ compression technology
Clear imaging against strong backlight due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Audio and alarm interface available
Water and dust resistant (IP67) and vandal-resistant (IK10)

Downloads

Datasheet LTS-Security-LTCMIP7263W-SDZ-Datasheet-A1

User Manual LTS-Security-LTCMIP7263W-SDZ-User-Manual-A1

Quick Start Guide LTS-Security-LTCMIP7263W-SDZ-Quick-Start-Guide-A1

Firmware LTS-Security-LTCMIP7263W-SDZ-Firmware-A1

Popular Search

LTS Security Cameras

Outdoor Security Cameras

LTS IP Security Cameras

LTS Platinum Series

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Alarm Input:	1 Channel
Alarm Output:	1 Channel
Aperture:	F1.6
Audio Capability:	Two-Way Audio
Audio Compression:	MP2L2 MP3 AAC PCM G.711ulaw G.711alaw G.722.1 G.726
Audio Input:	1x Channel
Audio Output:	1x Channel
Built-in Analytics:	Built-in Analytics
Camera Style:	Dome
Color:	White
Compatible Integration (API):	ONVIF Profile G ONVIF Profile S ISAPI SDK
Compression:	H.265 H.264 H.265 Plus H.264 Plus MJPEG
Connection Type:	Wired
Day/Night:	Auto Day (Color) Night (B/W)
Dimensions:	153.3 X 111.6 mm (6.1 x 4.4 in)
Durability:	Vandal Proof Weatherproof
Environmental:	Outdoor
Field of View (Horizontal):	32 106
Iris:	Fixed Iris
LED Indicator:
Languages:	English Spanish
Lens Mount:	M14
Lens Size:	2.8~12mm
Lens Type:	Motorized (Automatic Zoom) Lens
Material:	Metal Plastic
Max Power Consumption:	12.5 Watts
Max. FPS and Resolution:	20fps at 3200 x 1800
Minimum Illumination (B/W):	0 lux
Minimum Illumination (Color):	0.005 Lux at F1.6 AGC On
Network Interface:	1x RJ-45 10M/100M self-adaptive Ethernet interface
Night Vision Range (ft):	131
Night Vision Type:	Night Vision (IR)
Noise Reduction:	3D DNR
Operating Humidity:	0% to 95% (non-condensing)
Operating Temperature:	-30 °C to 60 °C (-22 °F to 140 °F)
Optical Zoom:	4.3x Optical Zoom
Power Supply:	PoE (IEEE 802.3af) 12 VDC
Product Series:	LTS Platinum Series
Protection Code:	IP67 IK10
Remote Users:	Up to 32
Reset Button:
Resolution:	6MP
S/N Ratio:	>52 dB
SD Card Support:	SD Card Supported
Sensor Size:	1/2.8"
Sensor Type:	CMOS
Shutter Speed:	1/3-1/100000s
Special Technologies:	MatrixIR 2.0 Motion 2.0
Technology:	Network (IP)
Warranty:	3-year Manufacturer Warranty
Wavelength (nm):	850
Wide Dynamic Range (WDR):	True WDR 120dB
