Description

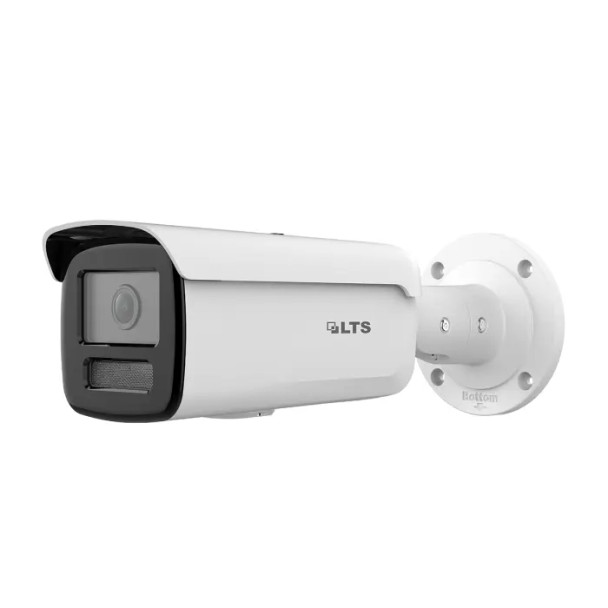

LTS LTCMIP9C42WI-28MD 4MP Outdoor Bullet IP Security Camera with 2.8mm Lens and Built-In IR and White Light
The LTS LTCMIP9C42WI-28MD is a 4MP outdoor bullet-style IP security camera designed to provide high-resolution imaging and smart detection features in all lighting conditions. Featuring a 2.8mm fixed lens, it offers a wide 100.2° horizontal field of view. The camera utilizes Smart Hybrid Light technology, combining infrared and white light illumination with up to 60 meters of range, ensuring clear visibility in low-light or complete darkness. With a large F1.0 aperture, it delivers superior performance in ultra-low light environments. The camera supports deep learning functions such as face capture and human/vehicle classification, enhancing detection accuracy. Built in a metal IP67-rated enclosure, it is suitable for outdoor installations in harsh weather conditions.
Key Features:
- 4MP resolution (2688 × 1520); delivers high-definition video at up to 30fps
- 2.8mm fixed lens; offers a 100.2° horizontal field of view for wide-area coverage
- F1.0 super-aperture; enables full-color performance in extremely low-light conditions
- Smart Hybrid Light; includes IR and white light with a range of up to 60 meters
- Face capture and AI-based human and vehicle detection; improve event filtering
- 120dB Wide Dynamic Range; ensures image detail in backlit scenes
- 3D Digital Noise Reduction and backlight/highlight compensation; improve clarity in complex lighting
- Built-in microSD card slot; supports edge storage up to 512GB
- H.265+, H.265, H.264+, and H.264 compression; reduces bandwidth and storage use
- IP67-rated metal housing; provides protection against dust, rain, and harsh environments
- Power input via 12V DC or PoE (IEEE 802.3af); supports flexible installation
- Operating temperature range from -30°C to 60°C; suitable for demanding outdoor conditions
- ONVIF Profiles S, G, and T compliant; ensures compatibility with leading VMS and NVR platforms
Downloads
Additional Information
|
Aperture:
|
F1.0
|
|
Camera Style:
|
Bullet
|
|
Compression:
|
H.264
H.264 Plus
H.265
H.265 Plus
MJPEG
|
|
Day/Night:
|
|
|
Dimensions:
|
286.7 mm × 93.3 mm × 91.2 mm (11.3" × 3.7" × 3.6")
|
|
Durability:
|
Weather Resistant
|
|
Environmental:
|
Outdoor
|
|
Iris:
|
Fixed Iris
|
|
Lens Size:
|
2.8mm
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Protection Code:
|
IP67
|
|
Resolution:
|
4MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Storage Humidity:
|
0% to 95% (non-condensing)
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
