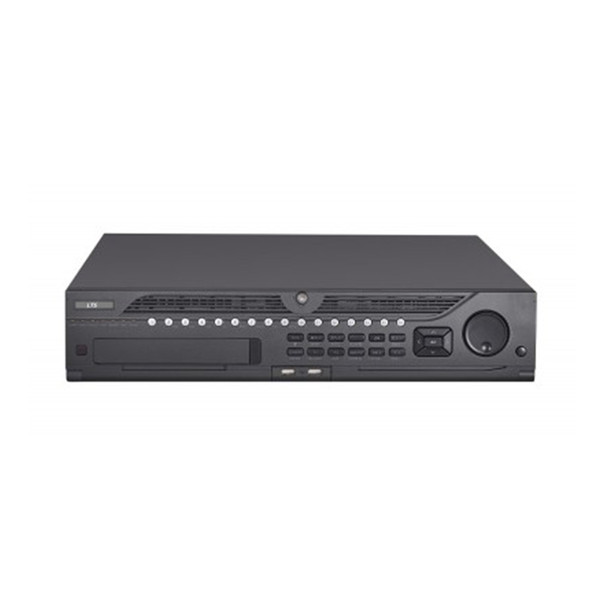

LTS LTD9232K-ST Platinum Enterprise Level 32 Channel 4K DVR with 32CH IP Input 2U

Write a Review
SKU:
LTD9232K-ST
Maximum Purchase:
1000 units
$3,062.90
Frequently bought together:

Description

LTS LTD9232K-ST Platinum Enterprise Level 32 Channel 4K DVR with 32CH IP Input 2U

Key Features:

  • TVI-P DVR 32ch (4K/8MP TVI) + 32IP(4K)
  • Alarm/Audio/VGA, HDMIx2 Ul
  • H.265+, 8xHDD
  • 4K IPC input, 4k output
  • 8 SATA Ports
  • Up to 8 TB for each port
  • RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
View AllClose

Specifications

Recorder SeriesProfessional
Recorder Channel32-Channel
Recorder Case2U Case
Recorder TechnologyDVR
Featured ProductNo
Specifications
Video / Audio input
Video compressionH.265+/H.265/H.264 Zip+/H.264
HD-TVI video input32 CH
HDTVI input8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input4MP, 1080p25, 1080p30, 720p25, 720p30
Audio compressionG.711u
Audio input16-ch, RCA (2.0 Vp-p, 1 KΩ)
Video / Audio output
HDMI/VGA output

HDMI1/VGA: 1 -ch , 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz

HDMI2: 1-ch, 4K(3840 × 2160)/30Hz, 2K(2560 × 1440)/60Hz, 1920× 1080/60Hz, 1280 × 1024/60Hz,

1280 × 720/60Hz, 1024 × 768/60 Hz

CVBS output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Frame rateMain stream: 8 MP@8fps/5MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p@25fps(P)/30fps(N)
Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
Video bit rate32 Kbps-10 Mbps
Audio output2-ch, RCA (Linear, 1KΩ)
Audio bit rate64 Kbps
Dual-streamSupport
Stream typeVideo, Video & Audio
Synchronous playback16 CH
Network
Remote connection128
Network protocolsTCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, IP Portal, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard disk
SATA8 SATA
CapacityUp to 8TB capacity for each disk
External interface
Network interface2, RJ45 10M/100M/1000Mself-adaptive Ethernet interface
Serial interfaceRS-232, RS-485 (full-duplex), Keyboard
USB portFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm in / out16 / 8
General
Power supplyAC 100 to 240V
Power Consumption≤ 74 W
Working temperature-10 °C~+55°C(14°F ~ 131 °F)
Working humidity10% ~ 90%
Dimension 442 × 470 × 90 mm (17.4 × 18.5 × 3.5 inch)
Weight≤10 kg (22.0 lb)
View AllClose

Additional Information

Manufacturer:
LTS Security
Rack Unit (U):
2U
Product Type:
Recorders
Compression:
H.265+
Hard Drive Ports:
8 SATA Ports
Recorder Technology:
Digital Video Recorder (DVR)
Pre-Installed Storage (Recorders):
8 TB
Recorder Channel Capacity:
32 Channel
RAID:
RAID 0
RAID:
RAID 1
RAID:
RAID 5
RAID:
RAID 6
RAID:
RAID 10
