Description

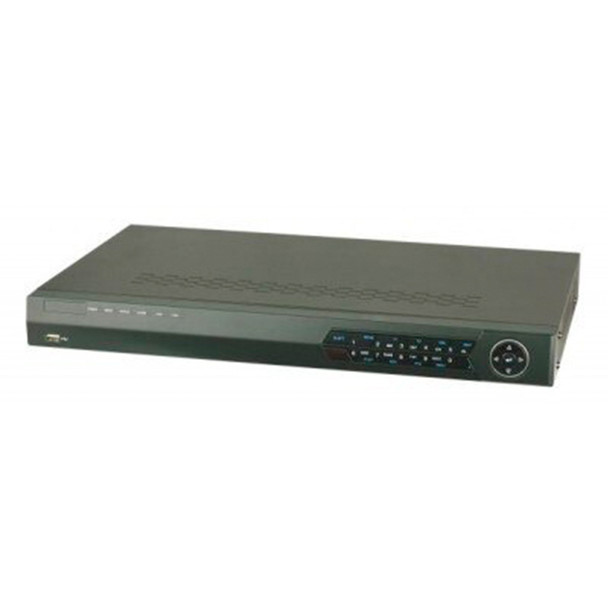

LTS LTN7616-P8 16 Channel Network Video Recorder - No HDD included, 8 PoE Ports
Third-party network cameras supported,Up to 5 Megapixels resolution recording,HDMI and VGA output at up to 1920×1080P,HDD quota and group management,8 independent network interfaces for built-in switch.
Key Features:
- Third-party network cameras supported
- Up to 5 Megapixels resolution recording
- HDMI and VGA output at up to 1920×1080P
- HDD quota and group management
- 8 independent network interfaces for built-in switch
Specifications
Built-in switch network interface
8 independent 10 /100 Mbps Ethernet interfaces |
Serial interface |
1 RS-485 half-duplex interface |
USB interface |
2 × USB 2.0 |
General |
Power supply |
100 ~ 240 VAC, 47 ~ 63 Hz, 3A |
Power Consumption |
? 15 W (without hard disk) |
Working temperature |
-10 °C ~ +55 °C(14°F~131°F) |
Working humidity |
10% ~ 90% |
Chassis |
19-inch rack-mounted 1U chassis |
Dimension |
445 × 290 × 45mm (17.5× 11.4 × 1.8) |
Weight |
? 2 Kg ( 4.4Lbs,without hard disk) |
