Description

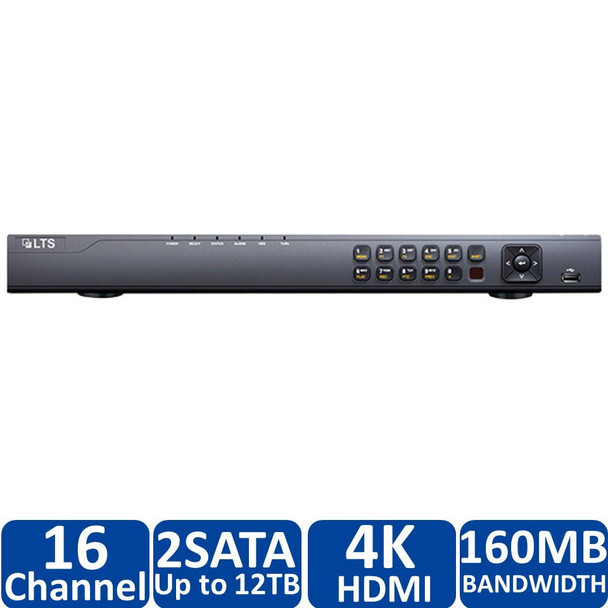

LTS LTN8616-P16 16 Channel Professional Plus Network Video Recorder
Key features:
- Quad-core 16 Channel Network Video Recorder
- HDD Options available
- Support Live View, Storage, and Playback up to 12.3MP IP Camera
- 160MB Input Bandwidth
- 16 Built-in PoE
- 4K (3840x2160) HDMI, VGA, CVBS Video Output
- 2 SATA up to 12TB HDD
- 4 POS via TCP/IP
- Support 6MP/12MP Fisheye
- Support H.264/H.264 Zip+, H.265 Ready
Replacement of:
LTN8616D-P16
Downloads
Datasheet
LTN8616-P16 Datasheet
Quick Start Guide
LTN8616-P16 Quick Start Guide
User Manual
LTN8616-P16 User Manual
Firmware
LTS-Security-LTN8616-P16-Firmware-A1
Popular Search
Videos
View AllClose
Specifications
| Video/Audio Input | |
| IP Video Input | 16-CH, Up to 12MP Resolution |
| Two-Way Audio Input | 1-CH, RCA (2.0 Vp-p, 1kΩ) |
| Network | |
| Incoming Bandwidth | 160Mbps |
| Outgoing Bandwidth | 256Mbps |
| Remote Connection | 128 |
| Video/Audio Output | |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| HDMI Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 ×1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output | 1-ch, resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| CVBS Output | 1-ch |
| Audio Output | 1-CH, RCA (Linear, 1kΩ) |
| Decoding | |
| Live View/ Playback Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-CH |
| Capability | 4-ch @ 4K, or 16-ch @1080p |
| Hard Disk | |
| SATA | 2 SATA Interfaces for 2 HDDs |
| Capacity | Up to 8TB for Each Disk |
| External Interface | |
| Network Interface | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm In/Out | 4/1 |
| PoE | |
| Interface | 16 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Max. Power | ≤200W |
| Supported Standard | IEEE 802.3 af/at |
| General | |
| Power Supply | 100~240V AC |
| Consumption | ≤15W |
| Working Temperature | +14ºF ~ +131 ºF(-10ºC ~ +55ºC) |
| Working Humidity | 10% - 90% |
| Casing | 19-Inch Rack-Mounted 1U Casing |
| Dimension | 380 × 315× 52 mm (15" × 12.4" × 2.0") |
| Weight | ≤8.8lb (4Kg) |
Additional Information
|
4K Support:
|
4K Supported
|
|
Alarm Input:
|
4 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Audio Capability:
|
Two-way Audio
|
|
Audio Input:
|
1x RCA
|
|
Channel Capacity:
|
16 Channels
|
|
Color:
|
Black
|
|
Compression:
|
H.265
H.264 Plus
H.264
|
|
Dimensions:
|
380 x 315 x 52 mm (15 x 12.4 x 2 in)
|
|
Hard Drive Ports:
|
2 SATA Ports
|
|
Max. Incoming Bandwidth:
|
160Mbps
|
|
Max. Recording Resolution:
|
12MP (4K)
|
|
Max. Storage Capacity:
|
12 TB
|
|
Network Interface:
|
1x RJ-45 1000 Mbps Port
|
|
Number of PoE Ports:
|
16 PoE Ports
|
|
Outgoing Bandwidth:
|
256 Mbps
|
|
PoE Standards:
|
IEEE 802.3af
|
|
Power Supply:
|
100 to 240 V AC
|
|
Pre-Installed Storage:
|
No HDD included
|
|
Product Series:
|
LTS Platinum Professional Plus Series
|
|
Rack Unit (U):
|
1U
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
|
Remote Users:
|
Up to 128
|
|
Synchronous Playback:
|
16 Channel
|
|
USB Interface:
|
1x USB 2.0
1x USB 3.0
|
|
Video Output:
|
1x CVBS
1x HDMI
1x VGA
|
|
Warranty:
|
3-year Manufacturer Warranty
|
