Description

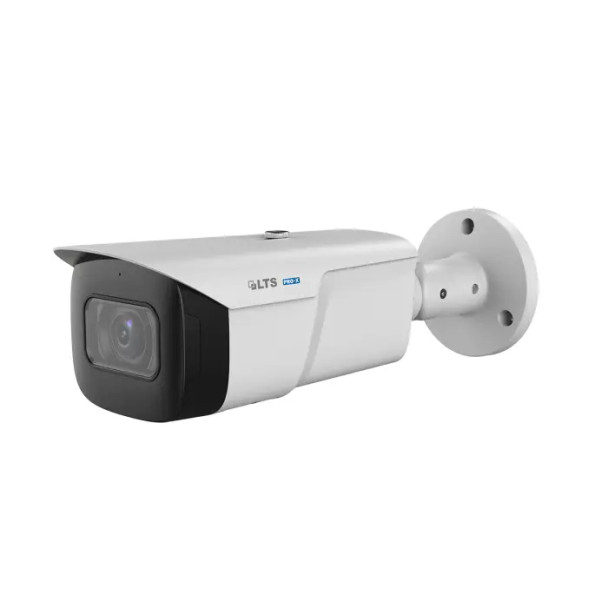

LTS LXIP8743W-SDZ 4MP Outdoor Bullet IP Security Camera with 2.7-13.5mm Lens and Built-In IR
The LTS LXIP8743W-SDZ delivers professional-grade 4MP surveillance with advanced Pro-X intelligent capabilities. This outdoor bullet camera features a motorized 2.7-13.5mm varifocal lens providing flexible coverage from 104° to 27° horizontal field of view. The Smart Motion Detection 2.0 technology specifically focuses on persons and vehicles, dramatically reducing false alarms while ensuring critical security events are captured.
Engineered for demanding outdoor applications, this camera combines IP67 weatherproof protection with superior low-light performance. The 1/3" Starlight CMOS sensor with 120dB True WDR captures detailed footage even in challenging lighting conditions, while the Matrix IR LED system provides illumination up to 200 feet for exceptional night vision capabilities.
Advanced intelligent analytics include tripwire and intrusion detection with accurate classification of vehicles and persons using AI algorithms. The camera supports up to 256GB microSD storage for local backup, includes comprehensive audio and alarm I/O interfaces, and offers flexible power options with 12VDC or PoE support. Professional features like smart encoding, privacy masking, and ONVIF compliance ensure seamless integration with existing security infrastructures.
Key Features:
- 4MP (2688 × 1520) resolution at 30fps; provides ultra-high definition surveillance footage
- Motorized 2.7-13.5mm varifocal lens; enables remote zoom adjustment for optimal coverage
- Motion Detection 2.0 with human and vehicle identification; reduces false alarms and improves security response
- 120dB True WDR with 3D noise reduction; ensures clear images in challenging lighting conditions
- IP67 weatherproof protection; guarantees reliable outdoor performance in harsh environments
- Matrix IR LED illumination up to 200 feet; provides exceptional night vision range
- Smart VCAs using AI algorithms; enables intelligent tripwire and intrusion detection
- Up to 256GB microSD storage support; provides comprehensive local backup recording
- Audio and alarm I/O interfaces; enables complete security system integration
Downloads
Additional Information
Aperture:
|
F1.5
|
Camera Style:
|
Bullet
|
Compression:
|
MJPEG
H.264
H.265
|
Day/Night:
|
|
Dimensions:
|
11.5" x 3.7" x 3.4"
|
Lens Size:
|
2.7-13.5mm
|
Lens Type:
|
Motorized Varifocal
|
Max Power Consumption:
|
9.8 Watts
|
Night Vision Range (ft):
|
200
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
Protection Code:
|
IP67
|
Resolution:
|
4MP
|
SD Card Support:
|
|
Sensor Size:
|
1/3"
|
Sensor Type:
|
CMOS
|
Storage Temperature:
|
-40°C to +60°C (-40°F to +140°F)
|
Technology:
|
Network (IP)
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
