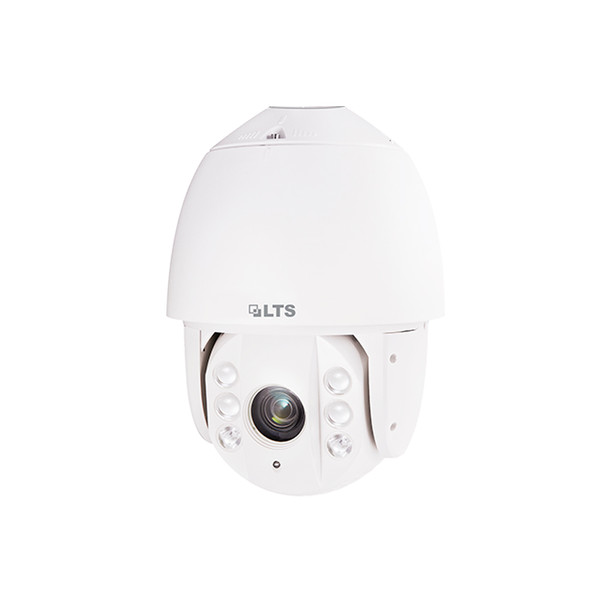

LTS PTZIP772X32WIR 2.1MP IR H.265 Outdoor High Speed PTZ Dome IP Security Camera

LTS PTZIP772X32WIR 2.1MP IR H.265 Outdoor High Speed PTZ IP Security Camera

Brand: LTS Security

Part Number: PTZIP772X32WIR

Write a Review

Description
Videos
Specifications
Compatible products
Additional Information

Description

LTS PTZIP772X32WIR 2.1MP IR H.265 Outdoor High Speed PTZ IP Security Camera

PTZIP772X32WIR 2MP 32x Network IR Speed Dome adopts 1/2.8" progressive scan CMOS chip. With the 32x optical zoom lens, the camera offers more details over expansive areas.

This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc.

Key features:

2.1MP, 60fps at 1080p
1/2.8" CMOS
4.8~153 mm Motorized Lens, 32x Optical Zoom
H.265 Compression
Smart IR, IR range up to 492ft
3D DNR, HLC, BLC
True WDR, 120dB
True Day/Night
ONVIF
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Weatherproof IP66
Dimensions: Φ 8.66 x 13.91 in (Φ 220 x 353.4 mm)
24 VAC and Hi-PoE, Max.: 40 W (Max. 14 W for IR)

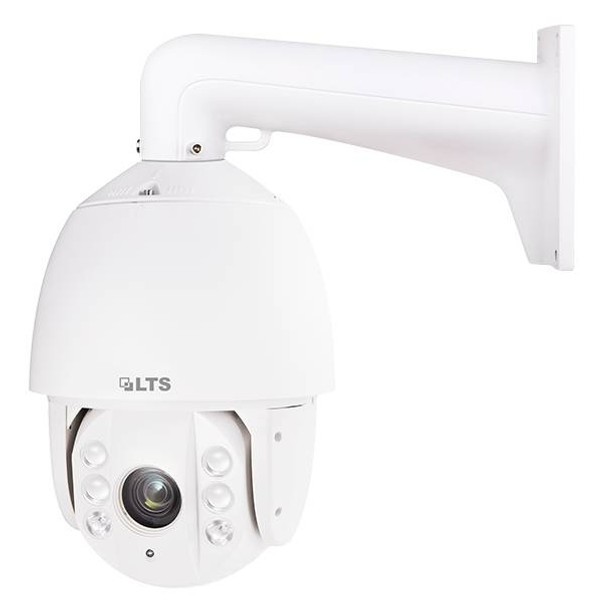

Note:Wall Mount Bracket (LTB762N) Included and High PoE Injector (60W) Sold Separately.

Downloads

Datasheet lts-PTZIP772X32WIR_SPEC-A1.pdf

View AllClose

Videos

View AllClose

Specifications

Camera Series

Platinum Series

Camera Resolution

2.1MP / 1080P

Camera Technology

IP / Network

Camera Housing

PTZ

Featured Product

Specifications

Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Effective Pixel	1920(H) ×1080(V)
Min. Illumination	Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
White Balance	Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC	Auto / Manual
WDR	120dB
Digital Noise Reduction	3D DNR
Backlight compensation	BLC
Shutter Speed	1 ~ 1/30,000s
Day & Night	IR Cut Filter
Digital zoom	16X
Focus Mode	Auto / Semiautomatic / Manual
Privacy Mask	24 programmable privacy masks
Lens
Focal Length	4.8 mm to 153 mm, 32× optical
Zoom Speed	Approx. 5.6 s (optical lens, wide-tele)
Angle of View	Horizontal field of view: 55.6° to 2.04° (Wide-Tele) Vertical field of view: 32.4° to 1.14° (Wide-Tele) Diagonal field of view: 63° to 2.34° (Wide-Tele)
Min. Working Distance	10 ~1500mm (Wide-Tele)
Aperture Range	F1.2 ~ F4.4
Pan and Tilt
Pan / Tilt Range	Pan: 360° endless; Tilt: -15° ~ 90° (Auto Flip )
Pan / Tilt Speed	Pan manual speed: 0.1° ~ 160°/s, Pan preset speed: 240°/s Tilt manual speed: 0.1° ~ 120°/s, Tilt preset speed: 200°/s
Proportional Zoom	Support
Number of Preset	300
Patrol Scan	8 patrols, up to 32 presets per patrol
Pattern Scan	4 pattern scans, record time over 10 minutes for each scan
Power-off Memory	Support
Park Action	Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D Positioning	Support
PTZ Position Display	Support
Scheduled Task	Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
Preset freezing	Support
Local Video and Audio
Network Interface	1 RJ45 10 M/100 M Ethernet, Hi-PoE
Audio input / putput	1-ch audio input and 1-ch audio output
Alarm Interface	2-ch alarm input and 1-ch alarm input
Network
Max. Image Resolution	1920×1080
Frame Rate	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Image Compression	Main Stream: H.265+/H.265/H.264+/H.264
ROI encoding	Main stream, sub-stream, and third stream respectively support four fixed areas.
SVC	Support
Audio Compression	G.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View	Up to 20
API	Open-ended, support ONVIF, ISAPI, and CGI, support Third-Party Management Platform
SD Memory Card	Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
User/Host Level	Up to 32 users, 3 levels: Administrator, Operator and Use
Security Measures	User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Auto-Tracking	Support
IR
IR Distance	Up to 492ft(150 m)
Smart IR	Support
General
Working Temperature /Humidity	-22°F ~149°F (-30°C ~ 65°C) 90% or less
Power Supply	24 VAC and Hi-PoE, Max.: 40 W (Max. 14 W for IR)
Protection Level	IP66 Standard; TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension	Φ 8.66" × 13.91"(Φ 220 mm × 353.4 mm )
Weight	Approx. 9.92Ibs (4.5Kg)

View AllClose

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Camera Style:	PTZ
Color:	White
Compression:	H.265 H.265 Plus H.264 H.264 Plus
Day/Night:	True Day/Night
Environmental:	Outdoor
Field of View (Horizontal):	2 55
Key Features:	Ultra Low-light ONVIF Night Vision (IR) Mobile App Support (IOS, Android)
Lens Size:	4.8~153mm
Lens Type:	Motorized (Automatic Zoom) Lens
Max. FPS and Resolution:	60fps at 1080P
Night Vision Range (ft):	492ft
Optical Zoom:	32x Optical Zoom
Protection Code:	IP66
Resolution:	2.1MP
SD Card Support:
Sensor Size:	1/2.8"
Sensor Type:	CMOS
Technology:	Network (IP)
Vandal Proof:
Warranty:	2-year Manufacturer Warranty
Weatherproof:
Wide Dynamic Range (WDR):	True WDR 120dB
