Description

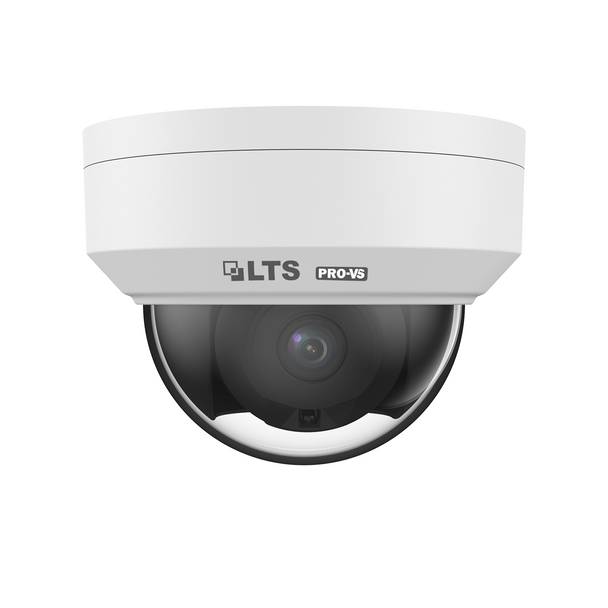

LTS VSIP7182W-MDA 8MP 4K Night Vision Outdoor Dome IP Security Camera with Built-in Mic and 4mm Fixed Lens, NDAA Compliant
Key Features:
- High quality image with 8MP, 1/2.7"CMOS sensor
- 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- High image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IK10 vandal resistant
- IP67 protection
- Support PoE power supply
- 3-Axis
- Motion 2.0 with Human & Vehicle Detection
Downloads
Quick Start Guide
LTS-Security-VSIP7182W-28MDA-Quick-Start-Guide-A1
User Manual
LTS-Security-VSIP7182W-28MDA-User-Manual-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Analytics:
|
Vehicle Detection
|
|
Aperture:
|
F1.6
|
|
Audio Capability:
|
One-way Audio
|
|
Audio Compression:
|
G.711
|
|
Audio Support:
|
Built-in Microphone
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
CE
FCC
UL Listed
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
API
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
SDK
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.264
H.265
MJPEG
Ultra 265
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
Day (Color)
ICR (True Day/Night)
Night (B/W)
|
|
Dimensions:
|
111 x 94 mm (4.4 x 3.7 in)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
91.2
|
|
Image Settings:
|
Corridor Format
|
|
Iris:
|
Fixed Iris
|
|
Lens Mount:
|
M12
|
|
Lens Size:
|
4mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
4.5 Watts
|
|
Max. FPS and Resolution:
|
20fps at 3840 x 2160
30fps at 3072 x 1728
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.005 Lux
|
|
Mounting:
|
Pole Mount
Pendant Mount
Wall Mount
|
|
Network Interface:
|
1x RJ-45 10/100 Base-TX Ethernet
|
|
Night Vision Range (ft):
|
98
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
2D DNR
3D DNR
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
LTS Pro-VS Series
|
|
Protection Code:
|
IP67
IK10
|
|
Remote Users:
|
Up to 32
|
|
Reset Button:
|
|
|
Resolution:
|
8MP (4K)
|
|
S/N Ratio:
|
>56 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1-1/100000s
|
|
Special Technologies:
|
LTS Motion 2.0
|
|
Storage Humidity:
|
0% to 95% RH (non-condensing)
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Surge Protection:
|
4 kV
|
|
Technology:
|
Network (IP)
|
|
Wavelength (nm):
|
850
|
|
Web Browser:
|
Chrome 57.0 or above
Edge 16 or above
Firefox 58.0 or above
Internet Explorer 9 or above
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
