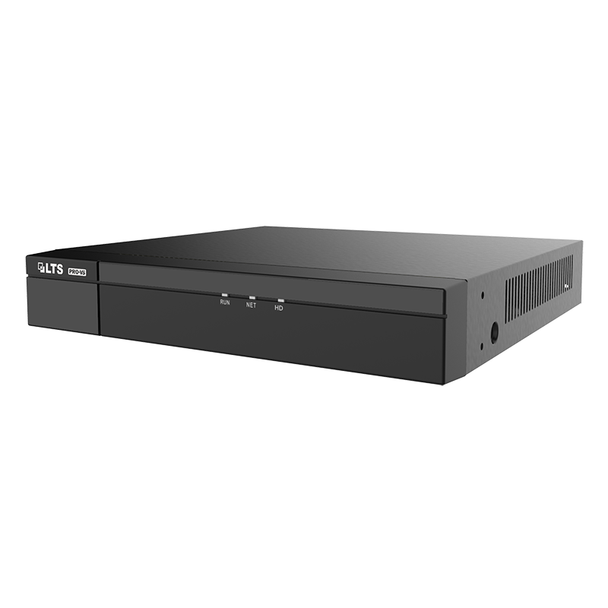

LTS VSN7104-P4 4 Channel 4K Network Video Recorder with 4 Ports Built-in PoE

Brand: LTS Security
Part Number: VSN7104-P4
Write a Review
Replacement: LTS VSN8104-P4 4 Channel 4K Network Video Recorder, No Hard Drive, 1 SATA, 4 PoE, Mini 1U
Check other similar products:
LTS Video Recorders
LTS Pro-VS Series
LTS Network Video Recorders NVR
NDAA Compliant Cameras
LTS Video Recorders NVR
Discontinued
  • LTS VSN7104-P4 4 Channel 4K Network Video Recorder with 4 Ports Built-in PoE
  • LTS VSN7104-P4 4 Channel 4K Network Video Recorder with 4 Ports Built-in PoE
  • LTS VSN7104-P4 4 Channel 4K Network Video Recorder with 4 Ports Built-in PoE
  • LTS VSN7104-P4 4 Channel 4K Network Video Recorder with 4 Ports Built-in PoE
  • LTS VSN7104-P4 4 Channel 4K Network Video Recorder with 4 Ports Built-in PoE
  • LTS VSN7104-P4 4 Channel 4K Network Video Recorder with 4 Ports Built-in PoE
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : H.265, H.264, Ultra 265,
  • Pre-Installed Storage : No HDD included
  • Video Output : 1x VGA 1x HDMI
  • Max. Recording Resolution : 8MP (4K)
  • Hard Drive Ports : 1 SATA Port
  • Max. Storage Capacity : 20 TB Storage Capacity
  • Color : Black
  • Environmental : Indoor
  • Number of PoE Ports : 4 PoE Ports
  • Power Budget : 54 Watt

Related Products

LTS LTN8716D-P16N Platinum 16 Channel 4K NVR with 16 Built-in PoE Ports, Up to 12MP Recording, No Hard Drive Included - 1

LTS LTN8716D-P16N Platinum 16 Channel 4K NVR with 16 Built-in PoE Ports, Up to 12MP Recording, No Hard Drive Included

LTN8716D-P16N
$497.37
  • Compression : H.265, H.265 Plus, H.264, H.264 Plus,
  • Max. FPS and Resolution : 30fps at 12MP (4K)
  • Pre-Installed Storage : No HDD included
  • Video Output : 1x HDMI 1x VGA
  • Max. Recording Resolution : 12MP (4K)
  • Hard Drive Ports : 2 SATA Ports
  • Max. Storage Capacity : 20 TB Storage Capacity
  • Color : Black
  • Environmental : Indoor
  • Number of PoE Ports : 16 PoE Ports
Free shipping over $300 Free Shipping
Network Video Recorder (NVR) Network Video Recorder (NVR)
Black Black
LTS VSN7216-P16 16 Channel 4K Network Video Recorder with 16 Ports Built-in PoE - 1

LTS VSN7216-P16 16 Channel 4K Network Video Recorder with 16 Ports Built-in PoE

VSN7216-P16
$340.98
  • Compression : H.265, H.264, Ultra 265,
  • Pre-Installed Storage : No HDD included
  • Video Output : 1x VGA 1x HDMI
  • Max. Recording Resolution : 8MP (4K)
  • Hard Drive Ports : 2 SATA Ports
  • Max. Storage Capacity : 20 TB Storage Capacity
  • Color : Black
  • Environmental : Indoor
  • Number of PoE Ports : 16 PoE Ports
Free shipping over $300 Free Shipping
Network Video Recorder (NVR) Network Video Recorder (NVR)
Black Black
LTS LTN8708D-P8N 8 Channel 12MP 4K NVR with 8 PoE Ports, MD 2.0 Human and Vehicle Detection, Platinum - 1

LTS LTN8708D-P8N 8 Channel 12MP 4K NVR with 8 PoE Ports, MD 2.0 Human and Vehicle Detection, Platinum

LTN8708D-P8N
$410.66
  • Compression : H.265, H.265 Plus, H.264, H.264 Plus, MJPEG,
  • Max. FPS and Resolution : 30fps at 3840 x 2160 (4K)
  • Pre-Installed Storage : No HDD included
  • Video Output : 1x VGA 1x HDMI
  • Max. Recording Resolution : 12MP (4K)
  • Hard Drive Ports : 2 SATA Ports
  • Max. Storage Capacity : 20 TB Storage Capacity
  • Color : Black
  • Environmental : Indoor
  • Number of PoE Ports : 8 PoE Ports
Free shipping over $300 Free Shipping
Network Video Recorder (NVR) Network Video Recorder (NVR)
Black Black

Description

LTS VSN7104-P4 4 Channel 4K Network Video Recorder with 4 Ports Built-in PoE

On August 13, 2019 National Defense Authorization Act (NDAA), specifically section 889 went into effect. This section prohibits the usage of certain video surveillance, telecommunications services, equipment and components manufactured by specific vendors in federal buildings as well as federally-contracted developments.

LTS is committed to complying with all government and international trade regulations.

LTS proudly introduces their newest series in the video surveillance line: Pro-VS, with 8 new NDAA compliant IP cameras and 4 new NDAA compliant NVRs.

Key Features:

  • Video Input: 4CH IP@80Mbps
  • HDD Options available
  • NDAA Compliant
  • Video Output: HDMI up to 4K(3840 x 2160) / VGA up to 1080P
  • Max. Recording Resolution: Up to 8MP(3840 x 2160)
  • Decoding Format: H.265/H.264
  • Decoding Capability: 1CH@4K / 4CH@1080P
  • Max. Playback Resolution: Up to 8MP(3840 x 2160)
  • Audio In/Out: 1CH/1CH, RCA
  • Built-in PoE: 4CH
  • Network: 10/100M, 1 RJ45
  • Storage: 1 SATA up to 10TB
  • Backup: 1 USB 2.0, 1 USB 3.0
  • Dimensions: 10.2”(W)x9.4”(D)x1.9”(H)
  • Recorder Case: mini 1U

PRO-VS SERIES NVR FEATURES:

  • 4 - 32 Channels NVR
  • Advance Compression H265
  • Up to 4K/8MP Recording Resolution
  • HDMI and VGA Video Outputs
  • Built-in PoE

PRO-VS SERIES STATION

APP

  • Manage up to 5,000 devices and allow up to 10,000 video channels
  • Smooth live view and playback
  • Account sharing via cloud
  • Push alarm notification

Client Software

  • Manage up to 128 devices and monitor up to 512 video channels
  • Up to 64 split view for live view
  • Two way audio and broadcast
  • Search recordings by triggered events

LIST OF PRO-VS SERIES NVRs

Popular Search

LTS Video Recorders
LTS Pro-VS Series
LTS Network Video Recorders NVR
NDAA Compliant Cameras
LTS Video Recorders NVR

Specifications

Model

VSN7104-P4

Video/Audio Input

IP Video Input

4-ch

Two-way Audio Input

1-ch, RCA

Network

Incoming Bandwidth

80Mbps

Outgoing Bandwidth

64Mbps

Remote Users

128

Protocols

P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

HDMI/VGA Output

HDMI:

3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

VGA:

1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

Recording Resolution

4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Audio Output

1-ch, RCA

Synchronous Playback

4-ch

Corridor Mode Screen

3/4

Decoding

Decoding format

Ultra 265/H.265/H.264

Liveview/Playback

4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

1 x 4K@30, 1 x 5MP@30, 2 x 4MP@30, 2 x 3MP@30, 4 x 1080P@30

Hard Disk

SATA

1 SATA interface

Capacity

up to 6TB for each disk

Smart

VCA Detection

Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Object Left Behind, Object Removed

VCA Search

Face search, Behavior search

Statistical Analysis

People counting

External Interface

Network Interface

1 RJ45 10M/100M self-adaptive Ethernet Interface

USB Interface

Rear panel: 1 x USB2.0, 1 x USB3.0

PoE

Interface

4 independent 100 Mbps PoE network interfaces

Max Power

Max 30W for single port

Max 54W in total (13.5W for each)

Supported Standard

IEEE 802.3at, IEEE 802.3af

General

Power Supply

48V DC

Power Consumption: ≤9 W (without HDD)

Working Environment

-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)

Dimensions (W×D×H)

260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")

Weight (without HDD)

1kg (2.20 lb)
View AllClose

Compatible products

Video recorders will require additional parts in order to perform their function. CCTV Power supply, PoE Switches, hard drives, wireless mouse, recorder mount accessories and cables are just few to be mentioned. If you have any questions to complete your security camera system, please check with our sales team first. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

4K Support:
4K Supported
Audio Capability:
Two-way Audio
Audio Input:
1x RCA
Audio Output:
1x RCA
Capacity for each disk:
up to 10TB
Channel Capacity:
4 Channels
Color:
Black
Compliance:
NDAA Compliant
Compression:
H.265 H.264 Ultra 265
Dimensions:
260 x 240 x 47 mm (10.2 x 9.4 x 1.9 in)
Environmental:
Indoor
Hard Drive Ports:
1 SATA Port
Max Power Consumption:
9 Watts
Max. Incoming Bandwidth:
80Mbps
Max. Recording Resolution:
8MP (4K)
Max. Storage Capacity:
20 TB
Network Interface:
1x RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
Number of PoE Ports:
4 PoE Ports
Operating Humidity:
0% to 90% RH (non-condensing)
Operating Temperature:
-10 °C to 55 °C (14 °F to 131 °F)
Outgoing Bandwidth:
64 Mbps
PoE Standards:
IEEE 802.3at IEEE 802.3af
Power Budget:
54 Watt
Power Supply:
48 VDC
Power for each port:
13.5W
Pre-Installed Storage:
No HDD included
Product Series:
LTS Pro-VS Series
Protocols:
P2P PPPoE NTP DHCP UPnP
RAID:
Rack Unit (U):
Mini 1U
Recorder Technology:
Network Video Recorder (NVR)
Remote Users:
Up to 128
Synchronous Playback:
4 Channel
USB Interface:
1x USB 2.0 1x USB 3.0
Video Output:
1x VGA 1x HDMI
Warranty:
3-year Manufacturer Warranty
