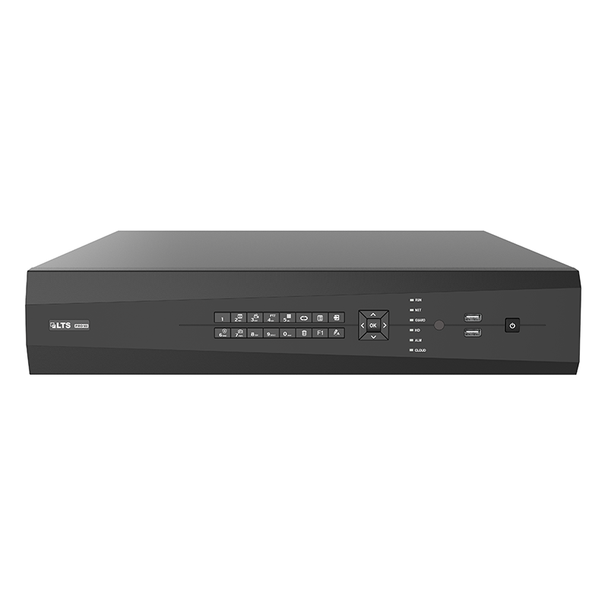

LTS VSN7432-P16 32 Channel 4K Network Video Recorder with 16 Ports Built-in PoE

Brand: LTS Security
Part Number: VSN7432-P16
Write a Review
  • LTS VSN7432-P16 32 Channel 4K Network Video Recorder with 16 Ports Built-in PoE
  • LTS VSN7432-P16 32 Channel 4K Network Video Recorder with 16 Ports Built-in PoE
  • LTS VSN7432-P16 32 Channel 4K Network Video Recorder with 16 Ports Built-in PoE
  • LTS VSN7432-P16 32 Channel 4K Network Video Recorder with 16 Ports Built-in PoE
  • LTS VSN7432-P16 32 Channel 4K Network Video Recorder with 16 Ports Built-in PoE
  • LTS VSN7432-P16 32 Channel 4K Network Video Recorder with 16 Ports Built-in PoE
$690.00
Free shipping over $300 Free Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : H.265, H.264, Ultra 265,
  • Pre-Installed Storage : No HDD included
  • Video Output : 1x VGA 1x HDMI
  • Max. Recording Resolution : 8MP (4K)
  • Hard Drive Ports : 4 SATA Ports
  • Max. Storage Capacity : 14 TB Storage Capacity
  • Color : Black
  • Environmental : Indoor
  • Number of PoE Ports : 16 PoE Ports

Description

LTS VSN7432-P16 32 Channel 4K Network Video Recorder with 16 Ports Built-in PoE

On August 13, 2019 National Defense Authorization Act (NDAA), specifically section 889 went into effect. This section prohibits the usage of certain video surveillance, telecommunications services, equipment and components manufactured by specific vendors in federal buildings as well as federally-contracted developments.

LTS is committed to complying with all government and international trade regulations.

LTS proudly introduces their newest series in the video surveillance line: Pro-VS, with 8 new NDAA compliant IP cameras and 4 new NDAA compliant NVRs.

Key Features:

  • Video Input: 32CH IP@160Mbps
  • HDD Options available
  • NDAA Compliant
  • Video Output: HDMI up to 4K(3840 x 2160) / VGA up to 1080P
  • Max. Recording Resolution: Up to 8MP(3840x2160)
  • Decoding Format: H.265/H.264
  • Decoding Capability: 2CH@4K / 8CH@1080P
  • Max. Playback Resolution: Up to 8MP(3840x2160)
  • Audio In/Out: 1CH/1CH, RCA
  • Alarm In/Out: 16CH/4CH
  • Built-in PoE: 16CH
  • Network: 10/100/1000M, 1 RJ45
  • Storage: 4 SATA up to 14TB
  • Backup: 1 USB 2.0, 1 USB 3.0
  • Dimensions: 15.7”(W)x14.2”(D)x2.9”(H)
  • Recorder Case: 1.5U

PRO-VS SERIES NVR FEATURES:

  • 4 - 32 Channels NVR
  • Advance Compression H265
  • Up to 4K/8MP Recording Resolution
  • HDMI and VGA Video Outputs
  • Built-in PoE

PRO-VS SERIES STATION

APP

  • Manage up to 5,000 devices and allow up to 10,000 video channels
  • Smooth live view and playback
  • Account sharing via cloud
  • Push alarm notification

Client Software

  • Manage up to 128 devices and monitor up to 512 video channels
  • Up to 64 split view for live view
  • Two way audio and broadcast
  • Search recordings by triggered events

LIST OF PRO-VS SERIES NVRs

Popular Search

LTS Video Recorders
LTS Pro-VS Series
LTS Video Recorders NVR
NDAA Compliant
LTS Network Video Recorders NVR
NDAA Compliant Cameras

Specifications

Model

VSN7432-P16

Video/Audio Input

IP Video Input

32-ch

Two-way Audio Input

1-ch, RCA

Network

Incoming Bandwidth

160Mbps

Outgoing Bandwidth

64Mbps

Remote Users

128

Protocols

P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

HDMI/VGA Output

HDMI:

4K (3840x2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60

VGA:

1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60

Recording Resolution

8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Audio Output

1-ch, RCA

Synchronous Playback

32-ch

Corridor Mode Screen

3/4/5/7/9/10/12/16/32

Decoding

Decoding format

Ultra265/H.265/H.264

Live view/Playback

8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30, 32 x D1@30

Hard Disk

SATA

4 SATA interfaces

Capacity

Up to 14TB for each disk

External Interface

Network Interface

1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface

USB Interface

Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0

Serial Interface

1 x RS485

Alarm In

16-ch

Alarm Out

4-ch

PoE

Interface

16 independent 100Mbps PoE network interfaces

Max Power

Max 30W for single port

Max 240W in total

Supported Standard

IEEE 802.3af/at

General

Power Supply

100 ~ 240 V AC

Power Consumption: ≤15W(without HDD)

Working Environment

-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)

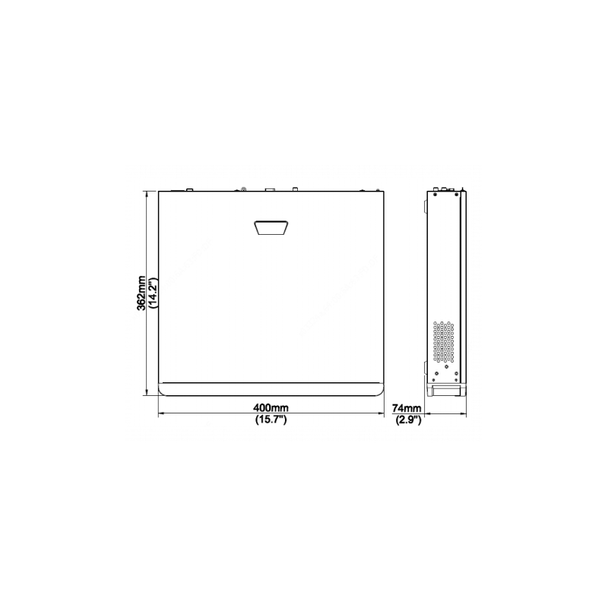

Dimensions (W×D×H)

400mm ×362mm × 74mm (15.7" × 14.2" ×2.9")

Weight (without HDD)

≤5kg (5.29lb)
View AllClose

Additional Information

4K Support:
4K Supported
Alarm Input:
16 Channel
Alarm Output:
4 Channel
Audio Capability:
Two-way Audio
Audio Input:
1x RCA
Audio Output:
1x RCA
Capacity for each disk:
up to 14TB
Channel Capacity:
32 Channels
Color:
Black
Compliance:
NDAA Compliant
Compression:
H.265 H.264 Ultra 265
Dimensions:
400 x 362 x 74 mm (15.7 x 14.2 x 2.9 in)
Environmental:
Indoor
Hard Drive Ports:
4 SATA Ports
Max Power Consumption:
15 Watts
Max. Incoming Bandwidth:
160Mbps
Max. Recording Resolution:
8MP (4K)
Max. Storage Capacity:
14 TB
Network Interface:
1x RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
Number of PoE Ports:
16 PoE Ports
Operating Humidity:
0% to 90% RH (non-condensing)
Operating Temperature:
-10 °C to 55 °C (14 °F to 131 °F)
Outgoing Bandwidth:
64 Mbps
Power Supply:
100 to 240 V AC
Pre-Installed Storage:
No HDD included
Product Series:
LTS Pro-VS Series
Protocols:
DHCP NTP P2P PPPoE UPnP
RAID:
Rack Unit (U):
1.5U
Recorder Technology:
Network Video Recorder (NVR)
Remote Users:
Up to 128
Serial Interface:
1x RS485
Synchronous Playback:
16 Channel
USB Interface:
1x USB 2.0 1x USB 3.0
Video Output:
1x VGA 1x HDMI
Warranty:
3-year Manufacturer Warranty
