Description

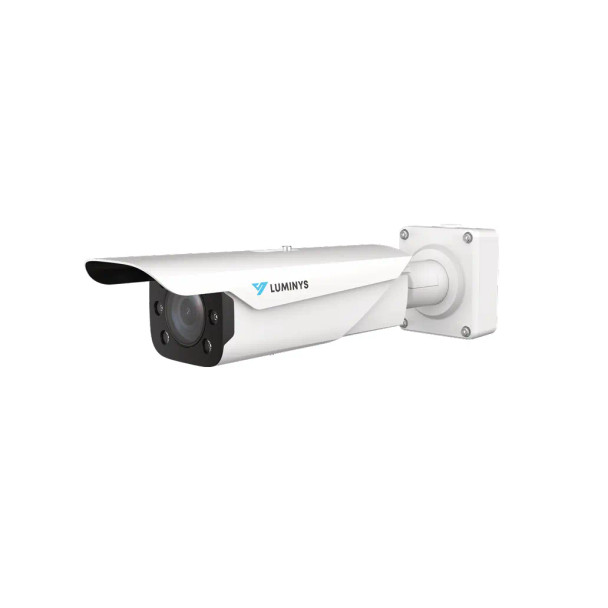

Luminys N9L-4RAL 4MP Outdoor Bullet IP Security Camera with 10-50mm Lens, License Plate Recognition and Built-In IR
The Luminys N9L-4RAL is a cutting-edge 4MP network LPR (License Plate Recognition) camera designed specifically for vehicle identification and traffic monitoring applications. This bullet-style IP security camera delivers exceptional performance in challenging outdoor environments, featuring advanced license plate recognition capabilities with up to 99% accuracy at speeds up to 60 km/h (37 mph).
Built with a motorized vari-focal lens ranging from 10mm to 50mm, this camera provides flexible field of view adjustment for optimal plate capture at distances from 8 to 30 meters. The integrated infrared illumination system ensures reliable performance in low-light conditions, with six adjustable IR illuminators providing illumination up to 30 meters. NDAA compliance makes this camera suitable for government and security-sensitive installations.
The camera's intelligent analytics can automatically detect and categorize vehicle types including buses, trucks, sedans, vans, SUVs, and pickup trucks, while also identifying vehicle colors and front-seat occupants. With IP67 weatherproof rating and robust metal construction, this camera is built to withstand harsh outdoor conditions ranging from -30°C to 65°C (-22°F to 149°F).
Key Features:
- 4MP resolution with 1/1.8-inch progressive CMOS sensor; delivers crystal-clear images for accurate license plate capture and identification
- 10-50mm motorized vari-focal lens with automatic iris control; provides flexible zoom and focus adjustment for optimal coverage
- License plate recognition with 99% accuracy at speeds up to 60 km/h; ensures reliable vehicle identification in high-traffic areas
- Six adjustable IR illuminators with 30-meter range; guarantees excellent performance in complete darkness
- Advanced vehicle analytics with color and type detection; automatically categorizes vehicles and identifies occupants
- IP67 weatherproof rating with -30°C to 65°C operating range; built for reliable operation in extreme outdoor conditions
- NDAA compliant design; meets government security requirements for sensitive installations
- Dual power options with 12VDC and PoE+ support; flexible installation with reduced cabling requirements
- H.265/H.264 video compression with multiple streaming options; optimizes bandwidth usage and storage efficiency
- Built-in 1TB TF card slot and comprehensive alarm I/O; provides local storage backup and integration capabilities
Downloads
Additional Information
Aperture:
|
F1.34
F1.33
|
Camera Style:
|
Bullet
|
Compliance:
|
NDAA Compliant
|
Compression:
|
H.264
MJPEG
H.265
|
Day/Night:
|
|
Dimensions:
|
19.6x4.8x5.1in
|
Lens Size:
|
10~50mm
|
Lens Type:
|
Varifocal
|
Max Power Consumption:
|
20 Watts
|
Minimum Illumination (Color):
|
0.002 Lux
|
Night Vision Range (ft):
|
98
|
Power Supply:
|
12 VDC
PoE+
|
Protection Code:
|
IP67
|
Resolution:
|
4MP
|
SD Card Support:
|
SD Card Supported
|
Sensor Size:
|
1/1.8"
|
Sensor Type:
|
CMOS
|
Specialized Camera Feature:
|
License Plate Recognition
|
Technology:
|
Network (IP)
|
Wide Dynamic Range (WDR):
|
WDR 96dB
|
