Description

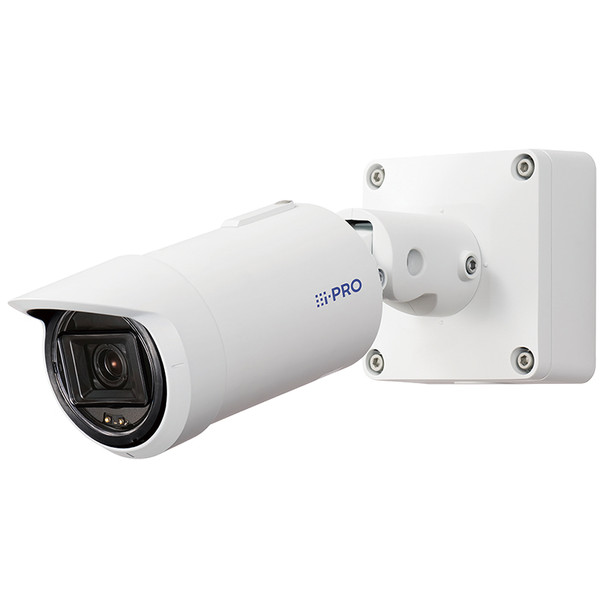

Panasonic WV-S15500-V3LN 5MP Night Vision Outdoor Bullet IP Security Camera
The 5MP/6MP/4K varifocal lens model, a high-resolution network camera will be added to the lineup of the well-established new S series.
Equipped with an AI processor, it can run up to three AI analytics applications (AI apps) simultaneously, which significantly improve the detection rate of people and vehicles and can be used in a wide range of surveillance scenes.
It realizes high-quality and clearer images even in low-light and wide-range shooting scenes. With the released of total 34 models, including fixed focus, black body, smoke dome, and derivative models such as heavy salt damage resistant models, to support a wide variety of security monitoring applications.
Key Features:
- 5MP
- Intelligent Auto (with AI Engine)
- Super Dynamic 132dB
- Color night vision (0.05 to 0.07 lx)
- Smart Coding (with AI Engine)
- ClearSight Coating
- Built-in IR LED
- IK10 Vandal Resistant
- Built-in FIPS 140-2 Level 3 Certified Secure Element with TPM functionality
(EdgeLock® SE050F NXP® Semiconductors) - NDAA Compliant
3 AI Apps operation at same time
- Up to 3 AI apps can be operated at the same time from the wide variety.
Using AI processor which identifies object as people or vehicle, it will reduce false alarm compared to conventional model. As result, it can be used many industries.
High image quality / High compression
- Our original smart coding technology compatible with H.264 and H.265 delivers high-resolution video at high image quality and low bit rate. Achieved useful images by combining with highly visible images by the intelligent auto (iA) function.
Easy setting and installation
- Easy Kitting Package enabling installers to configure cameras easily while keeping the unit in the box.*
The grommet on the outdoor model can reduce the time and effort required for installation.
User-friendly GUI (setting while watching Live view, etc.) allows you to set comfortably.
iCT tool allows you to set multiple cameras, apps, and recorders all at once, reducing the camera setting time.
*The kitting process should be done within 1hour. The inside of the camera gets hot and may cause a malfunction.
High security standard
- Highest level of security. In addition to digital certificates issued by a third-party organization (GlobalSign®),
FIPS 140-2 Level 3 certified EdgeLock® SE050F secure element (NXP® Semiconductors) is embeded.
Downloads
Additional Information
Alarm Input:
|
3 Channel
|
Alarm Output:
|
1 Channel
|
Audio Capability:
|
Two-way Audio
|
Audio Compression:
|
G.726
G.711
AAC-LC
|
Audio Input:
|
1x 3.5mm
|
Audio Output:
|
1x 3.5mm
|
Built-in Features:
|
Built-in Heater
|
Camera Style:
|
Bullet
|
Certifications:
|
cUL
UL Listed
CE
FCC
ICES-003
|
Color:
|
White
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile M
ONVIF Profile S
ONVIF Profile T
|
Compliance:
|
NDAA Compliant
|
Compression:
|
H.265
H.264
MJPEG
|
Connection Type:
|
Wired
|
Day/Night:
|
ICR (True Day/Night)
|
Detect (ft):
|
151.9
659.3
|
Dimensions:
|
133 x 133 x 383 mm (5.2 x 5.2 x 15.1 in)
|
Durability:
|
Vandal Resistant
|
Environmental:
|
Outdoor
|
Field of View (Horizontal):
|
34
106
|
Focus:
|
Auto Focus
|
Identify (ft):
|
15.2
65.9
|
Languages:
|
English
Italian
French
German
Spanish
Japanese
Chinese
Portuguese
Russian
|
Lens Size:
|
2.9~9mm
|
Material:
|
Aluminum
Poly-carbonate (PC)
|
Max Power Consumption:
|
12 Watts
|
Max. FPS and Resolution:
|
30fps at 3072 x 1728
|
Max. Storage Capacity:
|
512 GB
|
Minimum Illumination (B/W):
|
0.004 Lux
|
Minimum Illumination (Color):
|
0.007 Lux
|
Mobile Apps:
|
Android
iPad
iOS
|
Night Vision Range (ft):
|
180
|
Night Vision Type:
|
Night Vision (IR)
|
Observe (ft):
|
60.8
263.7
|
Optical Zoom:
|
3.1x Optical Zoom
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
Product Series:
|
Panasonic i-PRO S-Series
|
Protection Code:
|
IK10
IP66
NEMA 4X
|
Recognize (ft):
|
30.4
131.9
|
Remote Users:
|
Up to 14
|
Resolution:
|
5MP (3K)
|
SD Card Support:
|
SD Card Supported
|
Sensor Size:
|
1/2.8"
|
Sensor Type:
|
CMOS
|
Shutter Speed:
|
1/30-1/10000s
|
Storage Humidity:
|
10% to 100% (non-condensing)
|
Technology:
|
Network (IP)
|
Web Browser:
|
Edge
Firefox
Chrome
|
Wide Dynamic Range (WDR):
|
WDR 132dB
|
