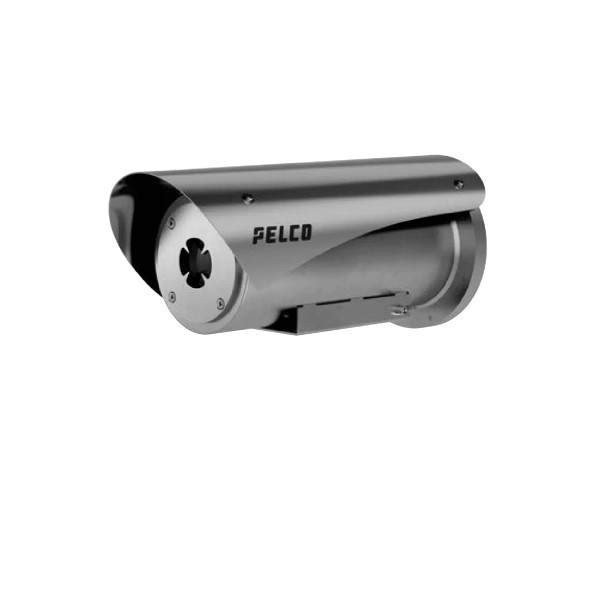

Pelco EXRE2-VF09-E0A00-1 640x512 Explosionproof Outdoor Thermal IP Security Camera with 9.2mm Lens

Pelco EXRE2-VF09-E0A00-1 640x512 Explosionproof Outdoor Bullet IP Security Camera with 9.2mm Lens

The Pelco EXRE2-VF09-E0A00-1 is a 640x512 VGA thermal IP security camera from the ExSite Enhanced Thermal 2 Series Fixed lineup, purpose-built for hazardous and explosion-proof environments. Encased in AISI 316L stainless steel with an electro-polished finish, it carries global explosion-proof certifications including ATEX, IECEx, UKEx, and ETL listings for both USA and Canada. The camera is rated IP66/67/68/69 and NEMA Type 4X/6P, making it exceptionally durable in the harshest outdoor environments, including marine applications where it holds Lloyd's Register Marine Type Approval.

The 640x512 uncooled VOx microbolometer sensor with 12μm pixel pitch and 8–14μm spectral range detects heat signatures with a sensitivity of ≤50mK NETD, enabling reliable target detection through fog, darkness, smoke, and dense foliage. The camera includes radiometric capabilities for real-time temperature measurement, enabling early detection of overheating equipment — critical for industrial and hazardous site monitoring. Smart analytics cover a comprehensive set of object behaviors including loitering, direction violation, objects in area, and tamper detection.

The EXRE2-VF09-E0A00-1 supports Pelco Smart Compression technology for efficient bandwidth management, ONVIF Profile S/G/T/M conformance, and Pelco's Elevate cloud platform. It operates from -50°C to +65°C and accepts PoE (IEEE802.3af), 12VDC, or 24VAC power.

Key Features:

• 640x512 uncooled VOx microbolometer, 12μm pixel pitch; delivers high-resolution thermal imagery for accurate detection at extended ranges.
• Radiometric temperature measurement; enables early detection of equipment overheating and fire risk at hazardous facilities.
• ATEX, IECEx, UKEx, ETL explosion-proof certified; complies with the strictest global hazardous area regulations.
• IP66/67/68/69, NEMA Type 4X/6P; provides maximum protection against water, dust, and chemical ingress.
• Operating temperature -50°C to +65°C; reliable in extreme cold and heat across all industrial environments.
• Thermal sensitivity ≤50mK NETD; detects subtle temperature differences for precise target identification in adverse conditions.
• Built-in smart analytics (loitering, direction violation, object counting); reduces false alarms and enables autonomous event-driven response.
• ONVIF S/G/T/M and Pelco Smart Compression; integrates easily with leading VMS platforms while minimizing bandwidth usage.
• Lloyd's Register Marine Type Approval; certified for offshore and maritime installations.
