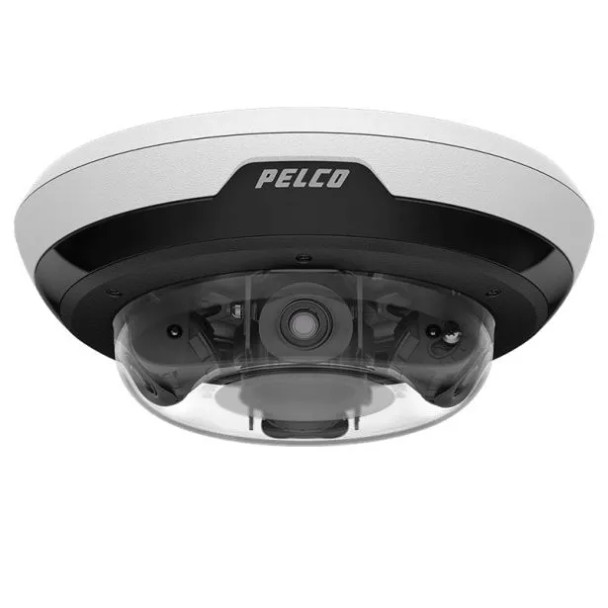

Pelco IMD20136 4x5MP Outdoor 360° Multi-Directional Dome IP Security Camera with 4mm Lens

Brand: Pelco
Part Number: IMD20136
Write a Review
Replacement: There is no direct replacement. Ask a representative.
Check other similar products:
Discontinued
  • Pelco IMD20136 4x5MP Outdoor Multi-Directional Dome IP Security Camera - 4
  • Pelco IMD20136 4x5MP Outdoor Multi-Directional Dome IP Security Camera - 5 Years Warranty

? Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
5 Year Warranty 5 Year Warranty
  • Compression : H.264, H.265, MJPEG,
  • Lens Size : 4mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.8" Sensor
  • Protection Code : IK10 IP66
  • Material : Aluminum
  • Environmental : Outdoor
  • Aperture : F1.2

Description

Pelco IMD20136 4x5MP Outdoor 360° Multi-Directional Dome IP Security Camera with 4mm Lens

The Pelco IMD20136 is a 4x5MP outdoor multi-directional dome IP security camera, delivering a combined resolution of 20MP and providing full 360° coverage from a single installation point. Each of its four 5MP image sensors is equipped with a 4mm lens, ensuring wide-angle views with exceptional detail and clarity. Featuring True Wide Dynamic Range (WDR) and SureVision technology, the camera excels in various lighting conditions, capturing clear images in both bright and shadowed areas. With an IK10-rated vandal-resistant housing and IP66/67 weatherproof certification, this camera is built for tough outdoor environments, making it an excellent choice for public spaces, commercial areas, and critical infrastructure sites.

Key Features:

  • 4x5MP resolution (20MP combined); delivers ultra-high-definition imaging for wide-area surveillance.
  • Multi-directional design with 360° field of view; eliminates blind spots and ensures full situational awareness.
  • 4mm lenses per sensor; provide sharp, wide-angle views with superior detail.
  • True Wide Dynamic Range (WDR); enhances image clarity in high-contrast and low-light conditions.
  • SureVision technology; optimizes image quality for improved visibility in complex lighting environments.
  • Vandal-resistant IK10 rating; built for durability in high-risk outdoor locations.
  • Weatherproof IP66/67 rating; ensures reliable operation in harsh weather conditions.
  • Adaptive IR technology; enables clear night vision for 24/7 monitoring.
  • ONVIF compliant; ensures seamless integration with leading video management systems.
  • Smart compression technology; reduces bandwidth and storage requirements without compromising quality.
  • Advanced motion detection; customizable settings for enhanced security monitoring.
  • Supports multiple streaming formats; H.264, H.265, and Motion JPEG for flexible video transmission.
  • Power over Ethernet Plus (PoE+); simplifies installation with a streamlined power and data connection.
  • Sturdy aluminum construction; designed for long-term performance in outdoor environments.

Downloads

Additional Information

Aperture:
F1.2
Camera Style:
Dome
Compression:
H.264 H.265 MJPEG
Day/Night:
Dimensions:
304 mm x 114 mm (11.95 " x 4.48 ")
Durability:
Water Resistant Dust Resistant Vandal Resistant
Environmental:
Outdoor
Iris:
Fixed Iris
Lens Size:
4mm
Material:
Aluminum
Operating Humidity:
0% to 95% (non-condensing)
Operating Temperature:
-40 °C to 60 °C (-40 °F to 140 °F)
Power Supply:
PoE+ (IEEE802.3at) 24 VDC 24 VAC
Protection Code:
IK10 IP66
Resolution:
5MP
SD Card Support:
SD Card Supported
Sensor Size:
1/2.8"
Sensor Type:
CMOS
Specialized Camera Feature:
Multi-directional
Storage Humidity:
0% to 95% (non-condensing)
Storage Temperature:
-10 °C to 70 °C (14 °F to 158 °F)
Technology:
Network (IP)
Warranty:
5-year Manufacturer Warranty
Wide Dynamic Range (WDR):
WDR 100dB
