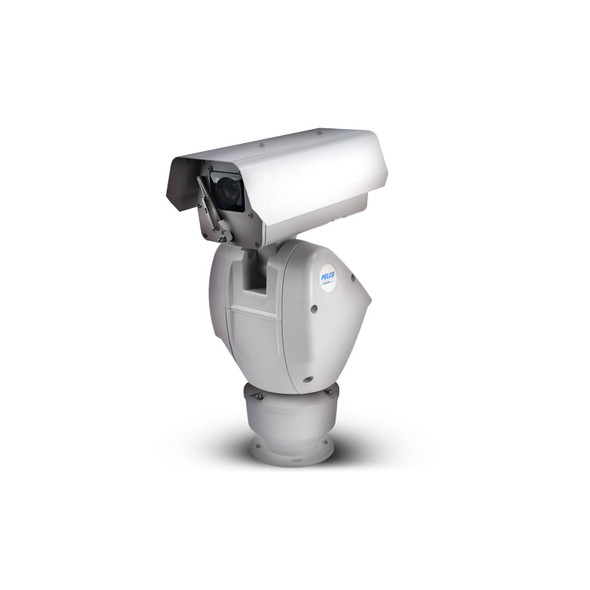

Pelco P2820-ESR 8MP 4K IR H.265 Outdoor PTZ IP Security Camera, 20x Optical Zoom

Pelco P2820-ESR 8MP 4K IR H.265 Outdoor PTZ IP Security Camera - 20x Optical Zoom

Pelco’s Spectra Pro 4K (2160p) Series provides up to 8 MPx resolution, which is four times the resolution of 1080p. Combined with 20x optical zoom, one single camera can cover a large area with crystal clear detailed information such as a license plate, face, etc. Depending on the imaging scene, the HDR mode makes the darker part of a camera image brighter, and automatically corrects brightness and contrast to show bright parts clearly.

Key Features:

• Up to 4K Resolution (2160p)
• 20x optical zoom
• Up to 30 Images per Second (ips) at 8 MPx
• 850 nm IR Illumination to 150 m
• H.265, H.264, and MJPEG Video Encoding
• Tilt Range +15° to –90° Degrees
• IR Illumination with Proportional Brightness Based Upon Zoom
• High Dynamic Range (HDR) Mode, 72 dB
• Sabotage and Simple Motion Detection
• Pelco’s Smart Compression Technology
• Power Over Ethernet (802.3bt), 24 VAC, 48 VDC
• Electronic Image Stabilization (EIS)
• Up to 2 TB Edge Storage with micro SDHC/SDXC Card
• Super Resolution Zoom Mode
• 3-Year Warranty and Support
• Environmental Pendant Available in Light Gray Finish, RAL7047
• Aluminum Construction
• IK10 Except for Glass (Glass IK7)
• Type 4X and IP66
• Uses 1 1/2-inch NPT Thread
• Includes Sun Shield, Heater, and Blower
• –40° to 60°C (–40°F to 140°F) Sustained Operating Temperature

Spectra Pro 4K Series provides three methods of video encoding: H.265 Main profile, H.264 High/Main/Baseline profiles and MJPEG. High Resolution Zoom Spectra Pro 4K provides superior images while maintaining the resolution without degrading image quality, even when magnified. By combining with optical zoom 20x, zoom is achieved up to 30x in 4K and 40x in FHD.

Spectra Pro 4K Series can see in absolute darkness. The infrared illumination (IR) has proportional brightness based upon zoom, creating visible pictures without any light up to 150 m from the camera. The IR wavelength is 850 nm giving an almost undetectable light source in locations where visible light is undesired or light pollution is regulated. The Pro 4K Series offers a wider tilt range giving the camera the ability to look above the horizon 15 degrees (center of field of view).

Included in all models are built in video analytics (e.g. Sabotage and Simple Motion Detection). Spectra Pro 4K also allows for up to 8 configurable privacy zones. White Balance modes including Auto or Manual are available for overcoming difficult lighting conditions day and night. Spectra Pro 4K supports up to 2 TB of onboard local storage (not supplied) that is easily accessible through the ONVIF Profile G protocol or FTP.

Spectra Pro 4K Series features the same ease of installation and maintenance that you have come to expect from Spectra. In addition, the top cover is hinged so that after installation on a mount, the wiring connections can be made while the camera weight hangs on the mount.

Spectra Pro 4K easily connects to Pelco IP and hybrid video systems such as VideoXpert, Endura 2.0 (or later), and Digital Sentry 7.3 (or later). The camera is also compatible with Digital Sentry NVS (DS NVS), a full-featured video management software, which is available as a free download at www.pelco.com. DS NVS includes four free Pelco IP licenses and allows for the management of video from up to 64 cameras.
