Description

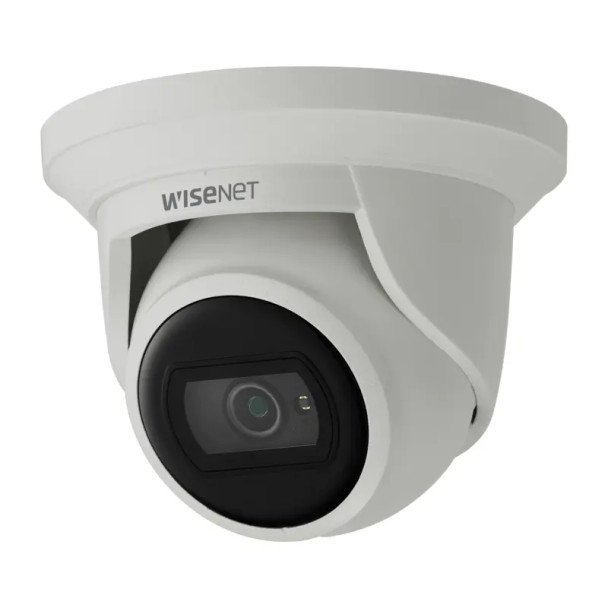

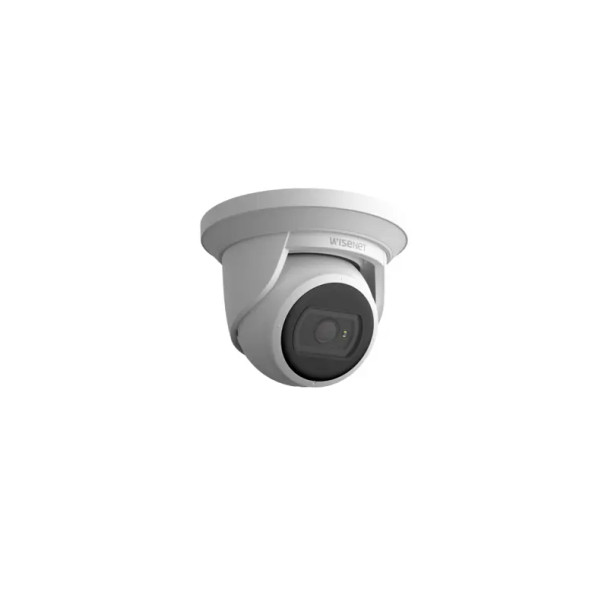

Samsung Hanwha ANE-L6012R 2MP Night Vision Outdoor Turret IP Security Camera
Key Features:
- 2 megapixel (1920 x 1080) resolution
- Built-in 3mm fixed lens
- 30fps@ all resolutions (H.265/H.264)
- H.265/H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Virtual Line Crossing/Directional Detection, Enter/Exit, Tampering, Motion detection
- Micro SD/SDHC memory slot (Max. 32GB), PoE
- Hallway view, WiseStream II support
- IR viewable length 20m
- IP67,IK10 support
Downloads
Firmware
ANO-L6082R_1.41.02_20220728_R65.zip
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Analytics:
|
Motion Detection
Line Crossing
|
|
Aperture:
|
F1.6
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Turret
|
|
Certifications:
|
UL Listed
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
SUNAPI
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
Auto
|
|
Dimensions:
|
125 x 87.4 mm (4.92 x 3.44 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
107.7
|
|
Image Settings:
|
Corridor Format
|
|
LED Indicator:
|
|
|
Languages:
|
English
|
|
Lens Size:
|
3mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Material:
|
Plastic
Aluminum
|
|
Max Power Consumption:
|
6.6 Watts
|
|
Max. FPS and Resolution:
|
30fps at 1080P
|
|
Max. Storage Capacity:
|
32 GB
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.03 Lux
|
|
Network Interface:
|
1x Rj-45 10/100 Base-T
|
|
Night Vision Range (ft):
|
65
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
SSNR
|
|
Power Supply:
|
PoE (IEEE 802.3af)
|
|
Product Series:
|
Samsung Hanwha Wisenet A Series
|
|
Protection Code:
|
IP67
IK10
|
|
RAM:
|
512MB
|
|
Remote Users:
|
Up to 6
|
|
Resolution:
|
2MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
2-1/12000s
|
|
Special Technologies:
|
Hanwha WiseStream II
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
