Description

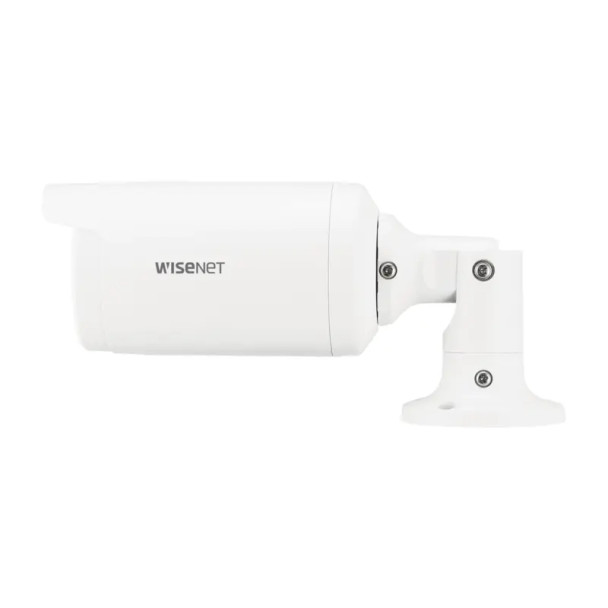

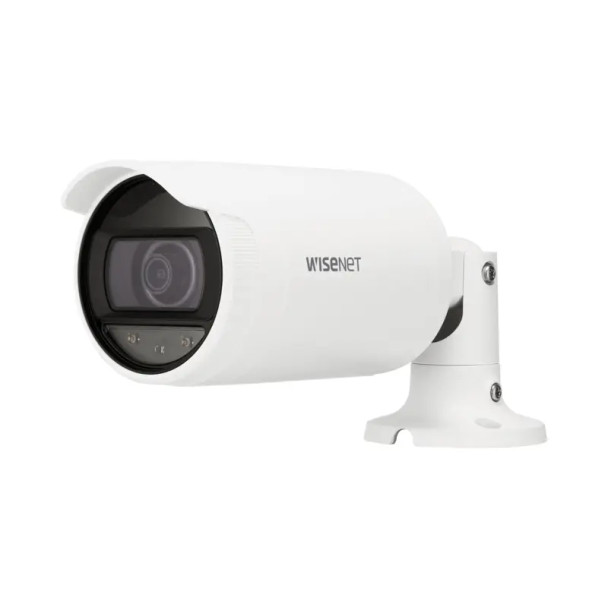

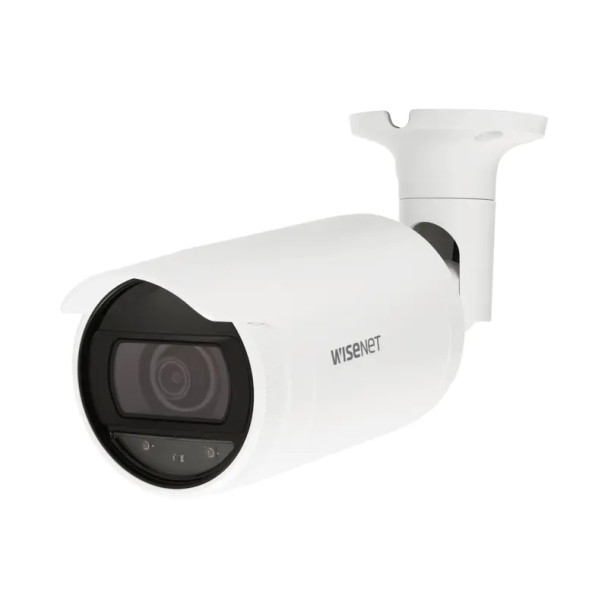

Samsung Hanwha ANO-L6022R 2MP Night Vision Outdoor Bullet IP Security Camera, 4mm Fixed Lens
Key Features:
- 2 megapixel (1920 x 1080) resolution
- 4mm lens w/ 84.3° HFoV
- 30fps@ all resolutions (H.265/H.264)
- H.265/H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
- Micro SD/SDHC memory slot (Max. 32GB), PoE
- Hallway view, WiseStream II support
- IR viewable length 30m
- IP66 support
Replacement of:
LNO-6022R
Downloads
Firmware
ANO-L6012R_1.41.01_20220718_R11.zip
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Analytics:
|
Motion Detection
|
|
Aperture:
|
F2.0
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Bullet
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
SUNAPI
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
MJPEG
H.264
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
ICR (True Day/Night)
|
|
Detect (ft):
|
139.17
|
|
Dimensions:
|
78 x 262 mm (3.07 x 10.31 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
Indoor
|
|
Field of View (Horizontal):
|
84.3
|
|
Identify (ft):
|
13.92
|
|
Image Settings:
|
Corridor Format
|
|
Lens Size:
|
4mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Material:
|
Plastic
|
|
Max Power Consumption:
|
6.4 Watts
|
|
Max. FPS and Resolution:
|
30fps at 1080P
|
|
Max. Storage Capacity:
|
32 GB
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.03 Lux
|
|
Network Interface:
|
1x Rj-45 10/100 Base-T
|
|
Night Vision Range (ft):
|
98
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
SSNR
|
|
Observe (ft):
|
55.67
|
|
Power Supply:
|
PoE (IEEE 802.3af)
|
|
Product Series:
|
Samsung Hanwha Wisenet A Series
|
|
Protection Code:
|
IP66
|
|
RAM:
|
512MB
|
|
Recognize (ft):
|
27.83
|
|
Remote Users:
|
Up to 6
|
|
Resolution:
|
2MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
2-1/12000s
|
|
Special Technologies:
|
Hanwha WiseStream II
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
