Description

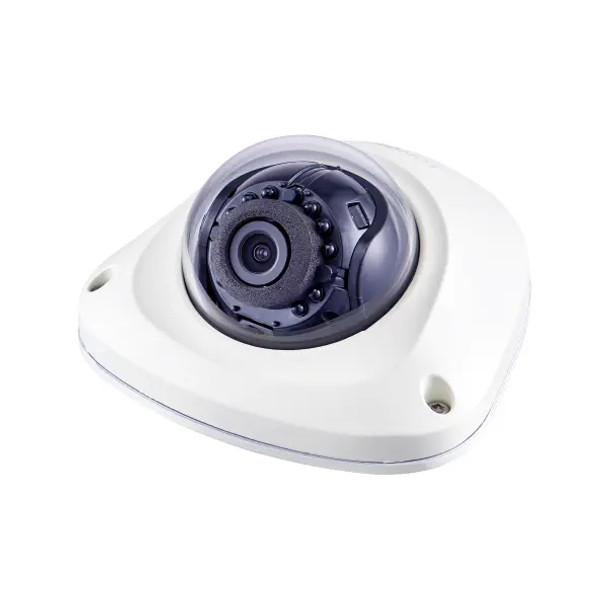

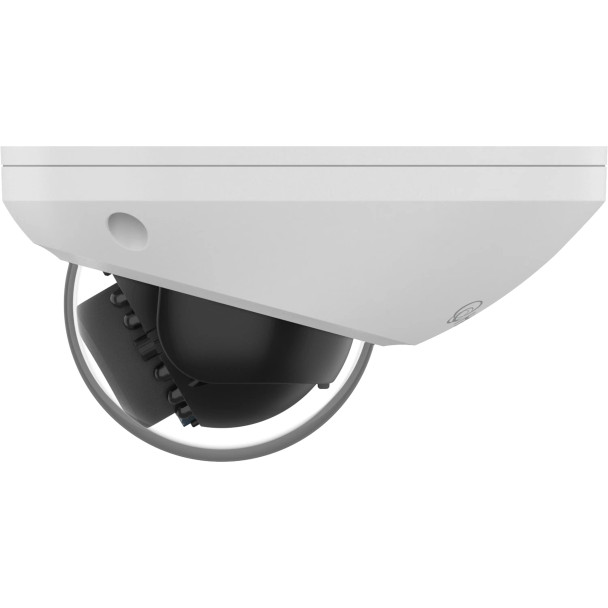

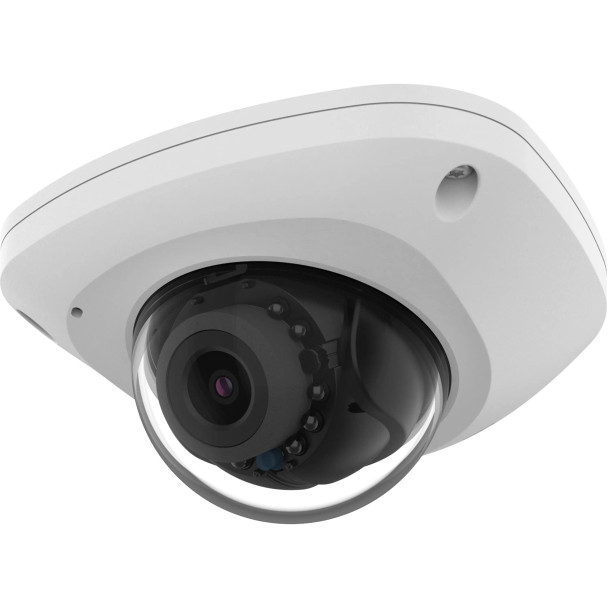

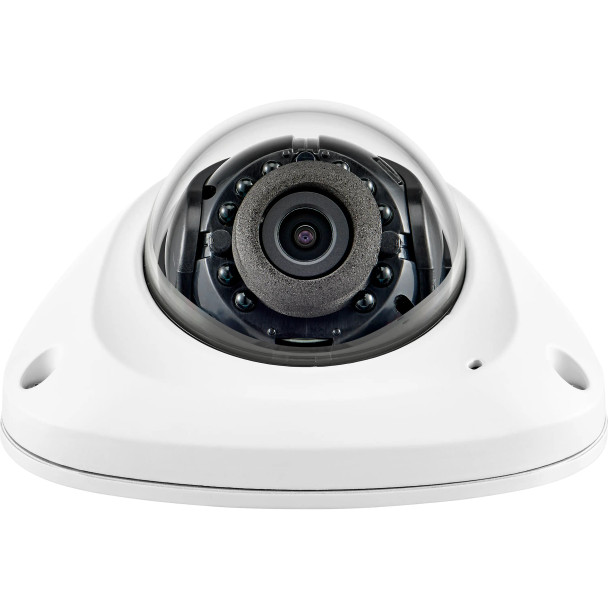

Samsung Hanwha ANV-L6023R 2MP IR Outdoor Flateye Dome IP Security Camera, 3.6mm Fixed Lens, White
A series mini network outdoor vandal dome camera, 2MP @ 30fps, 3.6mm fixed focal lens (94.8°), triple codec H.265/H.264/MJPEG with Wisestream II, 120dB WDR, IR LEDs range 49', defocus detection, hallway View, one way audio and SD card, video analytics, CVBS, open platform, IP66, IK10, PoE.
Key Features:
- 2 Megapixel (1920 x 1080) resolution
- 3.6mm lens w/ 94.8° HFoV
- 30fps@all resolutions (H.265/H.264)
- H.265/H.264, MJPEG codec support, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
- Micro SD/SDHC memory slot (Max. 32GB), PoE
- Hallway View, WiseStream II support
- IR viewable length 15m
- IP66, IK10, NEMA4X support
Replacement of:
QNV-6023R
Downloads
Datasheet
Hanwha-Vision-(-ANV-L6023R-Datasheet-A1
Quick Start Guide
Hanwha-Vision-(-ANV-L6023R-Quick-Start-Guide-A1
User Manual
Hanwha-Vision-(-ANV-L6023R-User-Manual-A1
Additional Information
|
Analytics:
|
Motion Detection
|
|
Aperture:
|
F2.0
|
|
Audio Compression:
|
G.711ulaw
G.726
ADPCM
|
|
Camera Style:
|
Dome
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
SUNAPI
Wisenet open platform
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Electronic ICR
|
|
Detect (ft):
|
115.84
|
|
Dimensions:
|
98.9 x 52.0 x 100.0 mm (3.89 x 2.05 x 3.94 in)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
94.8
|
|
Identify (ft):
|
11.58
|
|
Languages:
|
English
Korean
Chinese
French
Italian
Spanish
German
Japanese
Russian
Portuguese
Czech
Polish
Turkish
Dutch
|
|
Lens Size:
|
3.6mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
6.7 Watts
|
|
Max. FPS and Resolution:
|
30fps at 1920 x 1080
|
|
Max. Storage Capacity:
|
128 GB
|
|
Minimum Illumination (B/W):
|
0 Lux at F2.0 IR on
|
|
Minimum Illumination (Color):
|
0.03 lux at F2.0
|
|
Network Interface:
|
1x RJ-45
|
|
Night Vision Range (ft):
|
49
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
SSNR
|
|
Observe (ft):
|
46.33
|
|
Power Supply:
|
PoE (IEEE 802.3af)
|
|
Product Series:
|
Samsung Hanwha Wisenet A Series
|
|
Protection Code:
|
IP66
IK10
NEMA 4X
|
|
RAM:
|
512MB
|
|
Recognize (ft):
|
23.17
|
|
Resolution:
|
2MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/5-1/12000s
|
|
Special Technologies:
|
Hanwha WiseStream II
|
|
Storage Humidity:
|
0% to 95% RH
|
|
Storage Temperature:
|
-50 °C to 60 °C (-58 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
