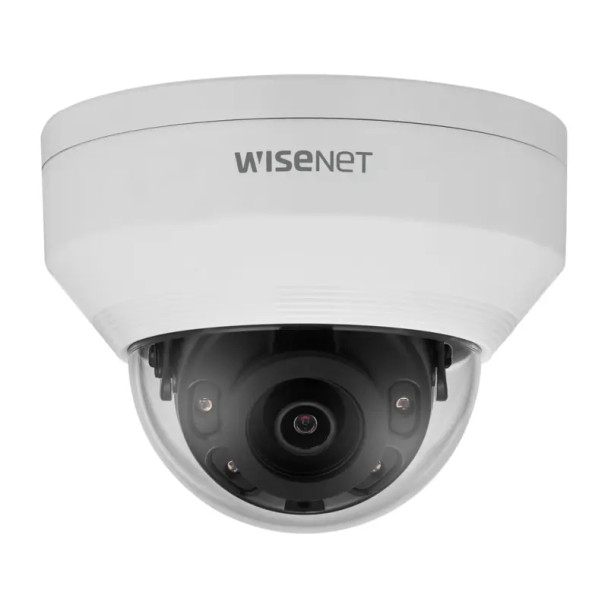

Samsung Hanwha ANV-L7082R 4MP Night Vision Outdoor Dome IP Security Camera, 3.3-10.3mm Varifocal Lens
Key Features:
- 4MP resolution, Up to 30fps
- Color : 0.1Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED On)
- 3.3 ~ 10.3mm motorized varifocal with Simple Focus
- IR viewable length: 30m (98.42ft)
- Day & Night (ICR), WDR (120dB)
- H.265, H.264, MJPEG, Multiple streaming supported
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
- Hallway view (90⁰/270⁰), LDC support, WiseStream II
- Micro SD/SDHC/SDXC memory 1 slot (Max. 128GB)
- IP66, IK10
Downloads
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Analytics:
|
Motion Detection
|
|
Aperture:
|
F1.6
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Dome
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
SUNAPI
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
MJPEG
H.264
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
ICR (True Day/Night)
|
|
Detect (ft):
|
145.25
|
|
Dimensions:
|
120.3 x 91.7 mm (4.74 x 3.61 in)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
Indoor
|
|
Field of View (Horizontal):
|
98.3
|
|
Identify (ft):
|
14.53
|
|
Image Enhancements:
|
Lens Distortion Correction (LDC)
|
|
Image Settings:
|
Corridor Format
|
|
Lens Size:
|
3mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Material:
|
Plastic
Aluminum
|
|
Max Power Consumption:
|
7.5 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2560 x 1440
|
|
Max. Storage Capacity:
|
128 GB
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.13 Lux
|
|
Network Interface:
|
1x Rj-45 10/100 Base-T
|
|
Night Vision Range (ft):
|
65
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
SSNR
|
|
Observe (ft):
|
58.10
|
|
Power Supply:
|
PoE (IEEE 802.3af)
|
|
Product Series:
|
Samsung Hanwha Wisenet A Series
|
|
Protection Code:
|
IP66
IK10
|
|
RAM:
|
512MB
|
|
Recognize (ft):
|
29.05
|
|
Remote Users:
|
Up to 6
|
|
Resolution:
|
4MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/5-1/12000s
|
|
Special Technologies:
|
Hanwha WiseStream II
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
