Description

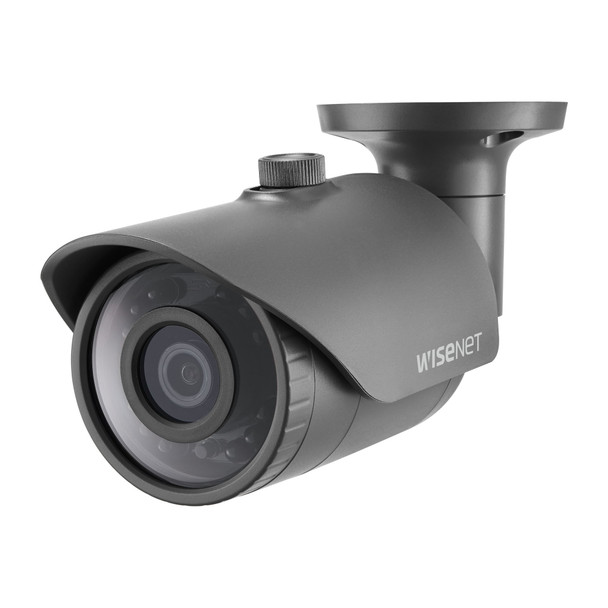

Samsung Hanwha HCO-6020R 2MP IR Bullet HD CCTV Security Camera
Key Features:
- Full HD resolution
- 0.17Lux@F1.6(Color), 0Lux(B/W : IR LED on)
- 4.0mm lens
- Day & Night(ICR),
- WDR(120dB)
- SSNRⅣ, Motion detection
- IR viewable length : 98 feet,
- Weatherproof IP66,
- 12VDC
- Transmission distance Max.500m
- Easy installation (Plug & play),Coaxial control
- Multi-protocol compatible with AHD, TVI, CVI, CVBS
Downloads
Quick Start Guide
Hanwha-Techwin-(Samsung)-HCO-6020R-Quick-Start-Guide-A1
Specifications
| Video | |
|---|---|
| Imaging Device | 1/2.8" 2M CMOS |
| Effective Pixels | 1945(H)x1097(V) |
| Min. Illumination | Color : 0.17Lux (F1.6, 1/30sec) B/W : 0Lux(IR LED on) |
| Video Out | BNC(AHD / TVI / CVI / CVBS Selectable) |
| Lens | |
| Focal Length (Zoom Ratio) | 4mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Manual |
| Operational | |
| IR Viewable Length | 30m(98.43ft) |
| Camera Title | Displayed up to 15 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅣ |
| Defog | Support |
| Motion Detection | 4ea |
| Privacy Masking | 8ea, rectangular zones |
| Gain Control | Low / Middle / High / Very High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | 1 ~ 1/12,000sec |
| Video Rotation | H-Rev / V-Rev |
| Analytics | Motion detection |
| Coaxial Protocol | ACP(AHD Coax Protocol), TCP(TVI Coax Protocol), CCP(CVI Coax Protocol) CVBS : Pelco-C(Coaxitron) |
| Video Transmission Distance | 500m(5C2V Coaxial Cable) |
| Network | |
| Resolution | 1920 x 1080 |
| Max. Framerate | 30fps @1080p(N), 25fps @ 1080p(P) |
| Environmental | |
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH |
| Certification | IP66 |
| Electrical | |
| Input Voltage | 12VDC |
| Power Consumption | Max 5.4W |
| Mechanical | |
| Color / Material | Dark Gray / Plastic |
| Product dimensions / weight | Ø58.6 x 165.2mm(2.31 x 6.50"), 279g(0.62 lb) |
Additional Information
|
Additional Features:
|
Day/Night
|
|
Analytics:
|
Motion Detection
|
|
Camera Style:
|
Bullet
|
|
Color:
|
Dark Gray
|
|
Compliance:
|
NDAA Compliant
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Lens Size:
|
4mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Product Series:
|
Samsung Hanwha WiseNet HD+ Series
|
|
Protection Code:
|
IP66
|
|
Resolution:
|
2MP
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
HD CCTV
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
