Description

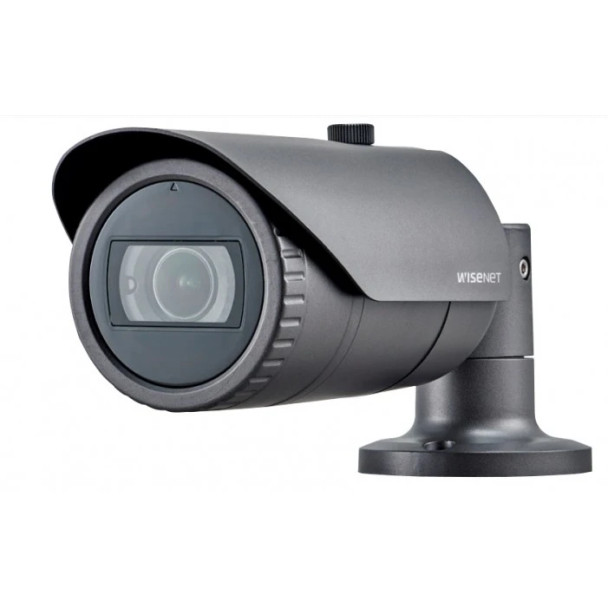

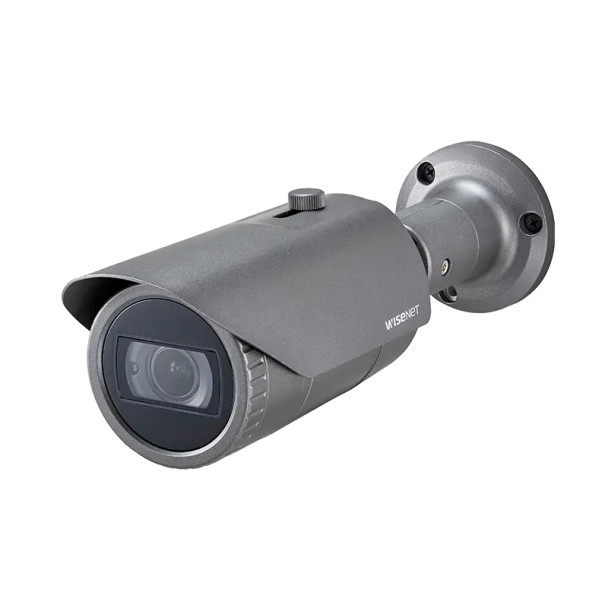

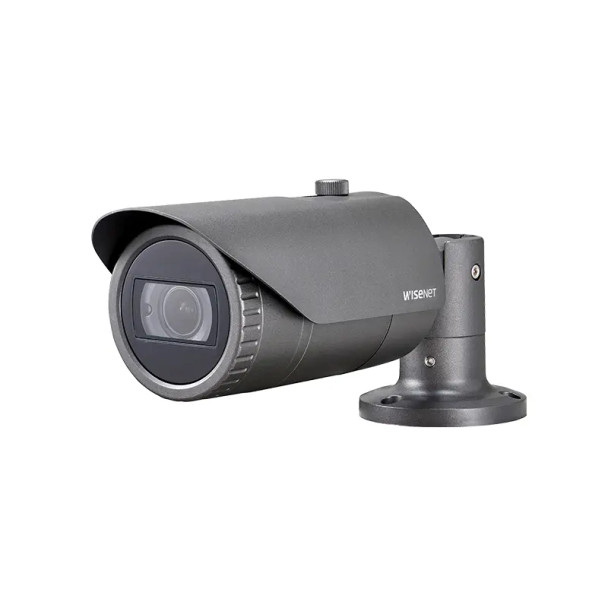

Samsung Hanwha HCO-7070RA 4MP (QHD) IR Outdoor Bullet HD CCTV Security Camera
Key Features
- QHD (2560 x 1440, 30fps) resolution
- 0.16 Lux@F1.6 (Color), 0 Lux (B/W : IR LED on)
- 3.2 ~ 10mm (3.1x) varifocal lens
- Day & Night (ICR), DWDR, Motion detection
- Transmission distance Max. 500m
- Easy installation (Plug & play), Dual power
- IP66, IK10 support
Replacement of:
HCO-7070R
Downloads
Quick Start Guide
Hanwha-Techwin-(Samsung)-HCO-7070RA-Quick-Start-Guide-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Analytics:
|
Motion Detection
|
|
Aperture:
|
F1.6
|
|
Camera Style:
|
Bullet
|
|
Color:
|
Dark Gray
|
|
Dimensions:
|
78.0 x 259.8 mm (3.07 x10.23 in)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
93.48
29.44
|
|
Iris:
|
Auto (DC-iris)
|
|
Lens Size:
|
3.2~10mm
|
|
Lens Type:
|
Varifocal (Manual Zoom) Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
5.8 Watts
|
|
Max. FPS and Resolution:
|
30fps at 4MP
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.16 Lux
|
|
Night Vision Range (ft):
|
98
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
2D DNR
|
|
Power Supply:
|
12 VDC
24 VAC
|
|
Product Series:
|
Samsung Hanwha WiseNet HD+ Series
|
|
Protection Code:
|
IP66
IK10
|
|
Resolution:
|
4MP
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/30-1/12000s
|
|
Technology:
|
HD CCTV
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
Digital WDR (D-WDR)
|
