Description

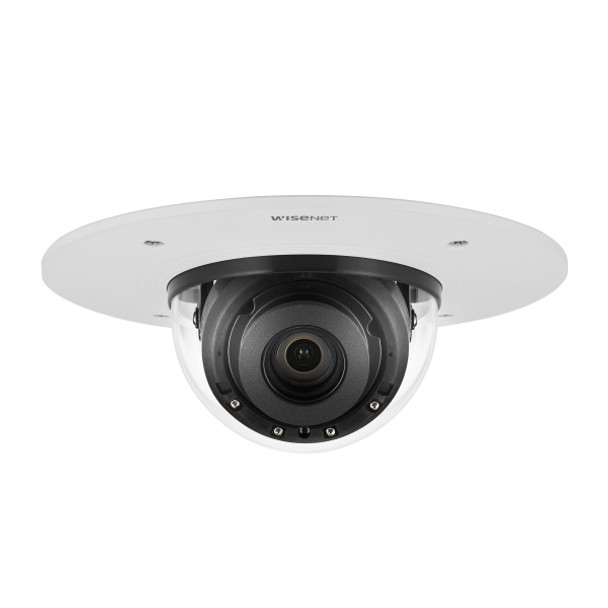

Samsung Hanwha PND-A9081RF 8MP 4K Indoor Flush Mount Dome IP Security Camera with AI
Key Features:
- 4K / 8 megapixel (3840 x 2160) resolution
- 0.05Lux@F1.6 (Color), 0 Lux (B/W IR LED On)
- 30fps@all resolutions (H.265/H.264)
- Video Analytics based on AI
- Object detection and classification (Person, Face, Vehicle, License Plate), Attribute, BestShot
- Modular structure for easy installation
- 30m (98ft) IR Illumination
- 4.5~10mm (2.2x) motorized varifocal lens
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (120dB), P-Iris
- Digital image stabilization with built-in Gyro sensor
- Face mask detection, loitering, directional detection, audio detection, sound classification, tampering, shock detection
- Motion detection, PTZ Handover, audio event playback, digital auto tracking
- Dual SD/SDHC/SDXC memory slots (Maximum total capacity 512GB)
- Hallway view, WiseStream III support
- LDC support (Lens Distortion Correction)
- PoE+ / 12V DC, Bi-directional audio support
- IP52 / IK10 / Plenum-rated for in-ceiling use
Downloads
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Analytics:
|
Motion Detection
Audio Detection
Object Detection
|
|
Aperture:
|
F1.6
F2.65
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711ulaw
G.726
ADPCM
AAC-LC
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
UL Listed
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
SUNAPI
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Detect (ft):
|
206.34
600.33
|
|
Dimensions:
|
205 x 163 mm (8.07 x 4.92 in)
|
|
Durability:
|
Vandal Proof
|
|
Environmental:
|
Indoor
|
|
Field of View (Horizontal):
|
45.5
101.4
|
|
Identify (ft):
|
20.67
60.03
|
|
Image Enhancements:
|
Lens Distortion Correction (LDC)
|
|
Iris:
|
Auto (DC-iris)
|
|
LED Indicator:
|
|
|
Languages:
|
English
Spanish
|
|
Lens Size:
|
4.5~10mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
20 Watts
|
|
Max. FPS and Resolution:
|
30fps at 3840 x 2160 (4K)
|
|
Max. Storage Capacity:
|
512 GB
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.05 Lux at F1.6 1/30sec
|
|
Network Interface:
|
1x RJ-45 10/100/1000 Mbps
|
|
Night Vision Range (ft):
|
98
|
|
Noise Reduction:
|
SSNR V
|
|
Observe (ft):
|
82.34
240.46
|
|
Optical Zoom:
|
2.2x Optical Zoom
|
|
Power Supply:
|
PoE+ (IEEE802.3at Class 4)
12 VDC
|
|
Product Series:
|
Samsung Hanwha Wisenet P Series
|
|
Protection Code:
|
IP52
IK10
|
|
RAM:
|
4GB
|
|
Recognize (ft):
|
41.33
120.07
|
|
Resolution:
|
8MP (4K)
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/5-1/12000s
|
|
Special Technologies:
|
Hanwha WiseStream III
|
|
Technology:
|
Network (IP)
|
|
USB Interface:
|
1x Micro USB
|
|
Video Output:
|
1x CVBS
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
