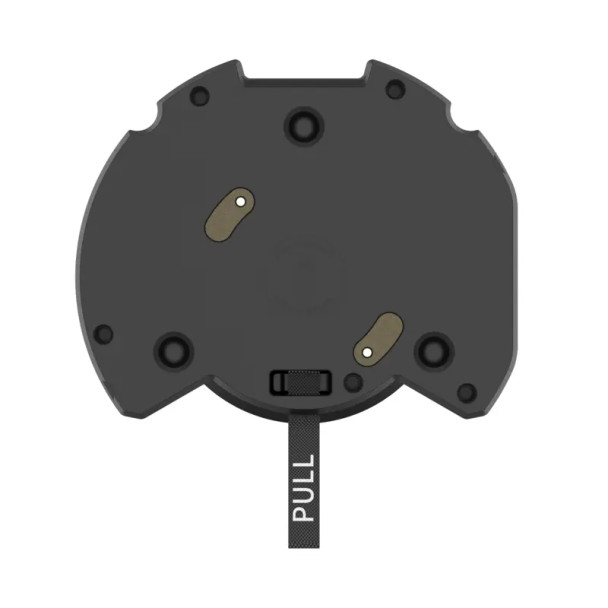

Samsung Hanwha PND-A9081RVX 8MP 4K Night Vision Indoor IP Security Camera Module with 4.5~10mm Motorized Lens and AI
Key Features:
- Camera module for easy upgrade of existing indoor modular cameras.
- 4K / 8 megapixel (3840 x 2160) resolution
- 0.05Lux@F1.6 (Color), 0 Lux (B/W IR LED On)
- 30fps@all resolutions (H.265/H.264)
- Video Analytics based on AI
- Classified object type : Person/Face/Vehicle/License plate
- Attributes : Person (Gender, Color and Bag), Face (Age, Gender, Mask and Glasses), Vehicle (Type: car/bus/truck/motorcycle/bicycle and Color)
- Support Bestshot per object
- Analytics events based on AI engine - Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Face mask detection, Digital auto tracking, Social distancing detection Analytics events - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) *Some of the video analytics only works with people and vehicle detection
- 4.5~10mm (2.2x) motorized varifocal lens
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (120dB), P-Iris
- Digital image stabilization with built-in Gyro sensor
- Face mask detection, loitering, directional detection, audio detection, sound classification, tampering, shock detection
- Motion detection, PTZ Handover, audio event playback, digital auto tracking
- 30m (98ft) IR Illumination
- Dual SD/SDHC/SDXC memory slots (Maximum total capacity 512GB)
- Hallway view, WiseStream III support
- LDC support (Lens Distortion Correction)
- PoE+ / 12vDC,
- Bi-directional audio support
- IP / IK rating based on camera housing used
Downloads
User Manual
Hanwha-Vision-(-PND-A9081RVX-User-Manual-A1
Additional Information
|
Alarm I/O:
|
2x Configurable I/O Ports
|
|
Analytics:
|
Motion Detection
Queue Management
People Counting
Object Detection
Virtual Line
Virtual Area
Tampering
Audio Detection
Sound Classification
Vehicle Detection
|
|
Aperture:
|
F1.6
F2.65
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711ulaw
G.726
ADPCM
AAC-LC
|
|
Audio Input:
|
1x 3.5mm
|
|
Audio Output:
|
1x 3.5mm
|
|
Camera Style:
|
Barebone
|
|
Color:
|
Black
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile M
ONVIF Profile S
ONVIF Profile T
Wisenet open platform
SUNAPI
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Day (Color)
ICR (True Day/Night)
|
|
Detect (ft):
|
204.04
608.31
|
|
Environmental:
|
Indoor
|
|
Field of View (Horizontal):
|
102
45
|
|
Focus:
|
Simple Focus
|
|
Identify (ft):
|
20.4
60.83
|
|
Image Enhancements:
|
Backlight Compensation (BLC)
Lens Distortion Correction (LDC)
|
|
Iris:
|
P-iris
|
|
Languages:
|
English
French
German
Spanish
Italian
Chinese
Korean
Russian
Japanese
Swedish
Portuguese
Czech
Polish
Turkish
Dutch
Hungarian
Greek
|
|
Lens Size:
|
4.5~10mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
20 Watts
|
|
Max. FPS and Resolution:
|
30fps at 3840 x 2160 (4K)
|
|
Max. Storage Capacity:
|
512 GB
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.05 Lux
|
|
Network Interface:
|
1x RJ-45 10/100/1000 Base-T
|
|
Night Vision Range (ft):
|
98
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
WiseNR Ⅱ
|
|
Observe (ft):
|
81.62
243.32
|
|
Optical Zoom:
|
2.2x Optical Zoom
|
|
Power Supply:
|
12 VDC
PoE+ (IEEE802.3at)
|
|
Product Series:
|
Samsung Hanwha Wisenet P Series
|
|
RAM:
|
4GB
|
|
Recognize (ft):
|
40.81
121.66
|
|
Reset Button:
|
|
|
Resolution:
|
8MP (4K)
|
|
SD Card Support:
|
2x Micro SD/SDHC/SDXC Slot
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Specialized Camera Feature:
|
Artificial Intelligence (AI)
|
|
Storage Humidity:
|
0% to 90% RH
|
|
Storage Temperature:
|
-50 °C to 60 °C (-58 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
USB Interface:
|
1x Micro USB
|
|
Video Output:
|
1x CVBS
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
