Samsung Hanwha PNM-C12083RVD 2x6MP Night Vision Outdoor Multi-sensor IP Security Camera

Part Number: PNM-C12083RVD
Write a Review
  • Samsung Hanwha PNM-C12083RVD 2x6MP Night Vision Outdoor Multi-sensor IP Security Camera - 1
  • Samsung Hanwha PNM-C12083RVD 2x6MP Night Vision Outdoor Multi-sensor IP Security Camera - 2
  • Samsung Hanwha PNM-C12083RVD 2x6MP Night Vision Outdoor Multi-sensor IP Security Camera - 3
  • Samsung Hanwha PNM-C12083RVD 2x6MP Night Vision Outdoor Multi-sensor IP Security Camera - 4
  • Samsung Hanwha PNM-C12083RVD 2x6MP Night Vision Outdoor Multi-sensor IP Security Camera - 5
  • Samsung Hanwha PNM-C12083RVD 2x6MP Night Vision Outdoor Multi-sensor IP Security Camera - 6
  • Samsung Hanwha PNM-C12083RVD 2x6MP Night Vision Outdoor Multi-sensor IP Security Camera - 7
  • Samsung Hanwha PNM-C12083RVD 2x6MP Night Vision Outdoor Multi-sensor IP Security Camera - 8

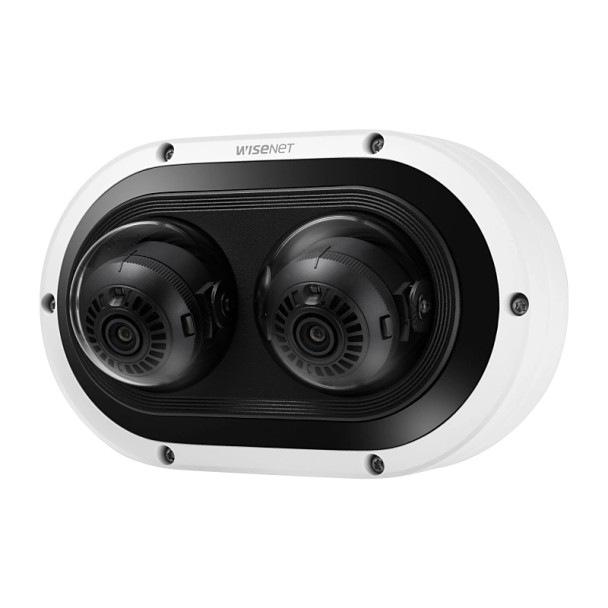

  • Samsung Hanwha PNM-C12083RVD 2x6MP Night Vision Outdoor Multi-sensor IP Security Camera - 9
  • Samsung Hanwha PNM-C12083RVD 2x6MP Night Vision Outdoor Multi-sensor IP Security Camera - 3 Years Warranty
$2,050.00
$1,553.18
— You save $496.82

? Help me pick a security camera

Free shipping over $300 Free Shipping
Fast Shipping Fast Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : H.265, H.264, MJPEG,
  • Field of View (Horizontal) : 95.08°Field of View 47.64°Field of View
  • Max. FPS and Resolution : 15fps at 3328 x 1872
  • Lens Type : Motorized (Automatic Zoom) Lens
  • Lens Size : 3.54~6.69mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.8" Sensor
  • Protection Code : IP66 IK10 NEMA 4X
  • Color : White
  • Material : Aluminum
  • Environmental : Outdoor
  • Aperture : F1.67 F2.64

Description

Samsung Hanwha PNM-C12083RVD 2x6MP Night Vision Outdoor Multi-sensor IP Security Camera

Key Features:

  • Analytics events based on AI engine: Classified object(Person/Face/Vehicle/License plate)
  • Attributes(vehicle type: Car/Bus/Truck/Motorcycle/Bicycle)
  • Support BestShot
  • WiseNR II, Auto prefer shutter control, WiseStream II, extremeWDR (120dB)
  • Maximum 3328x1872 resolution
  • Maximum 15fps@6M
  • Color: 0.16lux(F1.67, 1/30sec, 30IRE), 0 Lux (IR LED on)
  • 3.54~6.69mm motorized varifocal, 78° tilt angle
  • IR viewable length: IR 25m(82ft) based on scene
  • TPM 2.0(FIPS 140-2 certified)
  • IP66, IK10, NEMA4X

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Aperture:
F1.67 F2.64
Built-in Features:
Built-in Analytics
Camera Style:
Multi-sensor Dome
Certifications:
UL Listed
Color:
White
Compatible Integration (API):
ONVIF Profile S ONVIF Profile T SUNAPI Wisenet open platform
Compliance:
NDAA Compliant
Compression:
H.265 H.264 MJPEG
Connection Type:
Wired
Day/Night:
ICR (True Day/Night)
Detect (ft):
199.82 494.65
Dimensions:
215 x 135 x 93.2 mm (8.46 x 5.31 x 3.67 in)
Durability:
Weatherproof Vandal Proof
Environmental:
Outdoor
Field of View (Horizontal):
95.08 47.64
Identify (ft):
19.98 49.46
Iris:
Fixed Iris
Languages:
English Spanish
Lens Size:
3.54~6.69mm
Lens Type:
Motorized (Automatic Zoom) Lens
Manufacturer Website:
https://hanwhavisionamerica.com/
Material:
Aluminum
Max Power Consumption:
21 Watts
Max. FPS and Resolution:
15fps at 3328 x 1872
Minimum Illumination (B/W):
0 lux
Minimum Illumination (Color):
0.16 Lux
Network Interface:
1x RJ-45 10/100/1000 Mbps
Night Vision Range (ft):
82
Night Vision Type:
Night Vision (IR)
Noise Reduction:
SSNR V WiseNR Ⅱ
Observe (ft):
79.93 197.86
Operating Humidity:
0% to 95% RH (non-condensing)
Operating Temperature:
-40 °C to 55 °C (-40 °F to 131 °F)
Optical Zoom:
1.9x Optical Zoom
Power Supply:
PoE+ (IEEE802.3at Class 4)
Product Series:
Samsung Hanwha Wisenet P Series
Protection Code:
IP66 IK10 NEMA 4X
RAM:
4GB
Recognize (ft):
39.96 98.93
Resolution:
6MP
SD Card Support:
SD Card Supported
Sensor Size:
1/2.8"
Sensor Type:
CMOS
Shutter Speed:
1/5-1/12000s
Special Technologies:
Hanwha WiseStream III
Specialized Camera Feature:
Multi-directional
Technology:
Network (IP)
USB Interface:
1x Micro USB
Warranty:
3-year Manufacturer Warranty
Wavelength (nm):
850
Wide Dynamic Range (WDR):
True WDR 120dB
