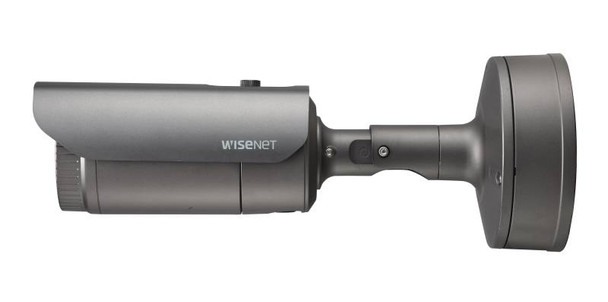

Samsung Hanwha PNO-A9081R 4K Bullet IP Security Camera with Artificial Intelligence

Samsung Hanwha PNO-A9081R 4K Bullet IP Security Camera with Artificial Intelligence

The new cameras recognize humans versus vehicles, faces, license plates and more, greatly enhancing the accuracy of video analytics over previous generations. The PNO-A9081 series features 4K resolution while the PNO-A8081 series features 5MP resolution. Both camera models include 2.2x zoom with motorized varifocal lenses (4.5~10mm, F1.6).

The new AI algorithms can discern human beings as distinct objects separate from their surroundings because they have been exposed to thousands of images of humans. With this additional data, the cameras can support advanced rules about the movement of cars and the movements of people within the same image.

The new AI cameras also tell users more about the objects they detect. They recognize types of vehicles such as a bus or car and the color of a vehicle as well. This additional metadata reduces the time to search video for objects of interest to minutes instead of hours.

The new cameras utilize Hanwha's modular design, which enables quick and efficient installation and future maintenance.

Key Features:

• 8MP, Max. 4K resolution
• 1/1.8" CMOS
• 4.5~10mm(2.2x) motorized varifocal, H:101.4°(Wide)~45.5°(Tele)
• IR range up to 30m(98.42ft)
• Built-in gyro sensor
• Micro SD/SDHC/SDXC 2 slots, total capacity 512GB
• 0.05Lux@F1.6 (Color), 0Lux (B/W, IR LED on)
• Day & Night(ICR), WDR(120dB)
• H.265, H.264, MJPEG codec, WiseStreamⅡ
• Video Analytics based on AI
  - Object detection and classification(Person, Face, Vehicle, License Plate)
  - Attribute, BestShot
• Compatible with Wisenet Retail Insight v2.0 for Business Intelligence
  - Age/gender based People counting
  - Heatmap
  - Queue management
• IP66/IP67, IK10, NEMA4X

Reducing false alarm based on deep learning technology

Wisenet AI cameras using AI algorithms filter out irrelevant movements caused by environmental changes such as waving trees, shadows, or animals. While conventional cameras detect motion based on its pixels and generate events even if users want to ignore, Deep Learning-based Wisenet AI cameras generate event alarm only for people and vehicles, reducing false alarms for more efficient operation.

Attribute, BestShot for the forensic search

Metadata including attribute (people : age, gender, colors of top/bottom clothes, wearing glasses, Vehicle : types, colors) is sent to the backend server and used to extract information on specific situations, significantly reducing the time to search the entire video. And Wisenet P series AI cameras are equipped with the BestShot feature for re-identification which ensures that only the most suitable images of classified objects are sent to the backend server.

VMS Integration for forensic search

Wisenet P series AI cameras offers integration of video management system from Milestone, Genetec using Hanwha’s plugin and Wisenet WAVE. This plugin supports seamless integration so that users can easily search the AI events on Milestone, Genetec including Wisenet SSM, Wisenet Wave.

Compatible models

• Milestone 2019 R3 or higher, Milestone Expert or Corporate level
• Genetec
• Wisenet SSM, Wisenet WAVE

Free Occupancy Monitoring Application support

Wisenet Occupancy Monitoring Application which utilizes Wisenet P series AI cameras that can count the number of people entering and exiting a building, allows you to effectively control a building occupancy.
