Description

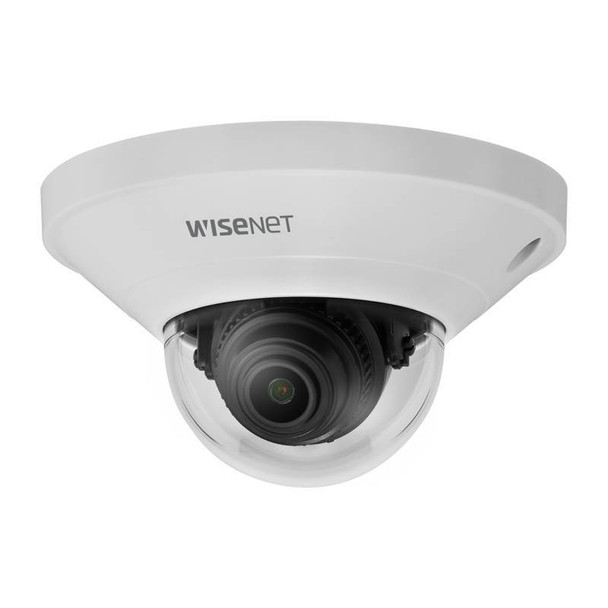

Samsung Hanwha QND-8011 5MP H.265 Indoor Dome IP Security Camera
Key Features:
- Max. 5Megapixel (2592 x 1944) resolution
- 2.8mm fixed lens
- 0.15Lux (Color), WDR (120dB)
- Max. 30fps@5MP (H.265 / H.264)
- H.265, H.264, MJPEG codec support, Multiple streaming
- Tampering, Motion detection, Defocus detection
- Micro SD / SDHC / SDXC memory slot (Max. 128GB)
- Hallway view, WiseStream II support
- LDC, PoE
Downloads
User Manual
Hanwha-Techwin-(Samsung)-QND-8011-User-Manual-A1
Popular Search
Specifications
| Video | |
|---|---|
| Imaging Device | 1/2.8" 5MP CMOS |
| Effective Pixels | 2592(H)x1944(V) |
| Min. Illumination | Color: 0.15Lux(F2.0, 1/30sec) |
| Video Out | HDMI: 1080p@30/25fps(60/50Hz) |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 104.4°/ V: 76.7°/ D: 136.1° |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0˚~350˚ / 0˚~69˚ / 0˚~355˚ |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Motion detection, Tampering |
| Business Intelligence | People counting |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Resolution | 2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OSx10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OSxonly) |
| Memory | 512MB RAM, 256MB Flash |
| Environmental | |
| Operating Temperature / Humidity | -10°C ~ +40°C(-14°F ~ +104°F) / Less than 90% RH |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP42, IK08 |
| Electrical | |
| Input Voltage | PoE(IEEE802.3af, Class2) |
| Power Consumption | PoE: Max 5.00W, typical 4.00W |
| Mechanical | |
| Color / Material | White / Plastic |
| RAL Code | RAL9003 |
| Product dimensions / weight | Ø99.0x56.0mm(Ø3.9x2.2"), 165g(0.36 lb) |
| DORI | |
| Detect (25PPM/ 8PPF) | 40.2m(12.26ft) |
| Observe (63PPM/ 19PPF) | 16.1m(4.90ft) |
| Recognize (125PPM/ 38PPF) | 8.0m(2.45ft) |
| Identify (250PPM/ 76PPF) | 4.0m(1.23ft) |
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Analytics:
|
Motion Detection
|
|
Camera Style:
|
Dome
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
|
|
Environmental:
|
Indoor
|
|
Image Enhancements:
|
Lens Distortion Correction (LDC)
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Max. Storage Capacity:
|
128 GB
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Product Series:
|
Samsung Hanwha Wisenet Q Series
|
|
Resolution:
|
5MP (3K)
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
