Description

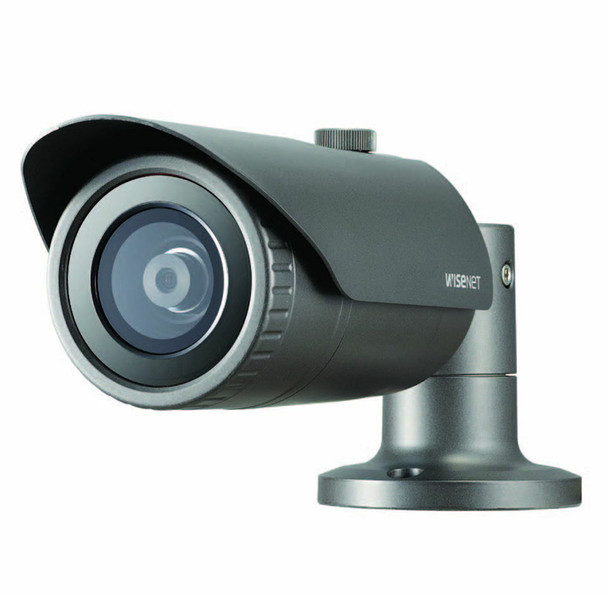

Samsung Hanwha QNO-6022R 2MP IR H.265 Outdoor Bullet IP Security Camera
Key Features:
- Max. 2megapixel (1920 x 1080) resolution
- 0.1Lux (Color), 0Lux (B/W, IR LED on)
- 4mm fixed lens
- Max. 30fps@2M all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Motion detection, Tampering, Defocus detection
- Hallway view (90˚/270˚), LDC support
- Micro SD/SDHC/SDXC memory slot (Max. 128GB)
- IR viewable length 25m
- Weatherproof IP66,
- Vandal Proof IK10
- PoE, 12VDC
Downloads
Datasheet
Samsung-QNO-6022R-Datasheet-A1
Specifications
| Video | |
|---|---|
| Imaging Device | 1/2.8" 2MP CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| Min. Illumination | Color: 0.1Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 113.7 / V: 61.5° / D: 134.5° |
| Focus Control | Fixed |
| Operational | |
| IR Viewable Length | 20m(65.62ft) |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Resolution | 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Memory | 512MB RAM, 256MB Flash |
| Environmental | |
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Electrical | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 7.00W, typical 5.20W 12VDC: Max 6.10W, typical 4.50W |
| Mechanical | |
| Color / Material | Dark grey / Aluminum |
| Product dimensions / weight | Ø70.0x246.0mm(Ø2.76x9.69"), 700g(1.54 Ib) |
| DORI | |
| Detect | 25.1m(82.22ft) |
| Observe | 10.0m(32.89ft) |
| Recognize | 5.0m(16.44ft) |
| Identify | 2.5m(8.22ft) |
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Analytics:
|
Motion Detection
|
|
Aperture:
|
F1.6
|
|
Audio Capability:
|
Two-way Audio
|
|
Audio Compression:
|
G.711ulaw
G.726
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Camera Style:
|
Bullet
|
|
Color:
|
Dark Gray
|
|
Compatible Integration (API):
|
ONVIF Profile S
ONVIF Profile G
ONVIF Profile T
SUNAPI
Wisenet open platform
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Day/Night:
|
Auto
ICR (True Day/Night)
|
|
Dimensions:
|
70.0 x 246.0 mm (2.76 x 9.69 in)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
87.6
|
|
Image Enhancements:
|
Lens Distortion Correction (LDC)
|
|
Languages:
|
English
Turkish
Spanish
Russian
German
Italian
French
|
|
Lens Size:
|
4mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
7 Watts
|
|
Max. FPS and Resolution:
|
30fps at 1080P
|
|
Max. Storage Capacity:
|
128 GB
|
|
Minimum Illumination (B/W):
|
0 lux with IR illumination on
|
|
Minimum Illumination (Color):
|
0.1 Lux at F1.6 1/30s
|
|
Network Interface:
|
1x RJ-45 10M/100M Base-TX Ethernet
|
|
Night Vision Range (ft):
|
82
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
SSNR
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Samsung Hanwha Wisenet Q Series
|
|
Protection Code:
|
IP66
IK10
|
|
RAM:
|
512MB
|
|
Resolution:
|
2MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/5-1/12000s
|
|
Storage Humidity:
|
0% to 90% RH
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Web Browser:
|
Internet Explorer 11
Edge
Firefox
Safari
Chrome
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
