Description

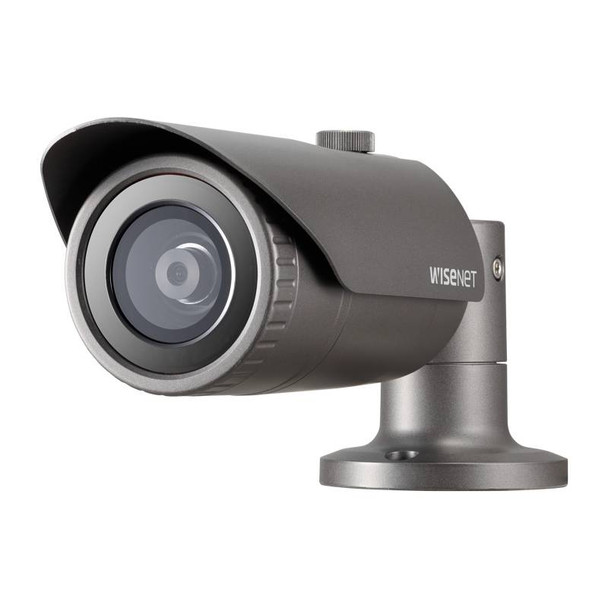

Samsung Hanwha QNO-8010R 5MP H.265 IR Outdoor Bullet IP Security Camera
Key Features:
- Max. 5Megapixel (2592 x 1944) resolution
- 2.8mm fixed lens
- 0.15Lux (Color), 0Lux (B/W, IR LED on)
- Max. 30fps@5MP (H.265 / H.264)
- H.265, H.264, MJPEG codec support, Multiple streaming
- Day & Night, WDR (120dB)
- Tampering, Motion detection, Defocus detection
- Micro SD / SDHC / SDXC memory slot (Max. 128GB)
- Hallway view, WiseStream II support
- IR Viewable length 20m
- IP66, IK10,
- PoE
Downloads
Quick Start Guide
Hanwha-Techwin-(Samsung)-QNO-8010R-Quick-Start-Guide-A1
Specifications
| Video | |
|---|---|
| Imaging Device | 1/2.8" 5MP CMOS |
| Effective Pixels | 2592(H)x1944(V) |
| Min. Illumination | Color: 0.15Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 104.7°/ V: 76.5°/ D: 136.0° |
| Focus Control | Fixed |
| Operational | |
| IR Viewable Length | 20m(65.62ft) |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Resolution | 2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Memory | 512MB RAM, 256MB Flash |
| Environmental | |
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Electrical | |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 7.50W, typical 6.10W |
| Mechanical | |
| Color / Material | Dark grey / Aluminum |
| Product dimensions / weight | Ø70.0x246.0mm(Ø4.33x3.39"), 680g(1.50 lb) |
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Additional Features:
|
Day/Night
|
|
Analytics:
|
Motion Detection
|
|
Camera Style:
|
Bullet
|
|
Color:
|
Black
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Max. Storage Capacity:
|
128 GB
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Product Series:
|
Samsung Hanwha Wisenet Q Series
|
|
Protection Code:
|
IP66
|
|
Resolution:
|
5MP (3K)
|
|
SD Card Support:
|
SD Card Supported
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
