Samsung Hanwha QNV-6022R 2MP IR Outdoor Dome IP Security Camera with 4mm Lens

Part Number: QNV-6022R
Write a Review

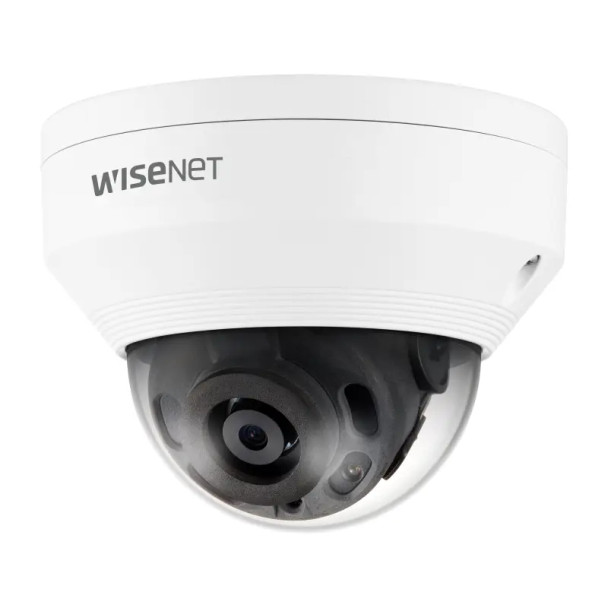

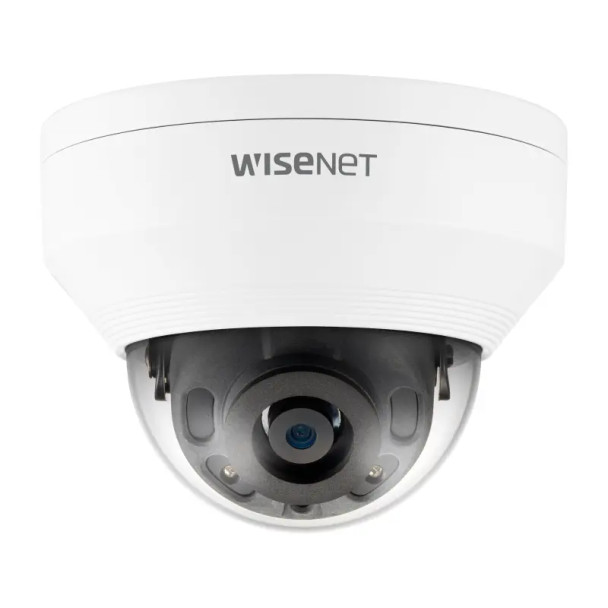

  • Samsung Hanwha QNV-6022R 2MP IR Outdoor Dome IP Security Camera with 4mm Lens - 1
  • Samsung Hanwha QNV-6022R 2MP IR Outdoor Dome IP Security Camera with 4mm Lens - 2
$395.00
$325.43
— You save $69.57

? Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Compression : H.265, H.264, MJPEG,
  • Field of View (Horizontal) : 87.6°Field of View
  • Lens Type : Fixed Lens
  • Lens Size : 4mm Lens
  • Sensor Type : CMOS
  • Max. Storage Capacity : 128 GB Storage Capacity
  • Protection Code : IP66 IK10
  • Color : White
  • Material : Aluminum
  • Environmental : Outdoor
  • Aperture : F1.6

Description

Samsung Hanwha QNV-6022R 2MP IR Outdoor Dome IP Security Camera with 4mm Lens

Monitor an outdoor area with the white QNV-6022R 2MP Network Dome Camera from Hanwha Techwin. This unit uses a 1/2.8" CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. IR LEDs provide up to 82' of night vision. The camera's 4mm fixed lens delivers an 87.6° horizontal field of view. The QNV-6022R is equipped with an audio input. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity

Key Features:

  • 2 Megapixel (1920 x 1080) resolution
  • Built-in 4mm fixed lens
  • 30fps@all resolutions (H.265/H.264)
  • H.265, H.264, MJPEG codec supported, Multiple streaming
  • Day & Night (ICR), WDR (120dB)
  • Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
  • micro SD (128GB) memory slot, PoE / 12V DC
  • IR viewable length 25m, IP66, IK10
  • Hallway view support
  • Analog video out for easy installation
  • LDC support (Lens Distortion Correction)
  • Genetec Stratocast compatible

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Alarm Input:
1 Channel
Alarm Output:
1 Channel
Analytics:
Motion Detection
Aperture:
F1.6
Audio Compression:
G.711ulaw G.726 G.711
Camera Style:
Dome
Color:
White
Compatible Integration (API):
ONVIF Profile S ONVIF Profile G ONVIF Profile T SUNAPI Wisenet open platform
Compression:
H.265 H.264 MJPEG
Durability:
Weatherproof Vandal Proof
Environmental:
Outdoor
Field of View (Horizontal):
87.6
Image Enhancements:
Lens Distortion Correction (LDC)
Languages:
English Turkish
Lens Size:
4mm
Lens Type:
Fixed Lens
Manufacturer Website:
https://hanwhavisionamerica.com/
Material:
Aluminum
Max Power Consumption:
7.4 Watts
Max. Storage Capacity:
128 GB
Network Interface:
1x Rj-45 10/100 Base-T
Night Vision Range (ft):
82
Noise Reduction:
SSNR
Operating Temperature:
-30 °C to 55 °C (-22 °F to 131 °F)
Power Supply:
12 VDC PoE (IEEE 802.3af)
Product Series:
Samsung Hanwha Wisenet Q Series
Protection Code:
IP66 IK10
RAM:
512MB
Resolution:
2MP
SD Card Support:
SD Card Supported
Sensor Type:
CMOS
Shutter Speed:
1/5-1/12000s
Storage Temperature:
-30 °C to 60 °C (-22 °F to 140 °F)
Technology:
Network (IP)
Wide Dynamic Range (WDR):
True WDR 120dB
