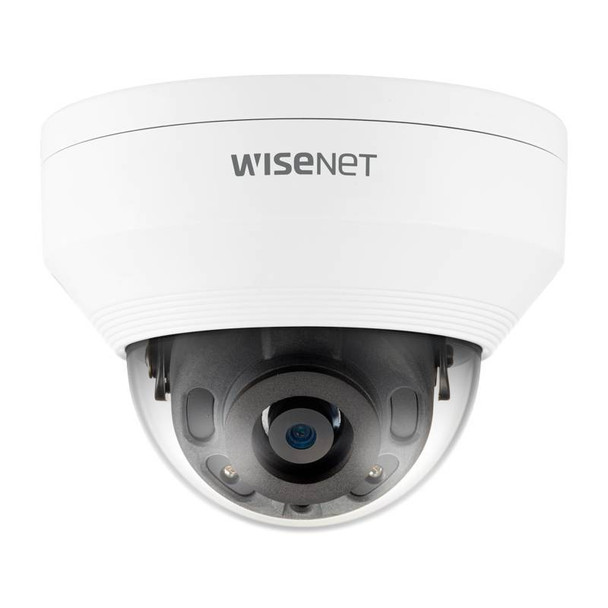

Samsung Hanwha QNV-8020R 5MP H.265 IR Outdoor Dome IP Security Camera

Name: Samsung Hanwha QNV-8020R 5MP H.265 IR Outdoor Dome IP Security Camera
Brand: Hanwha Techwin (Samsung)
SKU: QNV-8020R
Price: 372.38 USD
Availability: InStock

Brand: Hanwha Techwin (Samsung)

Part Number: QNV-8020R

Write a Review

$372.38

✅ Help me pick a security camera

Free Shipping

Fast Shipping

Technical Support

3 Year Warranty

Key Features:

Compression : H.265, MJPEG, H.264,
Lens Type : Fixed Lens
Lens Size : 4mm Lens
Color : White
Environmental : Outdoor

Description
Specifications
Compatible products
Additional Information
Q&A

Description

Samsung Hanwha QNV-8020R 5MP H.265 IR Outdoor Dome IP Security Camera

Key Features:

Max. 5Megapixel (2592 x 1944) resolution
4mm fixed lens
0.15Lux (Color), 0Lux (B/W, IR LED on)
Max. 30fps@5MP (H.265 / H.264)
H.265, H.264, MJPEG codec support, Multiple streaming
Day & Night, WDR (120dB)
Tampering, Motion detection, Defocus detection
Micro SD / SDHC / SDXC memory slot (Max. 128GB)
Hallway view, WiseStream II support
IR Viewable length 25m
IP66, IK10,
PoE

Downloads

Datasheet Hanwha-Techwin-(Samsung)-QNV-8020R-Datasheet-A1

User Manual Hanwha-Techwin-(Samsung)-QNV-8020R-User-Manual-A1

Quick Start Guide Hanwha-Techwin-(Samsung)-QNV-8020R-Quick-Start-Guide-A1

Popular Search

Samsung Hanwha IP Security Cameras

Samsung Hanwha Security Cameras

Samsung Hanwha NDAA Compliant

NDAA Compliant

Specifications

Video
Imaging Device	1/2.8" 5MP CMOS
Effective Pixels	2592(H)x1944(V)
Min. Illumination	Color: 0.15Lux(F1.6, 1/30sec) BW: 0Lux(IR LED on)
Video Out	CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Lens
Focal Length (Zoom Ratio)	4.0mm fixed focal
Max. Aperture Ratio	F1.6
Angular Field of View	H: 79.8°/ V: 58.1°/ D: 105.9°
Focus Control	Fixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range	0˚~350˚ / 0˚~67˚ / 0˚~355˚
Operational
IR Viewable Length	25m(82.02ft)
Camera Title	Displayed up to 85 characters
Day & Night	Auto(ICR)
Backlight Compensation	BLC, WDR, SSDR
Wide Dynamic Range	120dB
Digital Noise Reduction	SSNR
Motion Detection	4ea, polygonal zones
Privacy Masking	6ea, rectangular zones
Gain Control	Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
LDC	Support
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Video Rotation	Flip, Mirror, Hallway view(90˚/270˚)
Analytics	Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
Alarm I/O	Input 1ea / Output 1ea
Alarm Triggers	Analytics, Network disconnect, Alarm input
Alarm Events	File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output
Network
Ethernet	RJ-45(10/100BASE-T)
Video Compression	H.265/H.264: Main/High, MJPEG
Resolution	2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. Framerate	H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz)
Smart Codec	WiseStreamⅡ
Bitrate Control	H.264/H.265: CBR or VBR MJPEG: VBR
Streaming	Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles)
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Security	HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Edge Storage	Micro SD/SDHC/SDXC 1slot 128GB
Application Programming Interface	ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
Web Viewer	Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Memory	512MB RAM, 256MB Flash
Environmental
Operating Temperature / Humidity	-30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C
Storage Temperature / Humidity	-30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH
Certification	IP66, IK10
Electrical
Input Voltage	PoE(IEEE802.3af, Class3)
Power Consumption	PoE: Max 7.20W, typical 5.40W
Mechanical
Color / Material	White / Aluminum
RAL Code	RAL9003
Product dimensions / weight	Ø120.3x91.7mm(Ø4.74x3.61"), 510g(1.12 lb)
DORI
Detect (25PPM/ 8PPF)	62.0m(203.39ft)
Observe (63PPM/ 19PPF)	24.8m(81.36ft)
Recognize (125PPM/ 38PPF)	12.4m(40.68ft)
Identify (250PPM/ 76PPF)	6.2m(20.34ft)

View AllClose

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Camera Style:	Dome
Color:	White
Compression:	H.265 MJPEG H.264
Durability:	Weatherproof Vandal Proof
Environmental:	Outdoor
Key Features:	Night Vision (IR) Motion Detection Day/Night
Lens Size:	4mm
Lens Type:	Fixed Lens
NDAA Compliance:	NDAA Compliant
Product Series:	Wisenet Q Series
Resolution:	5MP (3K)
Technology:	Network (IP)
Warranty:	3-year Manufacturer Warranty
Wide Dynamic Range (WDR):	True WDR 120dB
