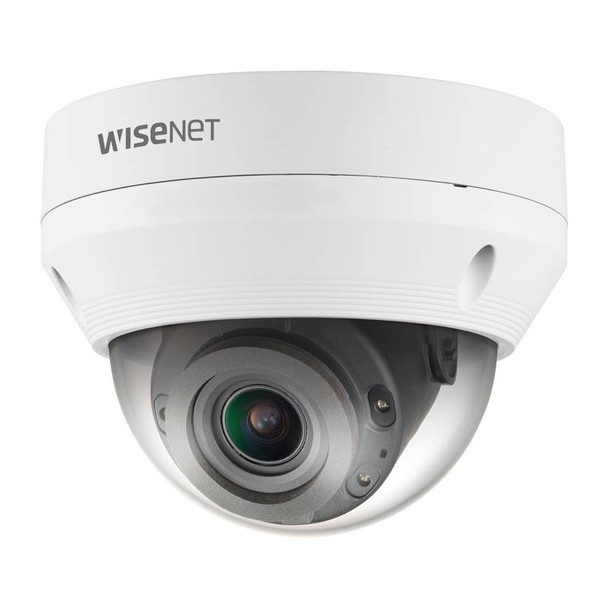

Samsung Hanwha QNV-8080R 5MP H.265 IR Outdoor Dome IP Security Camera

(No reviews yet) Write a Review
SKU:
QNV-8080R
UPC:
8801089165046
  • Samsung Hanwha QNV-8080R 5MP H.265 IR Outdoor Dome IP Security Camera
  • Samsung Hanwha QNV-8080R 5MP H.265 IR Outdoor Dome IP Security Camera
MSRP: $880.20
$486.84
Free Shipping
Fast Shipping
Frequently bought together:

Description

Samsung Hanwha QNV-8080R 5MP H.265 IR Outdoor Dome IP Security Camera

Key Features:

  • Max. 5Megapixel (2592 x 1944) resolution
  • 3.2~10mm(3.1x) motorized varifocal lens
  • 0.15Lux (Color), 0Lux (B/W, IR LED on)
  • Max. 30fps@5MP (H.265 / H.264)
  • H.265, H.264, MJPEG codec support, Multiple streaming
  • Day & Night, WDR (120dB)
  • Tampering, Motion detection, Defocus detection
  • Micro SD / SDHC / SDXC memory slot (Max. 128GB)
  • Hallway view, WiseStream II support
  • IR Viewable length 30m
  • IP66, IK10,
  • PoE
View AllClose

Specifications

Video
Imaging Device1/2.8" 5MP CMOS
Effective Pixels2592(H)x1944(V)
Min. IlluminationColor: 0.15Lux(F1.6, 1/30sec)
BW: 0Lux(IR LED on)
Video OutCVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Lens
Focal Length (Zoom Ratio)3.2~10mm(3.1x) motorized varifocal
Max. Aperture RatioF1.6(Wide)~F2.9(Tele)
Angular Field of ViewH: 100.3°(Wide)~31.2°(Tele) / V: 72.3°(Wide)~23.5°(Tele) / D: 133.1°(Wide)~38.8°(Tele)
Focus ControlSimple focus
Lens TypeDC auto iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range0˚~350˚ / 0˚~67˚ / 0˚~355˚
Operational
IR Viewable Length30m(98.42ft)
Camera TitleDisplayed up to 85 characters
Day & NightAuto(ICR)
Backlight CompensationBLC, WDR, SSDR
Wide Dynamic Range120dB
Digital Noise ReductionSSNR
Motion Detection4ea, polygonal zones
Privacy Masking6ea, rectangular zones
Gain ControlLow / Middle / High
White BalanceATW / AWC / Manual / Indoor / Outdoor
LDCSupport
Electronic Shutter SpeedMinimum / Maximum / Anti flicker (1/5~1/12,000sec)
Video RotationFlip, Mirror, Hallway view(90˚/270˚)
AnalyticsDefocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
Alarm I/OInput 1ea / Output 1ea
Alarm TriggersAnalytics, Network disconnect, Alarm input
Alarm EventsFile upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/High, MJPEG
Resolution2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. FramerateH.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 15fps/12fps(60Hz/50Hz)
Smart CodecWiseStreamⅡ
Bitrate ControlH.264/H.265: CBR or VBR
MJPEG: VBR
StreamingUnicast(6 users) / Multicast
Multiple streaming(Up to 3 profiles)
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
SecurityHTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Edge StorageMicro SD/SDHC/SDXC 1slot 128GB
Application Programming InterfaceONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
Web ViewerSupported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Memory512MB RAM, 256MB Flash
Environmental
Operating Temperature / Humidity-30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH
* Start up should be done at above -20°C
Storage Temperature / Humidity-30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH
CertificationIP66, IK10
Electrical
Input VoltagePoE(IEEE802.3af, Class3)
Power ConsumptionPoE: Max 8.90W, typical 6.60W
Mechanical
Color / MaterialWhite / Aluminum
RAL CodeRAL9003
Product dimensions / weightØ137.0x106.1mm(Ø5.39x4.18"), 700g(1.54 lb)
DORI
Detect (25PPM/ 8PPF)Wide: 43.3m(141.94ft) / Tele: 185.7m(609.09ft)
Observe (63PPM/ 19PPF)Wide: 17.3m(56.78ft) / Tele: 74.3m(243.64ft)
Recognize (125PPM/ 38PPF)Wide: 8.7m(28.39ft) / Tele: 37.1m(121.82ft)
Identify (250PPM/ 76PPF)Wide: 4.3m(14.19ft) / Tele: 18.6m(60.91ft)
View AllClose

Additional Information

Warranty:
3-year Manufacturer Warranty
Compression:
H.265 MJPEG H.264
Camera Style:
Dome
Technology:
Network (IP)
Resolution:
5MP (3K)
Environmental:
Outdoor
Color:
White
Lens Size:
3.2~10mm
Lens Type:
Motorized (Automatic Zoom) Lens
NDAA Compliant:
