Description

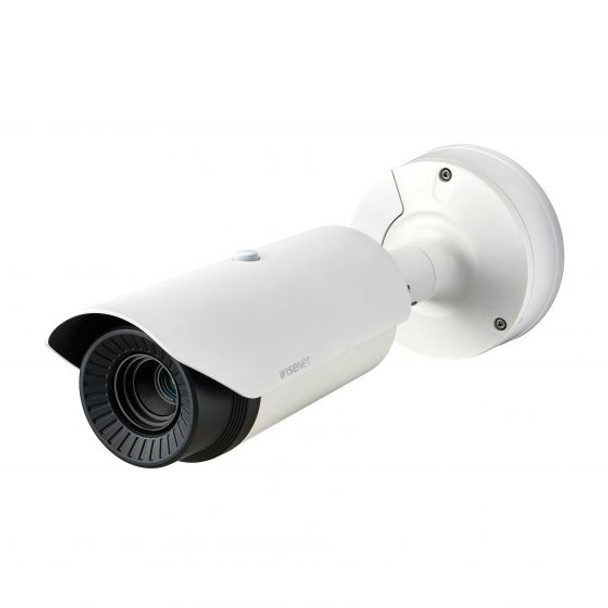

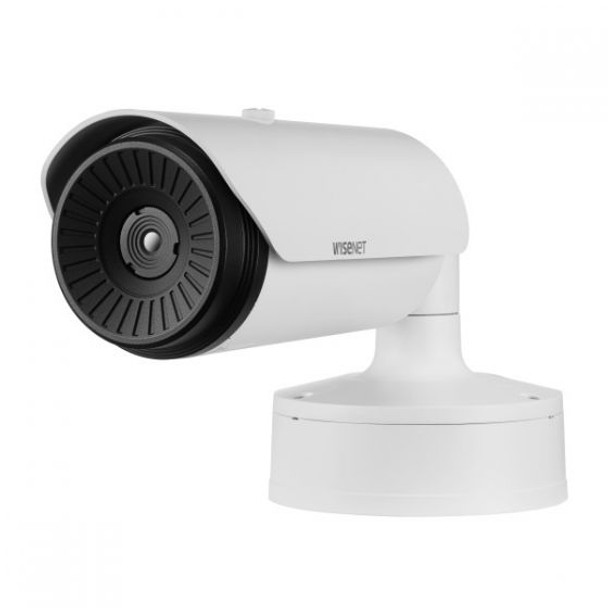

Samsung Hanwha TNO-3010T QVGA Outdoor Bullet Thermal IP Security Camera, 2.7mm Fixed Lens
In challenging weather (fog, smoke, rain) or lighting conditions (complete darkness, backlighting), it can be difficult to distinguish people or objects in a complex background by a visible camera or a human eye. Wisenet T series thermal cameras provide high contrast images based on temperature differences between the object and background, to easily detect incidents.
Key Features:
- Thermal QVGA (320 x 240) resolution
- 30fps@all resolutions(H.265, H.264, MJPEG)
- H.265, H.264, MJPEG triple codec support
- WiseStream II support
- 7 selectable color palettes
- Tampering, Loitering, Directional / Virtual Fence Line detection, Enter/ Exit, (Dis) Appear, Audio detection, Motion detection, Sound classification, Shock detection, Temperature change detection
- 2-way bi-directional audio & Alarm I/O support
- SD / SDHC / SDXC memory slot (Maximum 256GB)
- Operating temperature -40?F ~ +140?F
- PoE, 24V AC, 12V DC / IP66, NEMA4X, IK10
Downloads
Quick Start Guide
Hanwha-Techwin-(Samsung)-TNO-3010T-Quick-Start-Guide-A1
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
2 Channel
|
|
Aperture:
|
F1.0
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711ulaw
G.726
ADPCM
AAC-LC
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Camera Style:
|
Bullet
|
|
Certifications:
|
UL Listed
|
|
Compatible Integration (API):
|
SUNAPI
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Dimensions:
|
147.51 x 375.3 mm (5.81 x 14.78 in)
|
|
Durability:
|
Weatherproof
Vandal Resistant
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
92
|
|
Iris:
|
Fixed Iris
|
|
Lens Size:
|
2.7mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
6.7 Watts
8 Watts
|
|
Max. FPS and Resolution:
|
30fps at 320 x 240
|
|
Max. Storage Capacity:
|
256 GB
|
|
Mounting:
|
Wall Mount
Pole Mount
Ceiling Mount
Corner Mount
|
|
NDAA Compliance:
|
NDAA Compliant
|
|
Network Interface:
|
1x Rj-45 10/100 Base-T
|
|
Pixel Size (μm):
|
12
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
24 VAC
|
|
Product Series:
|
Samsung Hanwha Wisenet T Series
|
|
Protection Code:
|
IP66
NEMA 4X
IK10
|
|
Remote Users:
|
Up to 20
|
|
Resolution:
|
QVGA
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Type:
|
Thermal Sensor
|
|
Special Technologies:
|
Hanwha WiseStream II
|
|
Specialized Camera Feature:
|
Thermal
|
|
Storage Humidity:
|
0% to 90% RH
|
|
Storage Temperature:
|
-50 °C to 60 °C (-58 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Thermal Image Sensor:
|
Uncooled Micro Bolometer
|
|
Thermal Sensitivity:
|
NETD <60 mK
|
|
Video Output:
|
1x CVBS
|
|
Warranty:
|
3-year Manufacturer Warranty
|
