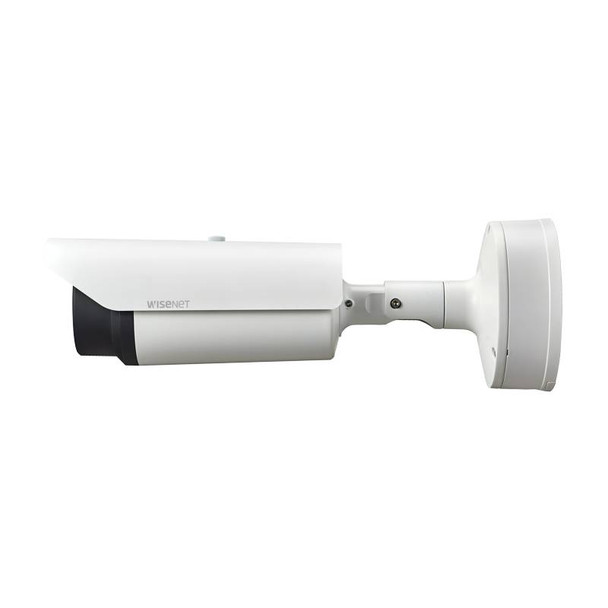

Samsung Hanwha TNO-4040T VGA H.265 Thermal IP Security Camera

(No reviews yet) Write a Review
SKU:
TNO-4040T
UPC:
8801089128348
  • Samsung Hanwha TNO-4040T VGA H.265 Thermal IP Security Camera
  • Samsung Hanwha TNO-4040T VGA H.265 Thermal IP Security Camera
  • Samsung Hanwha TNO-4040T VGA H.265 Thermal IP Security Camera
$8,326.31
$4,605.26
Free Shipping
Technical Support
3 Year Warranty
  • Compression : H.265, MJPEG, H.264,
  • Lens Type : Fixed Lens
  • Lens Size : 19mm Lens
  • Environmental : Outdoor
  • Weatherproof : Weatherproof

Description

Samsung Hanwha TNO-4040T VGA H.265 Thermal IP Security Camera

Key Features:

  • Max. 640 x 480 resolution support
  • Built-in 19mm fixed lens
  • H.265, H.264, MJPEG codec
  • Max. 30fps@all resolutions (H.265, H.264, MJPEG)
  • Motion detection, Handover, Tampering, Loitering
  • Directional detection, Audio detection, Shock detection
  • SD / SDHC / SDXC memory slot (Max. 256GB)
  • Hallway View, WiseStreamII support
  • PoE, 24V AC, 12V DC
  • IP66, NEMA4X, IK10
Samsung Hanwha TNO-4040T VGA H.265 Thermal IP Security Camera
Samsung Hanwha TNO-4040T VGA H.265 Thermal IP Security Camera
Samsung Hanwha TNO-4040T VGA H.265 Thermal IP Security Camera
Samsung Hanwha TNO-4040T VGA H.265 Thermal IP Security Camera
Detect people and objects 24/7 with thermal cameras

In challenging weather(fog, smoke, rain) or lighting conditions(complete darkness, backlight), it can be difficult to distinguish people or objects in a complex background by a visible camera or a human eye. For accurate monitoring purposes, a professional surveillance system is required. Wisenet thermal cameras are the excellent choice : they provide high contrast images based on temperature differences between the object and background, so that users can detect incidents more easily. The advanced thermal imaging technology provides high contrast to make the unseen details visible without additional lighting.

Samsung Hanwha TNO-4040T VGA H.265 Thermal IP Security Camera
Multiple color palettes

Wisenet thermal cameras provide seven different types of color palette for users to select the best image in various situations. Each color palette has a specific set of colors which change according to the temperature range of the scene.

Samsung Hanwha TNO-4040T VGA H.265 Thermal IP Security Camera
Long detection range up to 3,157m

The main task of the thermal camera is to detect events that occur at long distances. Wisenet thermal cameras are equipped with a 35/19/13mm lens(Horizontal FoV 17˚/32˚/49˚) to detect vehicles up to 3,157m away. The camera provides an image with high color contrast according to the temperature, so it can easily distinguish objects and background from a long distance. At closer range it can recognize the type of object or identify the characteristic by capturing details.

Samsung Hanwha TNO-4040T VGA H.265 Thermal IP Security Camera
Secure a wide variety of applications

Wisenet thermal cameras can be a powerful tool when monitoring applications where there is very little light, due to their ability to create images based on heat. Thermal cameras are especially applicable in manufacturing and industrial facilities, air and seaports, and mining areas.

Samsung Hanwha TNO-4040T VGA H.265 Thermal IP Security Camera
Enhanced video & audio analytics

Wisenet T thermal cameras offers reliable video and audio analytics for efficient monitoring. The featured analytics improves the overall security system’s efficiency by automatically notifying users when abnormal behavior is detected.

Temperature change detection: Drastic temperature changes (20 / 40 /60 /80 /100°C difference from current temperature) can be detected in advance to prevent incidents occurring.

* An alarm will be sent when a drastic temperature change is detected for a duration of 2 minutes.

  • Virtual line: Alarm events are automatically triggered when the camera detects the moving object crossing the virtual line.
  • Motion Detection: An alarm is triggered when movement is detected within the defined user area.
  • Shock detection: Shock detection protects the camera when events such as vibrations, quivers and shocks occur.
  • Sound classification: Sound classification can help users responds immediately in dangerous situations, by classifying sounds such as gunshots, glass breaking, screams and explosions.
Improve bandwidth by up to 99% using WiseStream II

When Hanwha Techwin’s original video compression technology WiseStream II is combined with H.265 compression, the bitrate data data is reduced by up to 99% compared to current H.264 technology. The costs of configuring and maintaining the system are also greatly reduced, while still maintaining the same pixels and high quality.

Samsung Hanwha TNO-4040T VGA H.265 Thermal IP Security Camera
Handover to PTZ

The handover feature allows a PTZ camera* to receive an alarm from a thermal camera operating on the same IP video surveillance system. Once the notification is received, the PTZ camera will zoom into the assigned camera pre-set location. With this feature, PTZ cameras support the thermal camera by providing high resolution images whenever a specific detail is required.

* XNP-6370RH/6320H/6320, PNP-9200RH

Samsung Hanwha TNO-4040T VGA H.265 Thermal IP Security Camera
Broad thermal monitoring with positioning

The TNU-4051T / 4041T combines a thermal imaging camera and a positioning unit capable of monitoring a broad range, with its 360˚ endless pan and -90˚ to +40˚ tilt. In addition, the camera’s flexibility is increased by 300 preset positions, allowing users to save the settings for pan / tilt functions and automatically view the location desired.

Samsung Hanwha TNO-4040T VGA H.265 Thermal IP Security Camera
Temperature measurement to monitor incidents

The Wisenet thermal radiometric camera has added a feature to detect the temperature range of -20˚C to +130˚C. Alarms are generated and sent to users in case the temperature of three areas in the monitoring screen is above or below a defined value or the temperature increases or decreases beyond the preset range. In addition, the screen displays average/minimum/maximum temperature of the three areas for more thorough temperature measurement.

Selected temperature range displayed in vivid colors

Using hybrid color palette, the selected range of temperature can be displayed in vivid colors, helping users observe monitoring areas with greater ease. The temperature out of the defined range is expressed in white hot color of black and white, ensuring the camera covers the entire monitoring areas with thermal detection.

Samsung Hanwha TNO-4040T VGA H.265 Thermal IP Security Camera

Note: Bridge firmware is required to upgrade from 1.00~1.2X versions to the latest version.

View AllClose

Specifications

Video
Imaging DeviceUncooled micro bolometer
NETD<50mK
Pixel size17㎛
Video OutCVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio)19mm fixed focal
Max. Aperture RatioF1.0
Angular Field of ViewH: 32° / V: 24.3° / D: 39.2°
Min. Object Distance11m(36.09ft)
Focus ControlFixed
Operational
Camera TitleDisplayed up to 85 characters
Digital Image StabilizationSupport(built-in gyro sensor)
Motion Detection8ea, 8point polygonal zones
Privacy Masking32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic
Video RotationFlip, Mirror, Hallway view(90˚/270˚)
AnalyticsDirectional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature ditection, Sound classification, Shock detection
Alarm I/OInput 1ea / Output 2ea
Alarm TriggersAnalytics, Network disconnect, Alarm input
Alarm EventsFile upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Handover
Audio InSelectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio OutLine out, Max.output level: 1Vrms
Color PalettesWhitehot, Blackhot, Rainbow, Sepia, Red, Iron, Wisenet
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Resolution640x480, 640x360, 320x240
Max. FramerateH.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Smart CodecManual(5ea area), WiseStreamⅡ
Bitrate ControlH.264/H.265: CBR or VBR
MJPEG: VBR
StreamingUnicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Audio CompressionG.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
SecurityHTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Edge StorageMicro SD/SDHC/SDXC 1slot 256GB
Application Programming InterfaceONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
Web ViewerSupported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Memory1024MB RAM, 256MB Flash
Environmental
Operating Temperature / Humidity-40°C ~ +60°C (-40°F ~ +140°F) / 90% RH 이하
Storage Temperature / Humidity-50°C ~ +60°C (-58°F ~ +140°F) / 90% RH 이하
CertificationIP66, IK10, NEMA4X
Electrical
Input VoltagePoE(IEEE802.3af, Class3), 24VAC, 12VDC
Power ConsumptionPoE: Max. 10W, typical 8.6W
12VDC: Max. 9W, typical 7.5W
24VAC: Max. 10.5W, typical 8.9W
Mechanical
Color / MaterialWhite / Aluminum
RAL CodeRAL9003
Product dimensions / weightΦ101.97x401.8mm(4.01x15.82") / 3175g(7.01 lb)
View AllClose

Compatible products

Additional Information

Camera Style:
Bullet
Compression:
H.265 MJPEG H.264
Environmental:
Outdoor
Key Features:
NEMA 4X Motion Detection
Lens Size:
19mm
Lens Type:
Fixed Lens
NDAA Compliant:
Resolution:
VGA
Technology:
Network (IP)
Vandal Proof:
Vandal Proof
Warranty:
3-year Manufacturer Warranty
Weatherproof:
Weatherproof
View AllClose
