Samsung Hanwha TNU-4041T VGA Thermal Positioning IP Security Camera

Write a Review
SKU:
TNU-4041T
Maximum Purchase:
1000 units
  • Samsung Hanwha TNU-4041T VGA Thermal Positioning IP Security Camera
  • Samsung Hanwha TNU-4041T VGA Thermal Positioning IP Security Camera
$16,950.00
$9,375.00
— You save $7,575.00
Frequently bought together:

Description

Samsung Hanwha TNU-4041T VGA Thermal Positioning IP Security Camera

Key Features:

  • Max. 640 x 480 resolution support
  • Built-in 19mm fixed lens
  • H.265, H.264, MJPEG codec, WiseStreamII support
  • Max. 30fps@all resolutions (H.265, H.264)
  • Tampering, Loitering, Directional Detection, Virtual Line, Enter/Exit, Appear/Disappear, Audio Detection, Motion Detection, Handover, Sound Classification, Shock detection,Temperature change detection
  • microSD/SDHC/SDXC memory slot (Max. 256GB)
  • 24V AC,
  • NEMA 4X,
  • Vandal Proof IK10
  • Weatherproof IP66
Detect people and objects 24/7 with thermal cameras

In challenging weather(fog, smoke, rain) or lighting conditions(complete darkness, backlight), it can be difficult to distinguish people or objects in a complex background by a visible camera or a human eye. For accurate monitoring purposes, a professional surveillance system is required. Wisenet thermal cameras are the excellent choice : they provide high contrast images based on temperature differences between the object and background, so that users can detect incidents more easily. The advanced thermal imaging technology provides high contrast to make the unseen details visible without additional lighting.

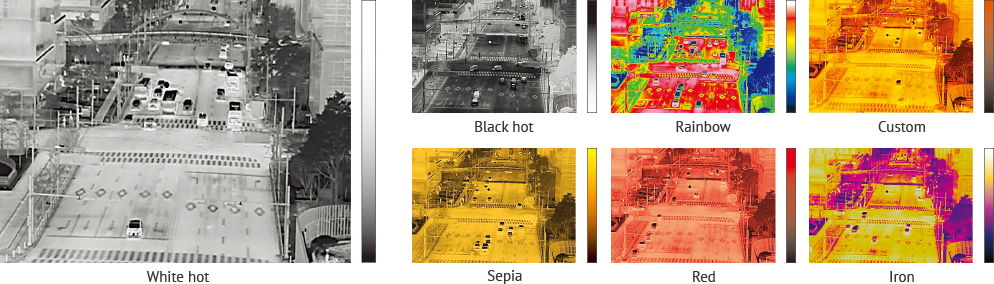

Multiple color palettes

Wisenet thermal cameras provide seven different types of color palette for users to select the best image in various situations. Each color palette has a specific set of colors which change according to the temperature range of the scene.

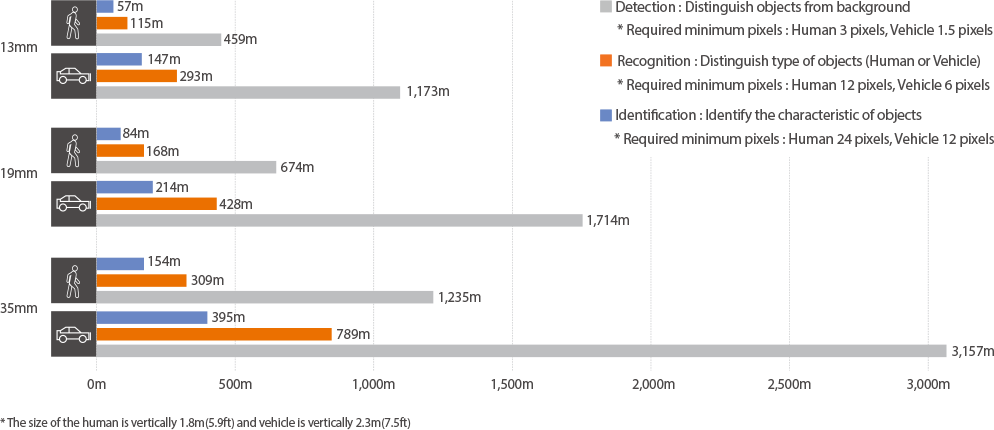

Long detection range up to 3,157m

The main task of the thermal camera is to detect events that occur at long distances. Wisenet thermal cameras are equipped with a 35/19/13mm lens(Horizontal FoV 17˚/32˚/49˚) to detect vehicles up to 3,157m away. The camera provides an image with high color contrast according to the temperature, so it can easily distinguish objects and background from a long distance. At closer range it can recognize the type of object or identify the characteristic by capturing details.


Secure a wide variety of applications

Wisenet thermal cameras can be a powerful tool when monitoring applications where there is very little light, due to their ability to create images based on heat. Thermal cameras are especially applicable in manufacturing and industrial facilities, air and seaports, and mining areas.


Enhanced video & audio analytics

Wisenet T thermal cameras offers reliable video and audio analytics for efficient monitoring. The featured analytics improves the overall security system’s efficiency by automatically notifying users when abnormal behavior is detected.

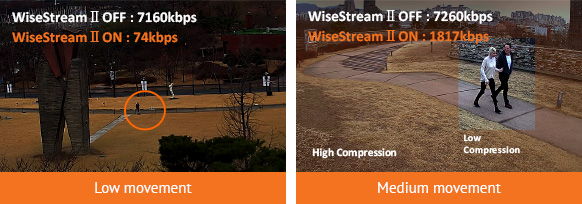

Improve bandwidth by up to 99% using WiseStream II

When Hanwha Techwin’s original video compression technology WiseStream II is combined with H.265 compression, the bitrate data data is reduced by up to 99% compared to current H.264 technology. The costs of configuring and maintaining the system are also greatly reduced, while still maintaining the same pixels and high quality.


Handover to PTZ

The handover feature allows a PTZ camera* to receive an alarm from a thermal camera operating on the same IP video surveillance system. Once the notification is received, the PTZ camera will zoom into the assigned camera pre-set location. With this feature, PTZ cameras support the thermal camera by providing high resolution images whenever a specific detail is required.
* XNP-6370RH/6320H/6320, PNP-9200RH



Note: Bridge firmware is required to upgrade from 1.00~1.2X versions to the latest version. For more details, please refer to the [UPGRADE NOTIFICATION] or [Release Note] included with your firmware (ZIP file).

View AllClose

Specifications

Video
Imaging DeviceUncooled micro bolometer
Effective Pixels640(H)x480(V)
NETD<50mK
Pixel size17㎛
Video OutCVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Lens
Focal Length (Zoom Ratio)19mm Fixed
Max. Aperture RatioF1.0
Angular Field of ViewH:32˚ / V:24.3˚ / D:39.2˚
Min. Object Distance11m
Focus ControlFixed
Pan / Tilt / Rotate
Pan Range360˚ Endless
Pan Speed0.025°~120°/sec
Tilt Range-90˚ ~40˚
Tilt Speed0.025°~40°/sec
SequencePreset(300ea), Group(6ea)
Preset Accuracy0.3˚
AzimuthSupport
Operational
Camera TitleDisplayed up to 85 characters
Digital Image StabilizationSupport(built-in gyro sensor)
Motion Detection8ea, 8point polygonal zones
Color PalettesWhitehot, Blackhot, Rainbow, Sepia, Red, Iron, Wisenet
AnalyticsDirectional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature ditection, Sound classification, Shock detection
Alarm I/OInput 1ea / Output 1ea
Alarm TriggersAnalytics, Network disconnect, Alarm input
Alarm EventsFile upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
PTZ Preset
Audio InSelectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio OutLine out, Max.output level: 1Vrms
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Resolution640x480, 640x360, 320x240
Max. FramerateH.265/H.264 : Max. 30fps at all resolutions
Motion JPEG : Max. 30fps
Smart CodecManual(5ea area), WiseStreamⅡ
Bitrate ControlH.264/H.265: CBR or VBR
MJPEG: VBR
StreamingUnicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Audio CompressionG.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
SecurityHTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Edge StorageMicro SD/SDHC/SDXC 1slot 256GB
Application Programming InterfaceONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
Web ViewerSupported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Memory1024MB RAM, 256MB Flash
Environmental
Operating Temperature / Humidity-40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity-50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
CertificationIP66, IK10, NEMA4X
Electrical
Input Voltage24VAC
Power Consumption24VAC: Max 84W(Heater on), Max 62W(Heater off)
Mechanical
Color / MaterialWhite / Aluminum
RAL CodeRAL9003
Product dimensions / weight(W)219×(H)528×(D)335mm, 11.7Kg
