Description

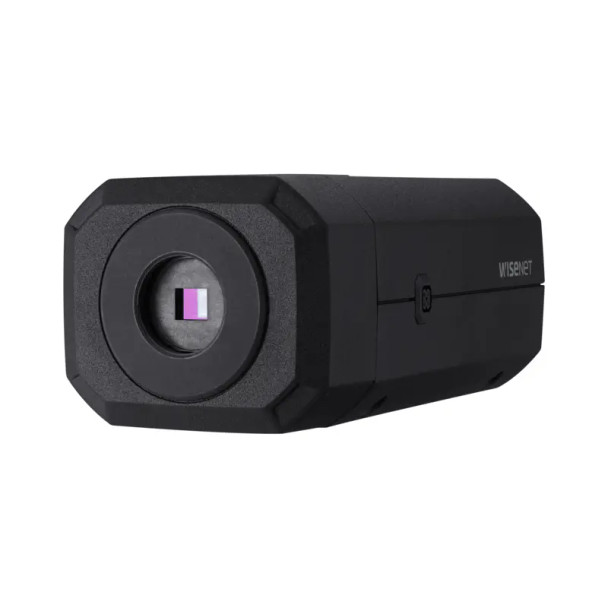

Samsung Hanwha XNB-6003 2MP Indoor Box IP Security Camera, No Lens Included
Key Features:
- 2MP resolution
- Color: 0.007 Lux (F1.2, 1/30sec, 30IRE), BW: 0.0007 Lux (F1.2, 1/30sec, 30IRE)
- Maximum 120 fps (H.265/H.264)
- Day & Night (ICR), extremeWDR (150dB)
- WiseNR(Based on AI engine), WiseStream III(Based on AI engine)
- Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate)
- IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
- Analytics events : Defocus detection, Motion detection, Tampering, Fog detection
- Audio detection, Sound classification, Shock detection, Appear/Disappear
Downloads
Datasheet
Samsung Hanwha XNB-6003 Datasheet
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Analytics:
|
Motion Detection
Audio Detection
Object Detection
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711ulaw
G.726
G.711
G.711a
ADPCM
AAC-LC
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Box
|
|
Certifications:
|
UL Listed
|
|
Color:
|
Black
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
SUNAPI
Wisenet open platform
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
Auto
|
|
Dimensions:
|
81 x 67 x 165 mm (3.19 x 2.64 x 6.48 in)
|
|
Environmental:
|
Indoor
|
|
LED Indicator:
|
|
|
Lens Type:
|
No Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
9.8 Watts
|
|
Max. FPS and Resolution:
|
120fps at 1080p
|
|
Max. Storage Capacity:
|
1 TB
|
|
Minimum Illumination (B/W):
|
0.0007 Lux
|
|
Minimum Illumination (Color):
|
0.007 Lux
|
|
Network Interface:
|
1x RJ-45 10/100/1000 Base-T
|
|
Noise Reduction:
|
WiseNR Ⅱ
SSNR V
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Samsung Hanwha Wisenet X Series
|
|
RAM:
|
2GB
|
|
Reset Button:
|
|
|
Resolution:
|
2MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
2-1/12000s
|
|
Special Technologies:
|
Hanwha WiseStream III
|
|
Technology:
|
Network (IP)
|
|
Video Output:
|
1x Micro USB Type B
1x CVBS
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
Extreme WDR
WDR 150dB
|
