Description

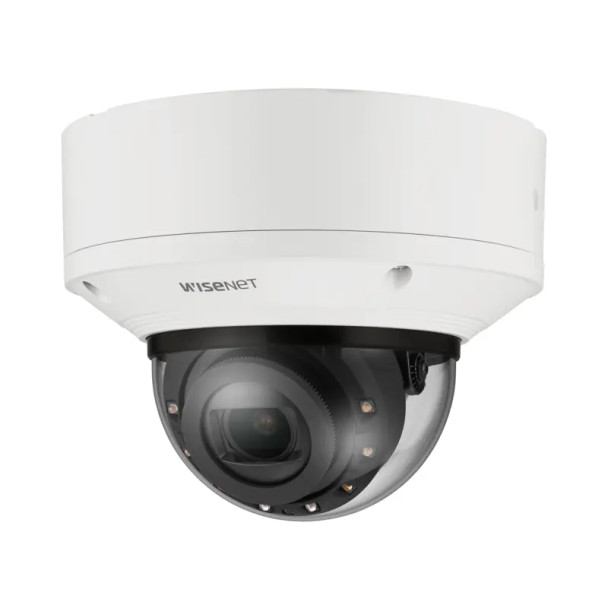

Samsung Hanwha XND-8083RV 6MP Night Vision Indoor Dome IP Security Camera with AI
Key Features:
- 6MP resolution
- 4.4~9.3mm (2.1x) motorized varifocal
- Color: 0.04 Lux (F1.3, 1/30sec, 30IRE), 0 Lux (IR LED on)
- Maximum 30fps (H.265/H.264)
- WiseIR: IR viewable length 50m (164.04ft)
- Day & Night (ICR), extremeWDR (120dB)
- Hard-coated dome bubble
- WiseNRII (Based on AI engine)
- WiseStreamIII (Based on AI engine)
- Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate)
- IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
- Analytics events : Defocus detection, Motion detection, Tampering, Fog detection
- Audio detection, Sound classification, Shock detection, Appear/Disappear
- IP52, IK10
Downloads
Quick Start Guide
Hanwha-Techwin-(Samsung)-XND-8083RV-Quick-Start-Guide-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm I/O:
|
2x Configurable I/O Ports
|
|
Analytics:
|
Intelligent Video Analysis (IVA)
Motion Detection
Audio Detection
Object Detection
|
|
Aperture:
|
F1.3
F2.15
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711ulaw
G.726
G.711
ADPCM
AAC-LC
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
UL Listed
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
SUNAPI
Wisenet open platform
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
ICR (True Day/Night)
|
|
Detect (ft):
|
73.47
507.18
|
|
Dimensions:
|
160 x 125 mm (6.30 x 4.92 in)
|
|
Durability:
|
Vandal Proof
|
|
Environmental:
|
Indoor
|
|
Field of View (Horizontal):
|
112.1
47.5
|
|
IR Corrected:
|
IR Corrected
|
|
Identify (ft):
|
7.35
50.72
|
|
Iris:
|
P-iris
|
|
Languages:
|
English
Spanish
French
Italian
German
Chinese
Japanese
Russian
Swedish
Portuguese
Czech
Polish
Turkish
Dutch
Greek
Hungarian
|
|
Lens Size:
|
4.4~9.3mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Material:
|
Aluminum
Hard-coated poly-carbonate
|
|
Max Power Consumption:
|
22.5 Watts
|
|
Max. FPS and Resolution:
|
30fps at 3328 x 1872
|
|
Max. Storage Capacity:
|
1 TB
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.04 Lux
|
|
Mounting:
|
Wall Mount
Pole Mount
Ceiling Mount
|
|
Network Interface:
|
1x RJ-45 10/100/1000 Base-T
|
|
Night Vision Range (ft):
|
164
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
WiseNR Ⅱ
SSNR V
|
|
Observe (ft):
|
29.39
202.87
|
|
Optical Zoom:
|
2.1x Optical Zoom
|
|
Power Supply:
|
PoE+ (IEEE802.3at Class 4)
12 VDC
|
|
Product Series:
|
Samsung Hanwha Wisenet X Series
|
|
Protection Code:
|
IK10
IP52
|
|
RAM:
|
4GB
|
|
Recognize (ft):
|
14.69
101.44
|
|
Resolution:
|
6MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
2-1/12000s
|
|
Special Technologies:
|
Hanwha WiseStream III
|
|
Technology:
|
Network (IP)
|
|
Video Output:
|
1x CVBS
1x Micro USB Type B
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
