Description

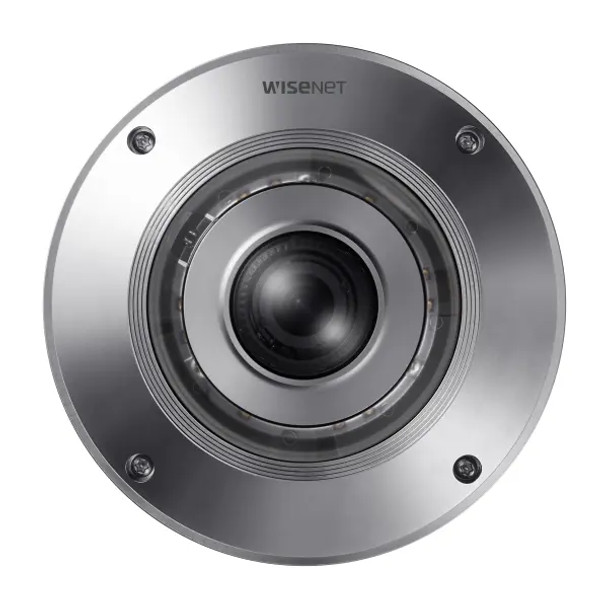

Samsung Hanwha XNF-9010RS 12MP Night Vision Stainless Steel Outdoor Fisheye IP Security Camera
Key Features:
- 1/2.3" 12MP CMOS
- 1.08mm fixed focal lens
- Stereo graphic type lens - enhanced resolution for the peripheral regions
- H.265, H.264, MJPEG codec supported
- Fisheye, Single panorama, Double panorama, Quad view
- On board dewarping, Digital PTZ
- extreme WDR (120dB), WiseStream II support
- Wise IR - IR viewable length 8m (26.25ft)
- Virtual channel support
- Plugin support, selectable I/O port
- Video Analytics, Heatmap, People counting
- Queue management
- Stainless Steel
- Motion detection, Handover
- IP66, IP67, IP6K9K, NEMA4X, IK10, IK10+ (it can resist impacts of 40 joules), NSF/ANSI Standard 169 – Special Purpose Food Equipment and Devices
Downloads
Quick Start Guide
Hanwha-Techwin-(Samsung)-XNF-9010RS-Quick-Start-Guide-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm I/O:
|
2x Configurable I/O Ports
|
|
Analytics:
|
People Counting
Motion Detection
|
|
Aperture:
|
F2.2
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
G.711ulaw
G.726
ADPCM
AAC-LC
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Fisheye
|
|
Certifications:
|
UL Listed
|
|
Color:
|
Silver
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
SUNAPI
Wisenet open platform
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
ICR (True Day/Night)
|
|
Detect (ft):
|
114.49
|
|
Dimensions:
|
167.9 x 72.1 mm (6.61 x 2.83 in)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
Indoor
|
|
Field of View (Horizontal):
|
187
|
|
Identify (ft):
|
11.48
|
|
Languages:
|
English
Spanish
|
|
Lens Angle Type:
|
Ultra Wide Lens
Panoramic
|
|
Lens Size:
|
1.08mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Material:
|
Marine-Grade Stainless Steel (SUS316L)
Nylon
|
|
Max Power Consumption:
|
12.95 Watts
|
|
Max. FPS and Resolution:
|
30fps at 3000 x 3000
|
|
Max. Storage Capacity:
|
1 TB
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.39 lux
|
|
Mounting:
|
Ceiling Mount
|
|
Network Interface:
|
1x Rj-45 10/100 Base-T
|
|
Night Vision Range (ft):
|
26.25
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
SSNR V
|
|
Observe (ft):
|
45.60
|
|
Power Supply:
|
PoE (IEEE 802.3af)
12 VDC
|
|
Product Series:
|
Samsung Hanwha Wisenet X Series
|
|
Protection Code:
|
IP66
IP67
IP6K9K
NEMA 4X
IK10
IK10 Plus
|
|
RAM:
|
4GB
|
|
Recognize (ft):
|
22.96
|
|
Resolution:
|
12MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.3"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/5-1/12000s
|
|
Special Technologies:
|
Hanwha WiseStream II
|
|
Specialized Camera Feature:
|
Onboard Dewarping
|
|
Technology:
|
Network (IP)
|
|
Video Output:
|
1x CVBS
1x Micro USB Type B
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
