Description

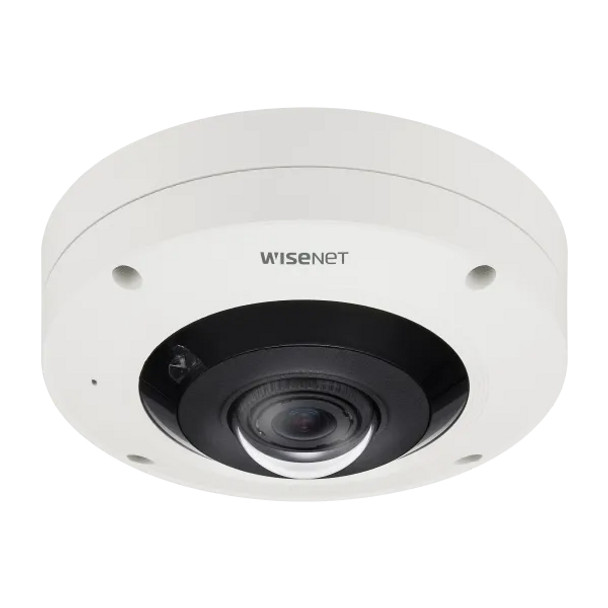

Samsung Hanwha XNF-9010RV 12MP Night Vision Outdoor Fisheye IP Security Camera
Key Features:
- 3008 x 3008 resolution, 30fps
- 1.08mm Stereographic type lens, enhanced resolution for the peripheral regions (187⁰X187⁰) W/ simple focus
- Built-in IR for up coverage up to 10m with Wise IR multi-zone IR management
- Triple Codec: H.265, H.264 and MJPEG multiple streaming
- On board dewarping, Digital PTZ
- Fisheye, Single panorama, Double panorama, Quad view
- Multiple virtual channels for easy dewarping views
- WiseStream II compression technology
- extreme WDR 120dB @30fps
- Loitering, directional detection, fog detection, tampering, motion detection, object enter or exit an area
- Sound classification, heatmap, people counting and queue line management
- Dual SD cards
- Power: PoE or 12VDC
- IP66/IK10/NEMA4X
- Direct connect female shielded RJ45 connector for easy installation without pigtail
- USB & analog video output for easy installation
- Hard coated dome cover for durability
Downloads
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm I/O:
|
2x Configurable I/O Ports
|
|
Analytics:
|
People Counting
Motion Detection
|
|
Aperture:
|
F2.2
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
G.711ulaw
G.726
ADPCM
AAC-LC
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Fisheye
|
|
Certifications:
|
EN50155 class T3
UL Listed
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
SUNAPI
Wisenet open platform
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
ICR (True Day/Night)
|
|
Detect (ft):
|
114.49
|
|
Dimensions:
|
160 x 72 mm (6.29 x 2.83 in)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
Indoor
|
|
Field of View (Horizontal):
|
187
|
|
Identify (ft):
|
11.48
|
|
Languages:
|
English
Spanish
|
|
Lens Angle Type:
|
Ultra Wide Lens
Panoramic
|
|
Lens Size:
|
1.08mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Material:
|
Aluminum
Hard-coated poly-carbonate
|
|
Max Power Consumption:
|
12.95 Watts
|
|
Max. FPS and Resolution:
|
30fps at 3000 x 3000
|
|
Max. Storage Capacity:
|
1 TB
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.39 lux
|
|
Mounting:
|
Ceiling Mount
|
|
Network Interface:
|
1x Rj-45 10/100 Base-T
|
|
Night Vision Range (ft):
|
38
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
SSNR V
|
|
Observe (ft):
|
45.60
|
|
Power Supply:
|
PoE (IEEE 802.3af)
12 VDC
|
|
Product Series:
|
Samsung Hanwha Wisenet X Series
|
|
Protection Code:
|
IP66
NEMA 4X
IK10
|
|
RAM:
|
4GB
|
|
Recognize (ft):
|
22.96
|
|
Resolution:
|
12MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.3"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/5-1/12000s
|
|
Special Technologies:
|
Hanwha WiseStream II
|
|
Specialized Camera Feature:
|
Onboard Dewarping
|
|
Technology:
|
Network (IP)
|
|
Video Output:
|
1x CVBS
1x Micro USB Type B
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
