Description

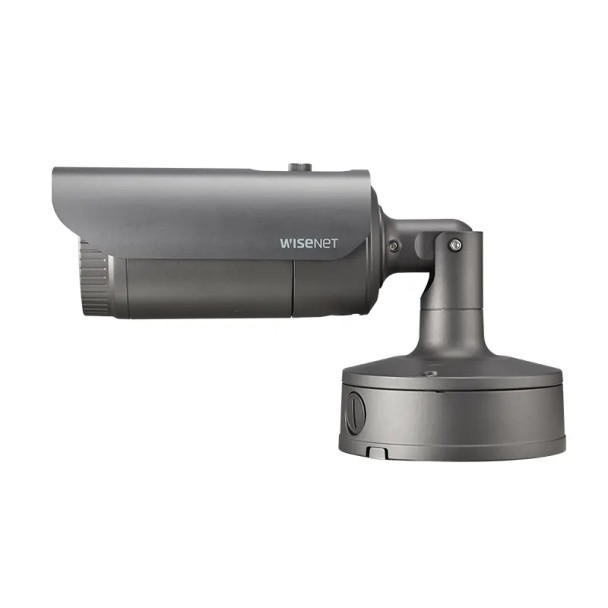

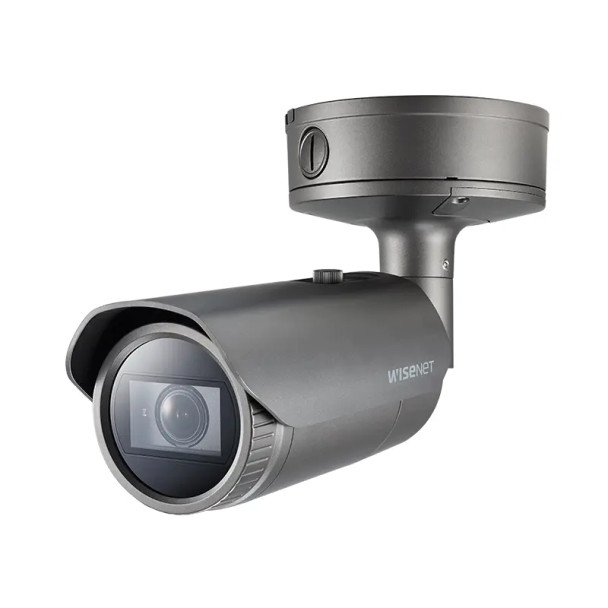

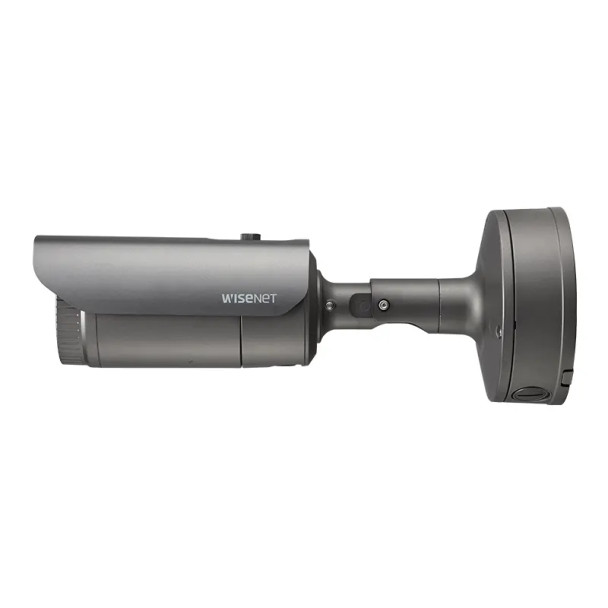

Samsung Hanwha XNO-8082R 6MP Night Vision Outdoor Bullet IP Security Camera, 2.8~8.4mm Motorized Lens
Key Features:
- 6MP (3328x1872) resolution
- 2.8 ~ 8.4mm (3x) motorized varifocal lens
- 30fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), extremeWDR, Defog
- Loitering, directional detection, fog detection, audio detection, Face/upper body detection, digital auto tracking, sound classification, tampering
- Motion detection, Handover, audio event playback
- Dual SD/SDHC/SDXC memory slots (Total Maximum 512GB)
- Hallway view, WiseStream II support
- IR viewable length 50m, IP67/IP66, NEMA 4X, IK10
- LDC support (Lens Distortion Correction)
- PoE / 24V AC, 12V DC, bi-directional audio support
- 2 configurable I/O ports
Downloads
Quick Start Guide
Hanwha-Techwin-(Samsung)-XNO-8082R-Quick-Start-Guide-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm I/O:
|
2x Configurable I/O Ports
|
|
Analytics:
|
People Counting
Motion Detection
Audio Detection
|
|
Aperture:
|
F1.2
F2.8
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
G.711ulaw
G.726
ADPCM
AAC-LC
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Bullet
|
|
Certifications:
|
UL Listed
|
|
Color:
|
Dark Gray
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
SUNAPI
Wisenet open platform
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
ICR (True Day/Night)
|
|
Detect (ft):
|
163.71
688.65
|
|
Dimensions:
|
91 x 368.6 mm (3.58 x 14.51 in)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
114
40.2
|
|
IR Corrected:
|
IR Corrected
|
|
Identify (ft):
|
16.4
68.9
|
|
Image Enhancements:
|
Lens Distortion Correction (LDC)
|
|
Image Settings:
|
Hallway View
|
|
Iris:
|
Auto (DC-iris)
P-iris
|
|
Languages:
|
English
Korean
Chinese
French
Italian
Spanish
German
Japanese
Russian
Swedish
Portuguese
Czech
Polish
Turkish
Dutch
Greek
Hungarian
|
|
Lens Size:
|
2.8~8.4mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
12.95 Watts
|
|
Max. FPS and Resolution:
|
30fps at 3328 x 1872
|
|
Max. Storage Capacity:
|
512 GB
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.05 Lux
|
|
Network Interface:
|
1x RJ-45 10/100/1000 Base-T
|
|
Night Vision Range (ft):
|
131
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
SSNR V
|
|
Observe (ft):
|
65.29
275.26
|
|
Optical Zoom:
|
3x Optical Zoom
|
|
Power Supply:
|
PoE (IEEE 802.3af)
12 VDC
24 VAC
|
|
Product Series:
|
Samsung Hanwha Wisenet X Series
|
|
Protection Code:
|
IP66
IP67
IK10
NEMA 4X
|
|
RAM:
|
4GB
|
|
Recognize (ft):
|
32.8
137.8
|
|
Resolution:
|
6MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/5-1/12000s
|
|
Special Technologies:
|
Hanwha WiseStream II
|
|
Technology:
|
Network (IP)
|
|
Video Output:
|
1x CVBS
1x Micro USB Type B
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
