Description

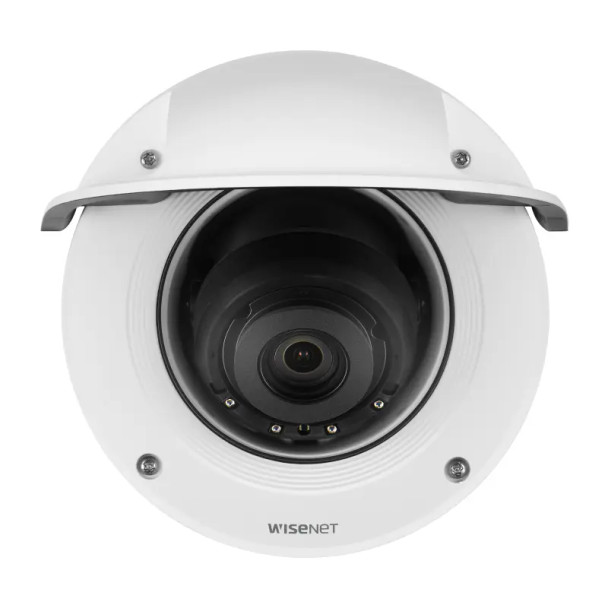

Samsung Hanwha XNV-8081RE 5MP Night Vision Indoor Dome IP Security Camera with PoE Extender, 3.4~9.4mm Motorized Lens
Key Features:
- 5 megapixel resolution
- 2.4x (3.9~9.4mm) motorized varifocal lens
- 164 foot IR viewable range for low light/no light monitoring
- 30fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (120dB), Defog
- Shock detection, Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Tampering
- Motion detection, Handover, Audio event playback
- Dual SD/SDHC/SDXC memory slots (Max. 512GB)
- Hallway view, WiseStream II support, IP67/IP66/IP6K9K, IK10+, NEMA 4X
- LDC support (Lens Distortion Correction)
- PoE+ In / PoE Out,, Bi-directional audio support
- White camera body
- Weathercap included
Downloads
Quick Start Guide
Hanwha-Techwin-(Samsung)-XNV-8081RE-Quick-Start-Guide-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Aperture:
|
F1.3
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711ulaw
G.726
ADPCM
AAC-LC
G.711
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Built-in Analytics:
|
Built-in Analytics
|
|
Camera Style:
|
Dome
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
SUNAPI
Wisenet open platform
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
Auto
|
|
Detect (ft):
|
162.07
479
|
|
Dimensions:
|
180 x 125 mm (7.09 x 4.92 in)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Indoor
|
|
Field of View (Horizontal):
|
92.1
38.7
|
|
Identify (ft):
|
49.21
16.08
|
|
Iris:
|
Auto (DC-iris)
P-iris
|
|
Languages:
|
English
Korean
Chinese
French
Italian
Spanish
German
Japanese
Russian
Swedish
Portuguese
Czech
Polish
Turkish
Dutch
Hungarian
Greek
|
|
Lens Size:
|
3.9~9.4mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
10.2 Watts
25.5 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2560 x 1920
|
|
Max. Storage Capacity:
|
512 GB
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.07 Lux
|
|
Mounting:
|
Wall Mount
Ceiling Mount
Pole Mount
|
|
NDAA Compliance:
|
NDAA Compliant
|
|
Network Interface:
|
2x RJ-45 10/100 Mbps
|
|
Night Vision Range (ft):
|
164
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
SSNR V
|
|
Number of PoE Ports:
|
1 PoE Port
|
|
Observe (ft):
|
64.63
190.29
|
|
Optical Zoom:
|
2.4x Optical Zoom
|
|
Power Budget:
|
13 Watt
|
|
Power Supply:
|
PoE+ (IEEE802.3at Class 4)
|
|
Product Series:
|
Samsung Hanwha Wisenet X Series
|
|
Protection Code:
|
IP66
IP67
IP6K9K
NEMA 4X
IK10 Plus
|
|
RAM:
|
1GB
|
|
Recognize (ft):
|
32.48
95.14
|
|
Resolution:
|
5MP (3K)
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
2-1/12000s
|
|
Special Technologies:
|
Hanwha WiseStream II
Hallway View
|
|
Specialized Camera Feature:
|
PoE Extender Camera
People Counting
|
|
Storage Humidity:
|
0% to 90% RH
|
|
Storage Temperature:
|
-50 °C to 60 °C (-58 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Video Output:
|
1x CVBS
1x Micro USB Type B
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
