Description

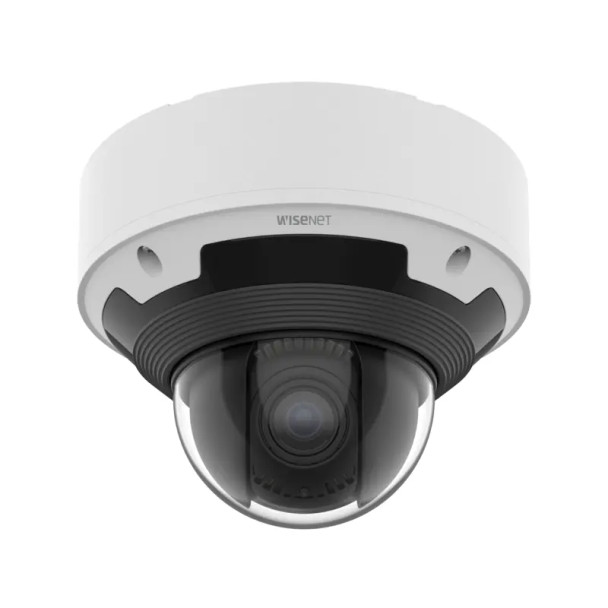

Samsung Hanwha XNV-8083RZ 6MP Night Vision Outdoor Dome PTRZ IP Security Camera with AI, 4.4~9.3mm Motorized Lens
Key Features:
- 6MP resolution
- 4.4~9.3mm (2.1x) motorized varifocal
- Remote lens adjustment with PTRZ
- Color: 0.03Lux(F1.3, 1/30sec, 30IRE), BW - 0Lux(IR LED on)
- Maximum 30 fps (H.265/H.264)
- IR viewable length: 15m (49.21ft), 30m(98.43ft) based on scene
- Day & Night (ICR), extremeWDR (120 dB)
- Hard-coated dome bubble
- WiseNR(Based on AI engine), WiseStream III(Based on AI engine)
- Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate)
- IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
- Analytics events : Defocus detection, Motion detection, Tampering, Fog detection
- Audio detection, Sound classification, Shock detection, Appear/Disappear
- IP66/IP67/IP6K9K, NEMA4X, IK10+, FIPS 140-2
- Operating temperature: -50°C~+55°C(-58°F ~ +131°F)
- Power: PoE+/12VDC, Metal shielded RJ-45
Downloads
Quick Start Guide
Hanwha-Techwin-(Samsung)-XNV-6083RZ-Quick-Start-Guide-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Analytics:
|
Intelligent Video Analysis (IVA)
Motion Detection
Audio Detection
Object Detection
|
|
Aperture:
|
F1.3
F2.15
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
UL Listed
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile M
ONVIF Profile S
ONVIF Profile T
SUNAPI
Wisenet open platform
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
Auto
Day (Color)
Night (B/W)
|
|
Detect (ft):
|
144.54
502.22
|
|
Dimensions:
|
180 x 135 mm (7.09 x 5.31 in)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
113
47
|
|
IR Corrected:
|
IR Corrected
|
|
Identify (ft):
|
14.45
50.22
|
|
Image Settings:
|
Corridor Format
Hallway View
|
|
Iris:
|
P-iris
|
|
Lens Size:
|
4.4~9.3mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Material:
|
Aluminum
Hard-coated poly-carbonate
|
|
Max Power Consumption:
|
22.5 Watts
|
|
Max. FPS and Resolution:
|
30fps at 3328 x 1872
|
|
Max. Storage Capacity:
|
1 TB
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.03 Lux
|
|
Mounting:
|
Wall Mount
Ceiling Mount
Corner Mount
Pole Mount
|
|
Network Interface:
|
1x RJ-45 10/100/1000 Mbps
|
|
Night Vision Range (ft):
|
98
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
WiseNR Ⅱ
SSNR V
|
|
Observe (ft):
|
57.82
200.89
|
|
Optical Zoom:
|
2.1x Optical Zoom
|
|
Power Supply:
|
PoE+ (IEEE802.3at)
|
|
Product Series:
|
Samsung Hanwha Wisenet X Series
|
|
Protection Code:
|
IP66
IP67
IP6K9K
IK10 Plus
NEMA 4X
|
|
RAM:
|
4GB
|
|
Recognize (ft):
|
28.91
100.44
|
|
Resolution:
|
6MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
2-1/12000s
|
|
Special Technologies:
|
Hanwha WiseStream II
Hanwha WiseStream III
|
|
Specialized Camera Feature:
|
Artificial Intelligence (AI)
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
