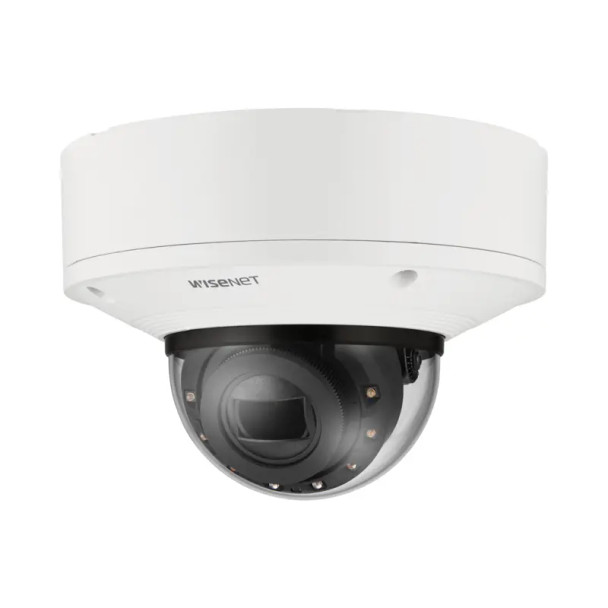

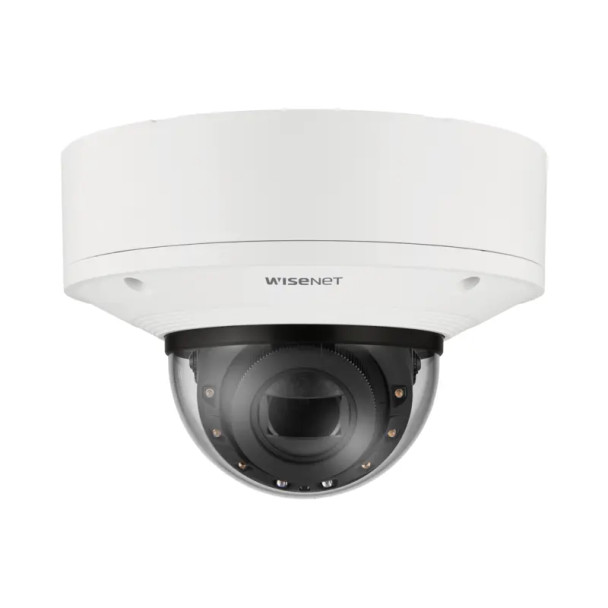

Samsung Hanwha XNV-9083R 8MP 4K Night Vision Outdoor Dome IP Security Camera with AI, 4.4~9.3mm Motorized Lens

Name: Samsung Hanwha XNV-9083R 8MP 4K Night Vision Outdoor Dome IP Security Camera with AI, 4.4~9.3mm Motorized Lens
Brand: Hanwha Vision (Samsung Techwin)
SKU: XNV-9083R
Price: 1438.00 USD
Availability: InStock

Brand: Hanwha Vision (Samsung Techwin)

Part Number: XNV-9083R

Write a Review

$1,438.00

✅ Help me pick a security camera

Free Shipping

Technical Support

3 Year Warranty

Key Features:

Compression : H.265, H.264, MJPEG,
Field of View (Horizontal) : 112.1°Field of View 47.5°Field of View
Max. FPS and Resolution : 30fps at 3840 x 2160 (4K)
Lens Type : Motorized (Automatic Zoom) Lens
Lens Size : 4.4~9.3mm Lens
Sensor Type : CMOS
Sensor Size : 1/1.8" Sensor
Video Output : 1x CVBS
Max. Storage Capacity : 1 TB Storage Capacity
Protection Code : IP66 IP67 IP6K9K NEMA 4X IK10 Plus
Color : White
Material : Aluminum Hard-coated poly-carbonate
Environmental : Outdoor
Sensor Size : 1/1.8"
Aperture : F1.3 F2.15
IR Corrected : IR Corrected

Description
Compatible products
Additional Information
Q&A

Description

Samsung Hanwha XNV-9083R 8MP 4K Night Vision Outdoor Dome IP Security Camera with AI, 4.4~9.3mm Motorized Lens

Key Features:

4K resolution
4.4~9.3mm (2.1x) motorized varifocal
Color: 0.04 Lux (F1.3, 1/30sec, 30IRE), 0 Lux (IR LED on)
Maximum 30 fps (H.265/H.264)
WiseIR: IR viewable length 50 m (164.04 ft)
Day & Night (ICR), extremeWDR (120 dB)
Hard-coated dome bubble
WiseNR(Based on AI engine), WiseStream III(Based on AI engine)
Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate)
IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
Analytics events : Defocus detection, Motion detection, Tampering, Fog detection
Audio detection, Sound classification, Shock detection, Appear/Disappear
IP66/IP67/IP6K9K, NEMA4X, IK10+

Downloads

Datasheet Hanwha-Techwin-(Samsung)-XNV-9083R-Datasheet-A1

Quick Start Guide Hanwha-Techwin-(Samsung)-XNV-9083R-Quick-Start-Guide-A1

User Manual Hanwha-Techwin-(Samsung)-XNV-9083R-User-Manual-A1

Popular Search

Samsung Hanwha Security Cameras

Outdoor Security Cameras

Samsung Hanwha IP Security Cameras

Samsung Hanwha Wisenet X Series

Hanwha Vision Security Cameras

Hanwha Vision IP Security Cameras

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Alarm I/O:	2x Configurable I/O Ports
Aperture:	F1.3 F2.15
Audio Capability:	Two-Way Audio
Audio Compression:	G.711ulaw G.726 G.711 ADPCM AAC-LC
Audio Input:	1x Channel
Audio Output:	1x Channel
Built-in Analytics:	Built-in Analytics
Camera Style:	Dome
Certifications:	UL Listed
Color:	White
Compatible Integration (API):	ONVIF Profile G ONVIF Profile S ONVIF Profile T SUNAPI Wisenet open platform
Compression:	H.265 H.264 MJPEG
Connection Type:	Wired
Day/Night:	Auto ICR (True Day/Night)
Detect (ft):	169.64 572.64
Dimensions:	180 x 125 mm (7.09 x 4.92 in)
Durability:	Vandal Proof Weatherproof
Environmental:	Outdoor
Field of View (Horizontal):	112.1 47.5
IR Corrected:	IR Corrected
Identify (ft):	16.96 57.26
Iris:	P-iris
Languages:	English Spanish
Lens Size:	4.4~9.3mm
Lens Type:	Motorized (Automatic Zoom) Lens
Material:	Aluminum Hard-coated poly-carbonate
Max Power Consumption:	22.5 Watts
Max. FPS and Resolution:	30fps at 3840 x 2160 (4K)
Max. Storage Capacity:	1 TB
Minimum Illumination (B/W):	0 lux
Minimum Illumination (Color):	0.04 Lux
Mounting:	Ceiling Mount Pole Mount Corner Mount Wall Mount
NDAA Compliance:	NDAA Compliant
Network Interface:	1x RJ-45 10/100/1000 Base-T
Night Vision Range (ft):	164
Night Vision Type:	Night Vision (IR)
Noise Reduction:	SSNR V WiseNR Ⅱ
Observe (ft):	67.85 229.06
Operating Humidity:	0% to 95% RH (non-condensing)
Operating Temperature:	-50 °C to 55 °C (-58 °F to 131 °F)
Optical Zoom:	2.1x Optical Zoom
Power Supply:	PoE+ (IEEE802.3at Class 4) 12 VDC
Product Series:	Samsung Hanwha Wisenet X Series
Protection Code:	IP66 IP67 IP6K9K NEMA 4X IK10 Plus
RAM:	4GB
Recognize (ft):	33.93 114.53
Resolution:	8MP (4K)
SD Card Support:	SD Card Supported
Sensor Size:	1/1.8"
Sensor Type:	CMOS
Shutter Speed:	2-1/12000s
Special Technologies:	Hanwha WiseStream II LDC (Lens Distortion Correction) IVA (Intelligent Video Analytics) WiseStream III Hallway View
Specialized Camera Feature:	Artificial Intelligence (AI)
Technology:	Network (IP)
USB Interface:	1x Micro USB
Video Output:	1x CVBS
Warranty:	3-year Manufacturer Warranty
Wavelength (nm):	850
Wide Dynamic Range (WDR):	True WDR 120dB
