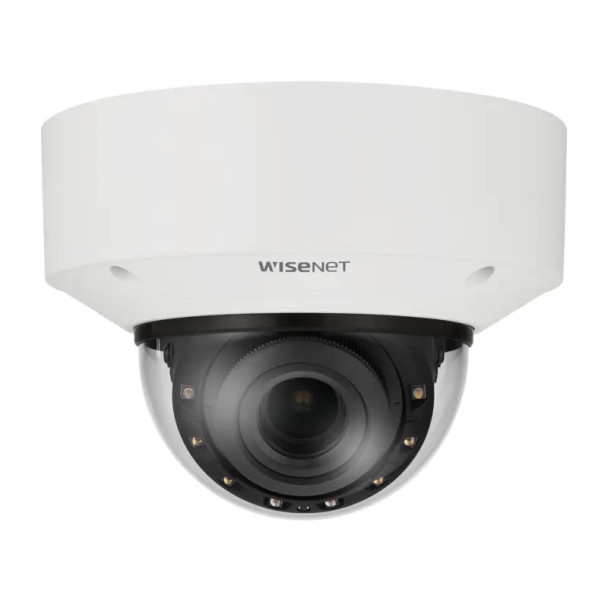

Samsung Hanwha XNV-C7083R 4MP Night Vision Outdoor Dome IP Security Camera with AI, 2.8~10mm Motorized Lens

Name: Samsung Hanwha XNV-C7083R 4MP Night Vision Outdoor Dome IP Security Camera with AI, 2.8~10mm Motorized Lens
Brand: Hanwha Vision (Samsung Techwin)
SKU: XNV-C7083R
Price: 1043.00 USD
Availability: InStock

Brand: Hanwha Vision (Samsung Techwin)

Part Number: XNV-C7083R

Write a Review

$1,043.00

✅ Help me pick a security camera

Free Shipping

Fast Shipping

Technical Support

3 Year Warranty

Key Features:

Compression : H.265, H.264, MJPEG,
Field of View (Horizontal) : 109.7°Field of View 30.4°Field of View
Max. FPS and Resolution : 60fps at 2592 x 1520
Lens Type : Motorized (Automatic Zoom) Lens
Lens Size : 2.8~10mm Lens
Sensor Type : CMOS
Sensor Size : 1/2.8" Sensor
Video Output : 1x CVBS
Max. Storage Capacity : 512 GB Storage Capacity
Protection Code : IP66 IP67 NEMA 4X IK10
Color : White
Material : Aluminum Hard-coated poly-carbonate
Environmental : Outdoor
Sensor Size : 1/2.8"
Aperture : F1.4 F3.0
IR Corrected : IR Corrected

Description
Compatible products
Additional Information
Q&A

Description

Samsung Hanwha XNV-C7083R 4MP Night Vision Outdoor Dome IP Security Camera with AI, 2.8~10mm Motorized Lens

Key Features:

4MP resolution
2.8~10mm (3.6x) motorized varifocal
Color: 0.038 Lux (F1.4, 1/30sec, 30IRE), 0 Lux (IR LED on)
Maximum 60 fps (H.265/H.264)
WiseIR: IR viewable length 40 m (131.23 ft)
Day & Night (ICR), extremeWDR (120 dB)
Hard-coated dome bubble
WiseNR(Based on AI engine), WiseStream III(Based on AI engine)
Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate)
IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
Analytics events : Defocus detection, Motion detection, Tampering, Fog detection
Audio detection, Sound classification, Shock detection, Appear/Disappear
IP66, IP67, NEMA4X, IK10

Downloads

Datasheet Hanwha-Techwin-(Samsung)-XNV-C7083R-Datasheet-A1

Quick Start Guide Hanwha-Techwin-(Samsung)-XNV-C7083R-Quick-Start-Guide-A1

User Manual Hanwha-Techwin-(Samsung)-XNV-C7083R-User-Manual-A1

Firmware Hanwha-Vision-(Samsung-Techwin)-XNV-C7083R-Firmware-A1

Popular Search

Samsung Hanwha Security Cameras

Outdoor Security Cameras

Samsung Hanwha IP Security Cameras

Samsung Hanwha Wisenet X Series

Hanwha Vision Security Cameras

Hanwha Vision IP Security Cameras

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Alarm I/O:	2x Configurable I/O Ports
Aperture:	F1.4 F3.0
Audio Capability:	Two-Way Audio
Audio Compression:	G.711ulaw G.726 G.711 ADPCM AAC-LC
Audio Input:	1x Channel
Audio Output:	1x Channel
Built-in Analytics:	Built-in Analytics
Camera Style:	Dome
Certifications:	UL Listed
Color:	White
Compatible Integration (API):	ONVIF Profile G ONVIF Profile S ONVIF Profile T SUNAPI Wisenet open platform
Compression:	H.265 H.264 MJPEG
Connection Type:	Wired
Day/Night:	Auto ICR (True Day/Night)
Detect (ft):	119.76 603.05
Dimensions:	160 x 118 mm (6.30 x 4.65 in)
Durability:	Vandal Proof Weatherproof
Environmental:	Outdoor
Field of View (Horizontal):	109.7 30.4
IR Corrected:	IR Corrected
Identify (ft):	11.98 60.31
Iris:	Auto (DC-iris)
Languages:	English Spanish
Lens Size:	2.8~10mm
Lens Type:	Motorized (Automatic Zoom) Lens
Material:	Aluminum Hard-coated poly-carbonate
Max Power Consumption:	12.95 Watts
Max. FPS and Resolution:	60fps at 2592 x 1520
Max. Storage Capacity:	512 GB
Minimum Illumination (B/W):	0 lux
Minimum Illumination (Color):	0.038 lux

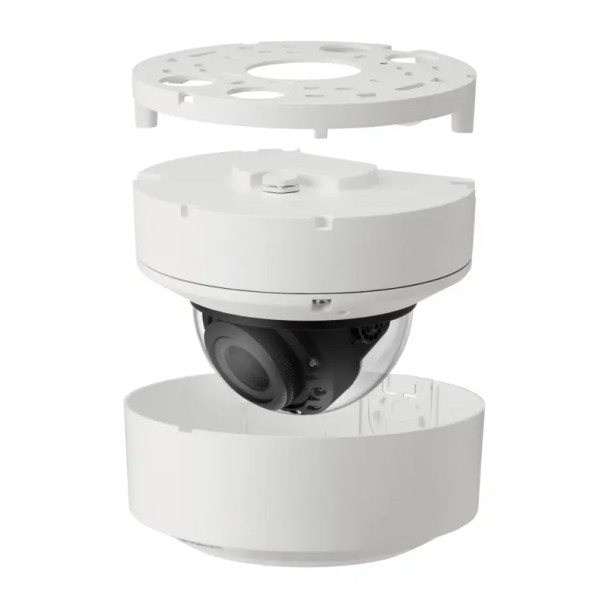

Mounting:	Ceiling Mount Pole Mount Corner Mount Wall Mount
NDAA Compliance:	NDAA Compliant
Network Interface:	1x Rj-45 10/100 Base-T
Night Vision Range (ft):	131.23
Night Vision Type:	Night Vision (IR)
Noise Reduction:	SSNR V WiseNR Ⅱ
Observe (ft):	47.9 241.22
Operating Humidity:	0% to 95% RH (non-condensing)
Operating Temperature:	-40 °C to 55 °C (-40 °F to 131 °F)
Optical Zoom:	3.6x Optical Zoom
Power Supply:	12 VDC PoE (IEEE 802.3af)
Product Series:	Samsung Hanwha Wisenet X Series
Protection Code:	IP66 IP67 NEMA 4X IK10
RAM:	2GB
Recognize (ft):	23.95 120.61
Resolution:	4MP
SD Card Support:	SD Card Supported
Sensor Size:	1/2.8"
Sensor Type:	CMOS
Shutter Speed:	2-1/12000s
Special Technologies:	Hanwha WiseStream II LDC (Lens Distortion Correction) IVA (Intelligent Video Analytics) WiseStream III Hallway View
Specialized Camera Feature:	Artificial Intelligence (AI)
Technology:	Network (IP)
USB Interface:	1x Micro USB
Video Output:	1x CVBS
Warranty:	3-year Manufacturer Warranty
Wavelength (nm):	850
Wide Dynamic Range (WDR):	True WDR 120dB
